Description
(2026 Upgraded version)

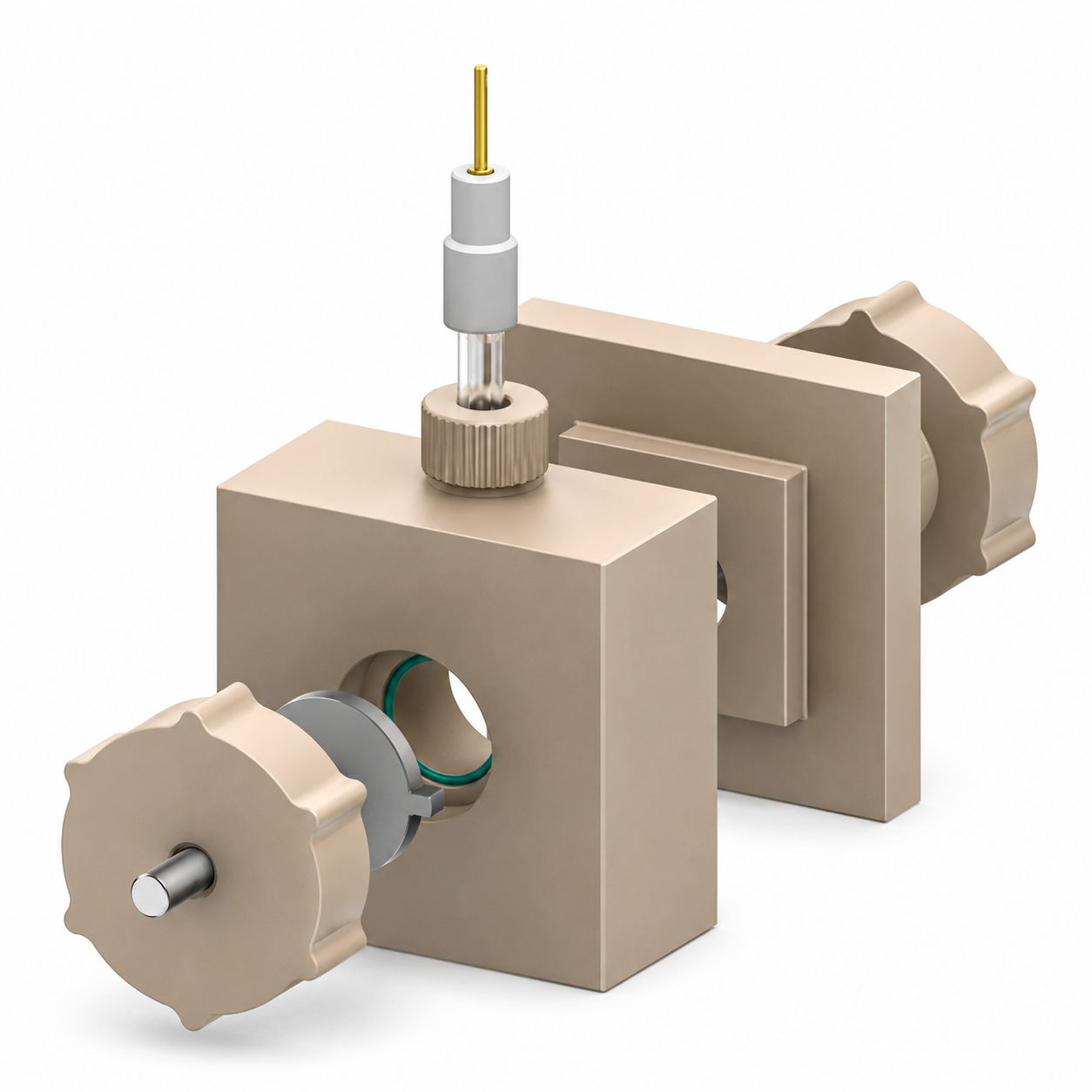

The B005-2 is an enhanced version of the B005-1 featuring an integrated membrane compartment between the working and counter electrodes. The design supports studies involving separator materials and membrane-assisted electrochemical systems.
Applications
- Separator Evaluation
- Battery Material Screening
- Membrane-Based Electrochemical Studies
- Early-Stage Cell Development
Features
- Replaceable Membrane Design: Supports separator and membrane performance evaluation
- Three-Electrode Configuration enables independent electrochemical measurements
- Silver/Silver Chloride Reference Electrode provides stable reference potential
- PEEK Construction ensures excellent chemical compatibility
Specifications
- Cell body material: PEEK
- Current collector tab: Titanium
- Reference electrode: Ag/AgCl (Ø2 mm)
- Compatible sample size: Ø20 mm circular disk (customizable)
- Electrode spacing: 5 mm
- Electrolyte volume: < 1 mL
