Description
(2026 Upgraded version)
The B003-LR is an upgraded version of the B002 featuring independent reference electrode monitoring. By incorporating a dedicated reference electrode circuit, it enables precise electrode potential measurements and advanced electrochemical studies beyond conventional two-electrode testing.
Applications
- Three-Electrode Electrochemical Testing
- Electrode Potential Monitoring
- Battery Material Evaluation
- Electrochemical Mechanism Studies
Features
- Integrated Reference Electrode: Enables independent potential measurement

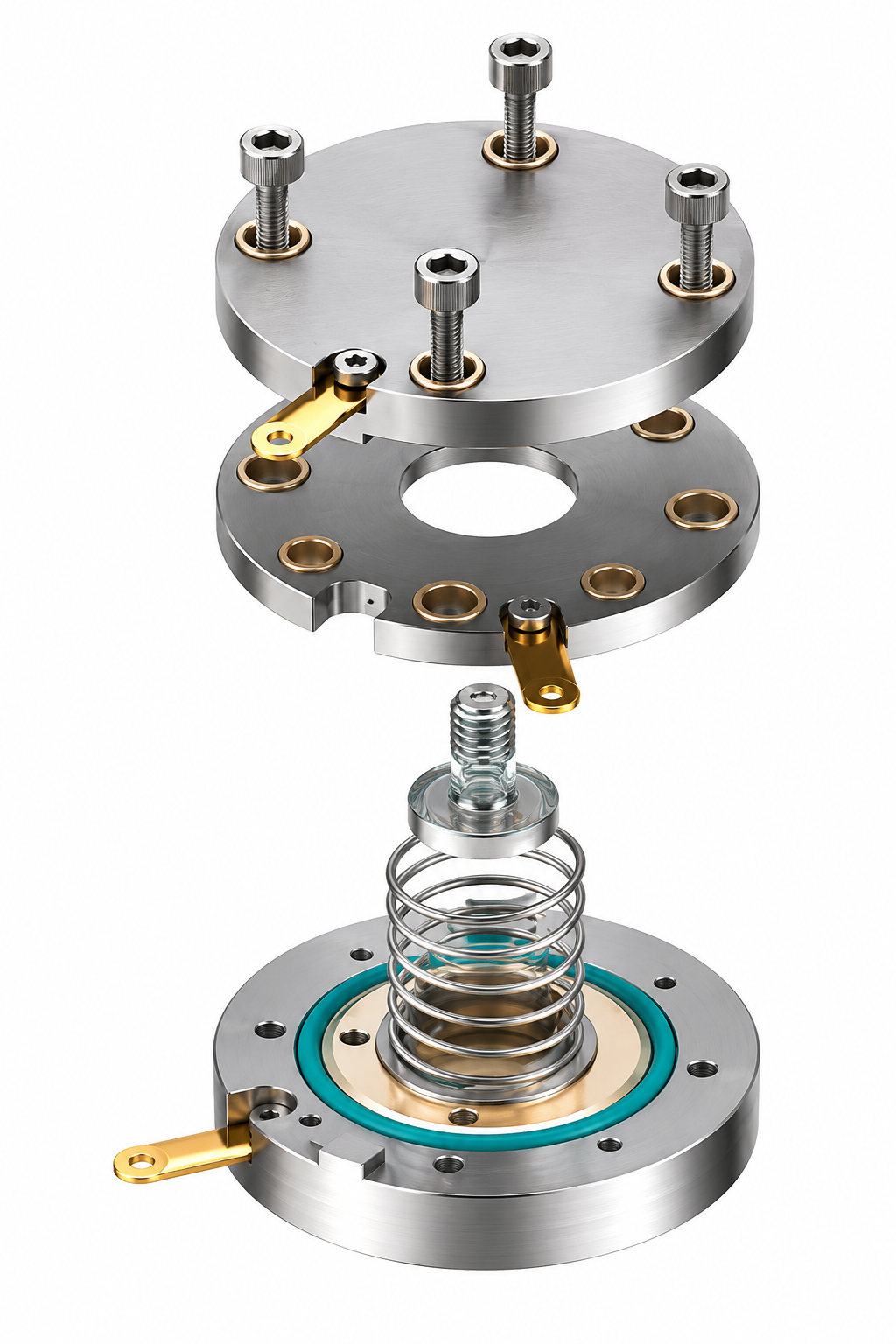

- Three-Collector Architecture: Separates working, counter, and reference electrodes
- Spring-Contact Reference Design: Provides reliable electrical connection
- Spring-Loaded Compression: Maintains consistent electrode pressure
Specifications
- Configuration: Three-electrode system
- Reference electrode: Lithium wire
- Cell body material: Titanium
- Insulation material: PEEK
- Cell body dimensions: Ø70 mm × H24 mm
- Compatible sample diameter: 20 mm
