Description
(2026 Upgraded version)

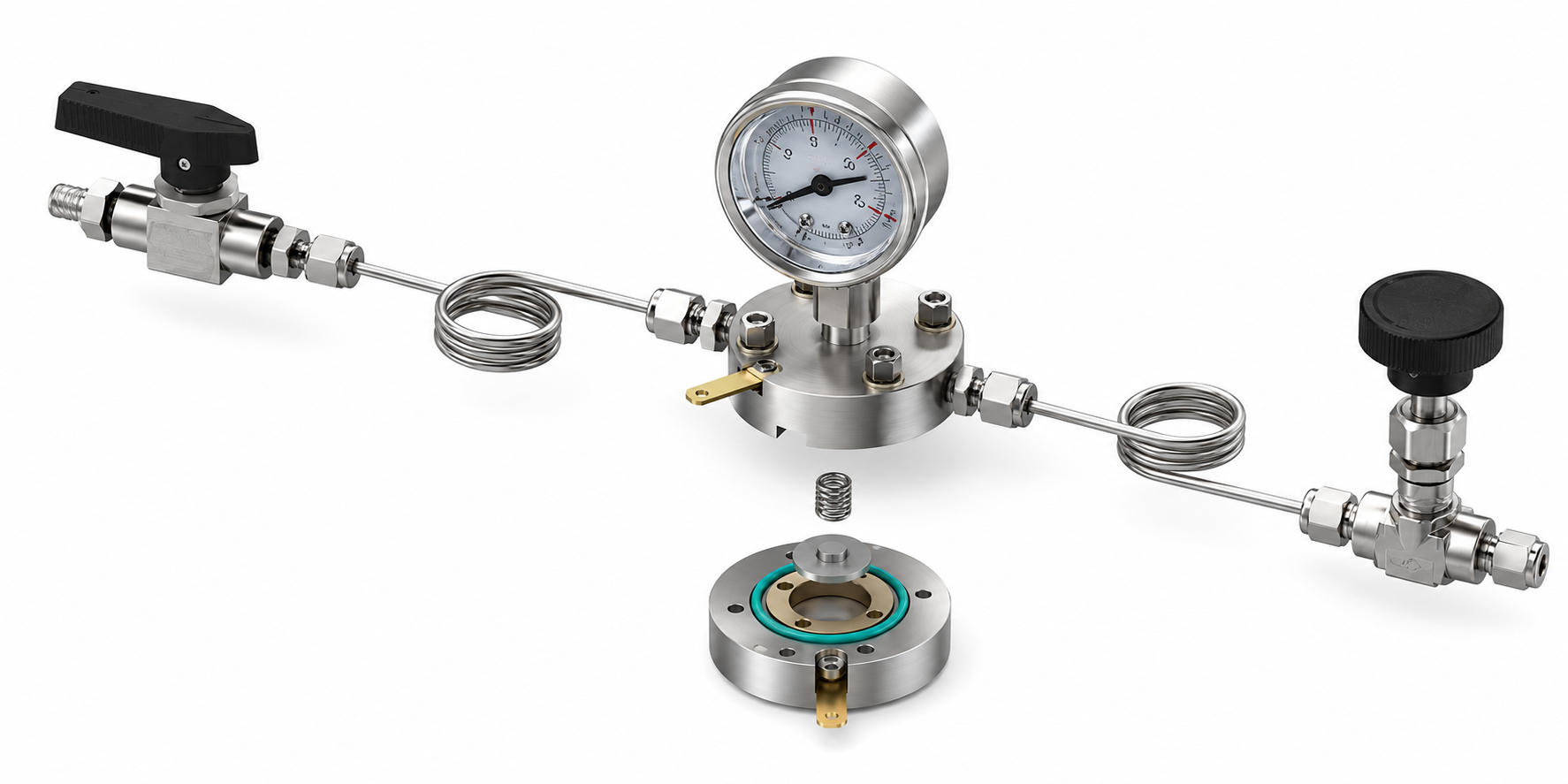

The PB003 is a pressurized battery test cell developed from the B003 platform. It integrates gas-pressure monitoring with independent reference electrode measurement, supporting advanced electrochemical studies under controlled pressure conditions.
Applications
- Pressurized Battery Testing
- Electrode Potential Monitoring
- Battery Material Evaluation
- Electrochemical Mechanism Studies
Features
- Pressurized Three-Electrode Design: Supports advanced testing under controlled gas pressure
- Lithium Wire Reference Electrode: Enables independent potential monitoring
- Integrated Pressure Gauge: Provides real-time pressure indication
- Spring-Loaded Compression: Allows adjustable stack loading during testing
Specifications
- Maximum Operating Pressure: 0.6 MPa (customizable)
- Body Material: Titanium
- Insulation Material: PEEK
- Current Collector: Gold-Plated Copper
- Reference Electrode: Lithium Wire
