Description
(2026 Upgraded version)

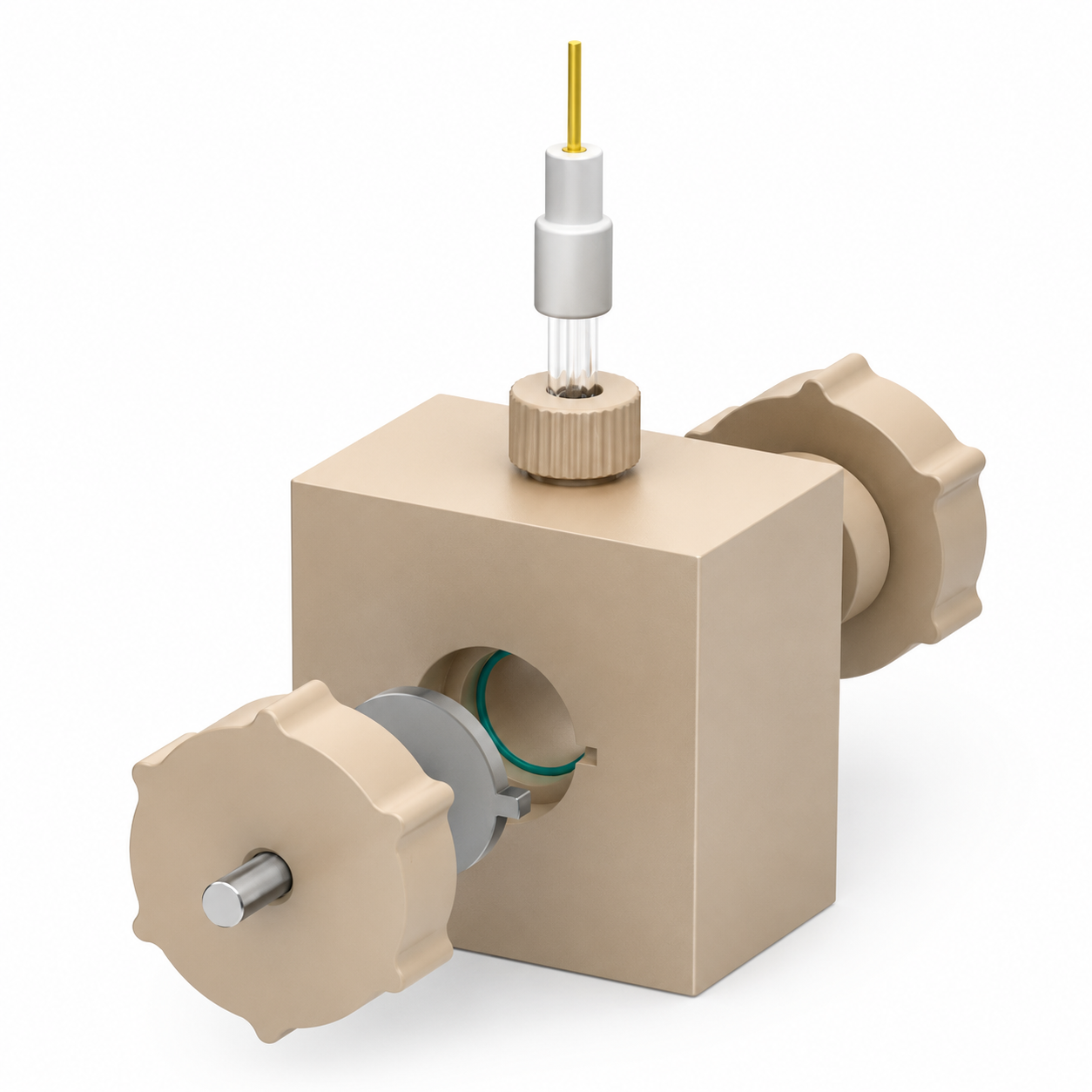

The B005-1 is a three-electrode electrochemical cell designed for early-stage evaluation of lithium-ion battery materials and components. Its compact architecture enables reliable electrode screening and electrochemical characterization during the initial stages of battery development.
Applications
- Battery Material Screening
- Electrode Evaluation
- Electrochemical Characterization
- Early-Stage Cell Development
Features
- Three-Electrode Configuration: Enables independent electrochemical measurements
- Ag/AgCl Reference Electrode provides stable reference potential
- PEEK Cell Body offers excellent chemical resistance
- Compact Electrolyte Volume reduces material consumption
Specifications
- Cell body material: PEEK
- Current collector tab: Titanium
- Reference electrode: Ag/AgCl (Ø2 mm)
- Compatible sample size: Ø20 mm circular disk (customizable)
- Electrode spacing: 5 mm
- Electrolyte volume: < 1 mL
