Description
(2026 Upgraded version)

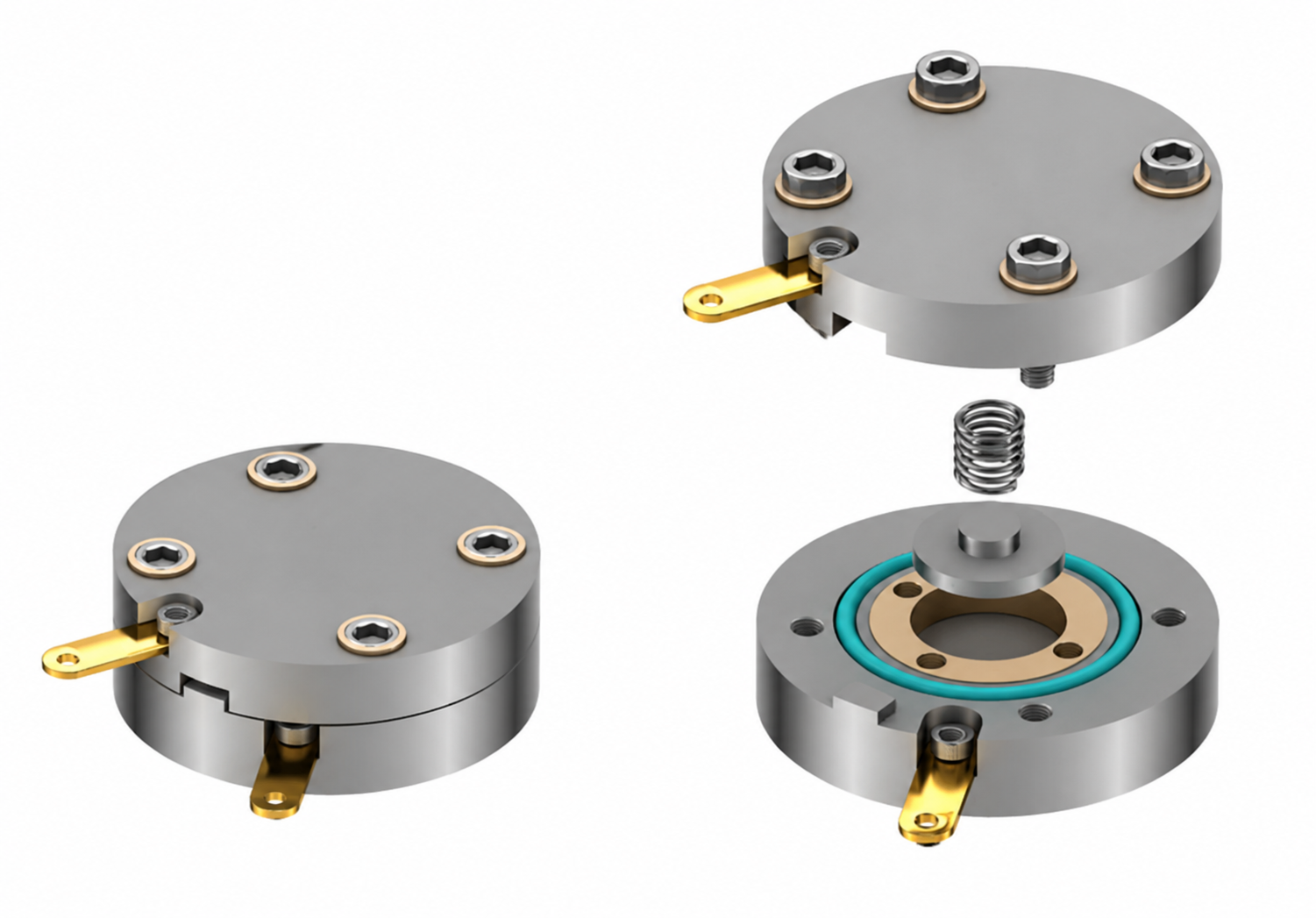

The B002 is a two-electrode evaluation cell designed for electrochemical testing of battery materials. Its titanium body, PEEK insulation, and spring-loaded structure provide reliable sealing, stable electrode contact, and repeatable performance for charge–discharge and cycling studies.
Applications
- Battery Material Evaluation
- Charge–Discharge Testing
- Cycling Performance Studies
- Electrochemical Characterization
Features
- Two-Electrode System: Supports standard electrode evaluation
- Spring-Loaded Compression: Allows load adjustment for testing
- O-Ring Sealing Design: Ensures reliable airtight sealing
- Easy Disassembly: Enables sample removal without damage
Specifications
- Body Material: Titanium
- Insulation Material: PEEK
- Current Collector: Gold-Plated Copper
- Sealing Method: Chemically Resistant O-Ring
