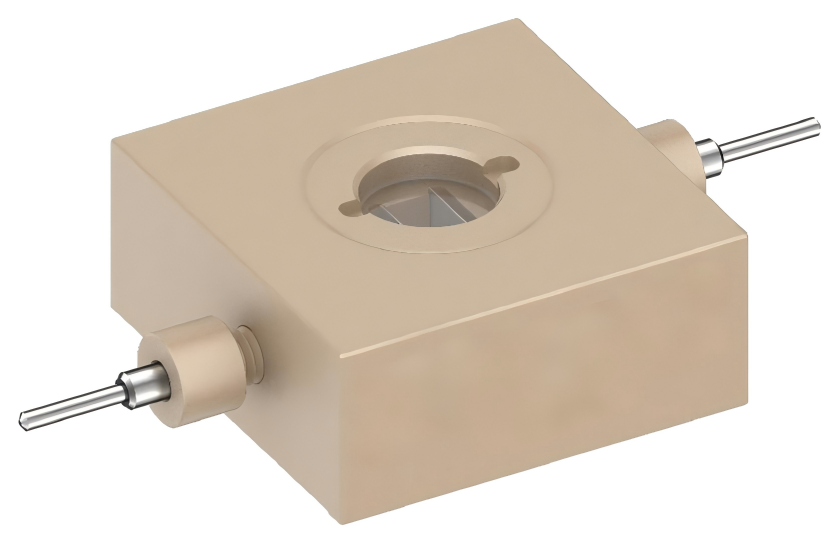

In-Situ Electrochemical Observation Cell (Dendrite Growth Study) Model: VI-2E

Description

(2026 Upgraded version)

The VI-2E is an in-situ electrochemical observation cell developed for direct visualization of dendrite growth during battery operation. Compared with the VI-T2E, it focuses on optical observation and simplified cell assembly without adjustable pressure loading.

Applications

• Dendrite Growth Observation
• Lithium Metal Research
• Fuel Cell Catalyst Evaluation
• In-Situ Electrochemical Studies

Features

• High-Transparency Quartz Window: Provides over 95% light transmission
• Observation Cell Design: Enables direct monitoring of dendrite formation
• Titanium Current Collector Base: Ensures reliable electrical conductivity
• Compact Structure: Simplifies assembly and operation

Specifications

• Conductive substrate: Titanium
• Optical window material: Sapphire
• Optical transmission: > 95%
• Electrode area: 10 × 10 mm
