Description
(2026 Upgraded version)

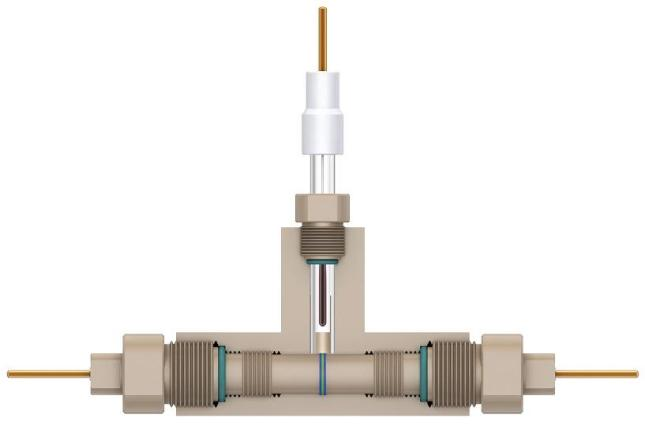

The B001-1 is a Swagelok-type three-electrode battery test cell designed for advanced electrochemical studies requiring independent reference electrode monitoring. It is ideal for investigating electrode behavior and reaction mechanisms during battery operation.
Applications
- Three-Electrode Electrochemical Testing
- Electrode Potential Monitoring
- Battery Mechanism Studies
- Coin Cell Simulation
Features
- Integrated Reference Electrode: Enables independent potential measurement
- Glassy Carbon Current Collector: Minimizes side reactions
- PEEK Construction: Provides excellent chemical resistance
- Adjustable Compression Design: Ensures reliable electrode contact
Specifications
- Configuration: Three-Electrode System
- Reference Electrode: Ag/AgCl
- Negative Current Collector: Glassy Carbon (GC-Φ3)
- Compatible Sample Diameter: 10 / 12 / 16 mm
