Description
Product Overview

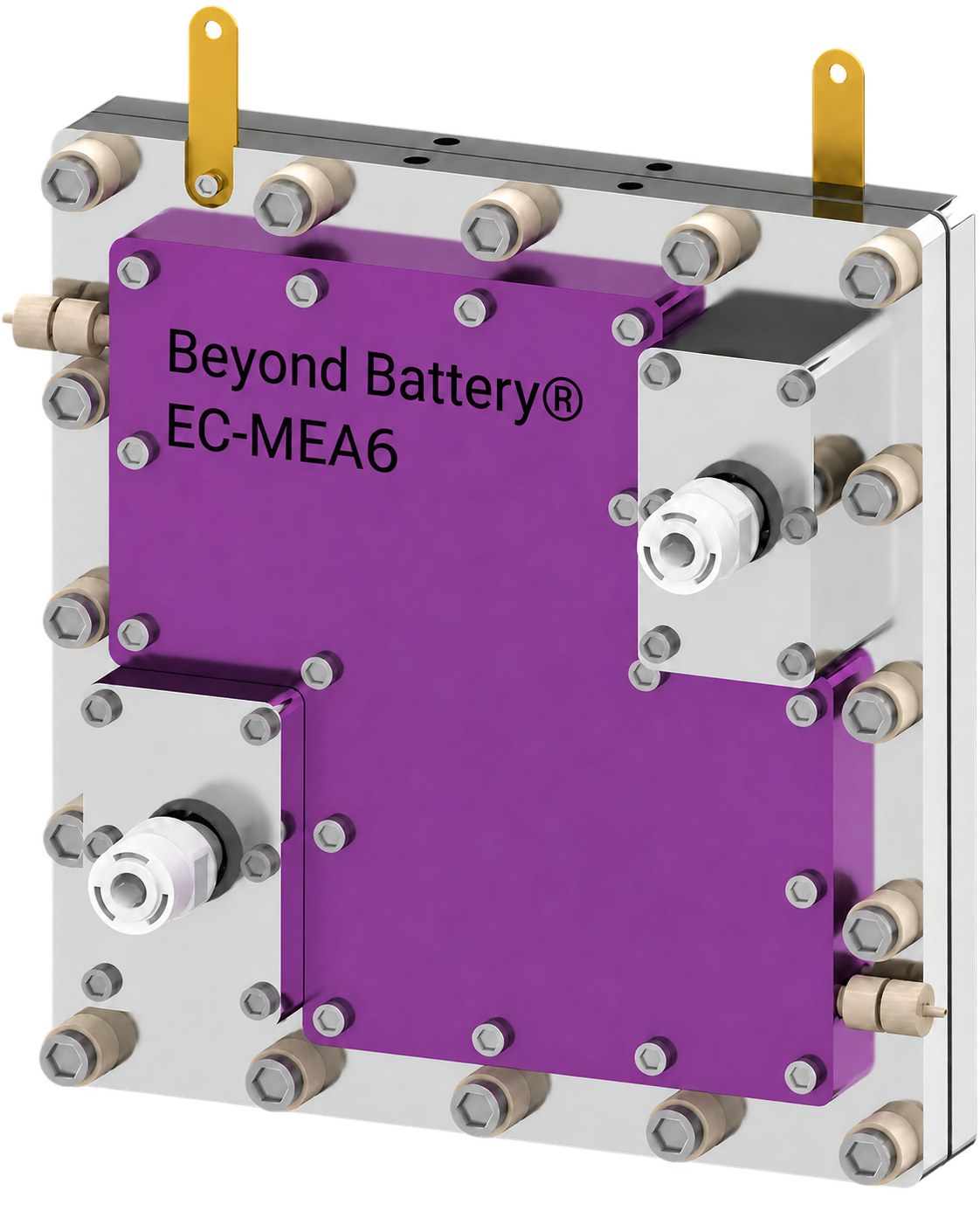

The EC-MEA6 is a large-area, temperature-controlled MEA electrolyzer featuring a purple thermal-control interlayer for heating and water cooling. Shear-enhanced multi-serpentine flow channels support reactant distribution and scalable electrolysis studies under controlled thermal conditions.
Key Features
- Integrated Thermal-Control Zone: The purple interlayer provides a dedicated thermal-control zone with heater rods for heating, thermocouples for temperature monitoring, and support for water cooling.
- Large-Area Titanium MEA Platform: High-purity titanium electrode plates provide a corrosion-resistant platform for large-area MEA testing and scale-up studies.
- Shear-Enhanced Serpentine Flow Field: Multi-serpentine return-flow channels promote reactant transport and flow distribution while helping reduce internal resistance.
Technical Specifications
| Chamber structure | Two-chamber |
| Electrode system | Two-electrode |
| Anode / cathode | Sheet-type electrodes |
| Flow-field area | 25, 100, or 400 cm² (square); customizable |
| Flow-field size | 50 × 50, 100 × 100 mm, or 200 × 200 mm; customizable |
| Flow-field configurations | Multi-serpentine return-flow channels; customizable |
| Flow-field plate material | Ti, Ni, PEEK optional |
| Temperature-control mode | Heating + water cooling |
| Temperature-control system | Thermocouples |
Instrument Compatibility
- Temperature-Control System Compatibility: Compatible with external heating and water-cooling circulation systems for temperature control of the integrated thermal-control zone.
- Potentiostat Compatibility: Compatible with two-electrode electrochemical workstations or power supplies suitable for large-area, high-current MEA testing.
Performance Validation
A 400 cm² MEA configuration was operated at 40 A with an Ag-NP cathode and an IrOₓ-ALK anode. The SGL 39BB+ configuration maintained stable cell voltage for approximately 300 h, highlighting the platform’s capability for large-area, high-current, and extended-duration electrolysis testing.
Related Published Application
Non-Isothermal Thermal Management in MEA CO₂ Electrolysis: Li et al. evaluated a custom two-electrode MEA CO₂ electrolyzer using TA-2 titanium plates with serpentine flow channels and internal water channels for heating and cooling. Under the non-isothermal 60 °C condition, the maximum CO partial current density reached 243.6 mA cm⁻², approximately 13% higher than the corresponding isothermal case. The thermal-management concept was further demonstrated in a 100 cm² device, where a stable 20 °C temperature difference was maintained.
Source: Li, J. et al. Nat. Commun. 2025, 16, 4181. CC BY-NC-ND 4.0.
Capabilities Relevant to the EC-MEA6
- Demonstrates temperature-controlled MEA operation using integrated heating and cooling channels.
- Illustrates the influence of thermal gradients on CO₂ electrolysis performance.
- Demonstrates scalability of thermal management to a 100 cm² MEA format.
Note: The cited publication used a custom-built MEA electrolyzer, not the EC-MEA6. Its thermal-management configuration is comparable and is included solely as a related application example.
