Gas Diffusion Electrochemical Cell (Intermediate Series), Model: EC-GDE3

Description

Product Overview

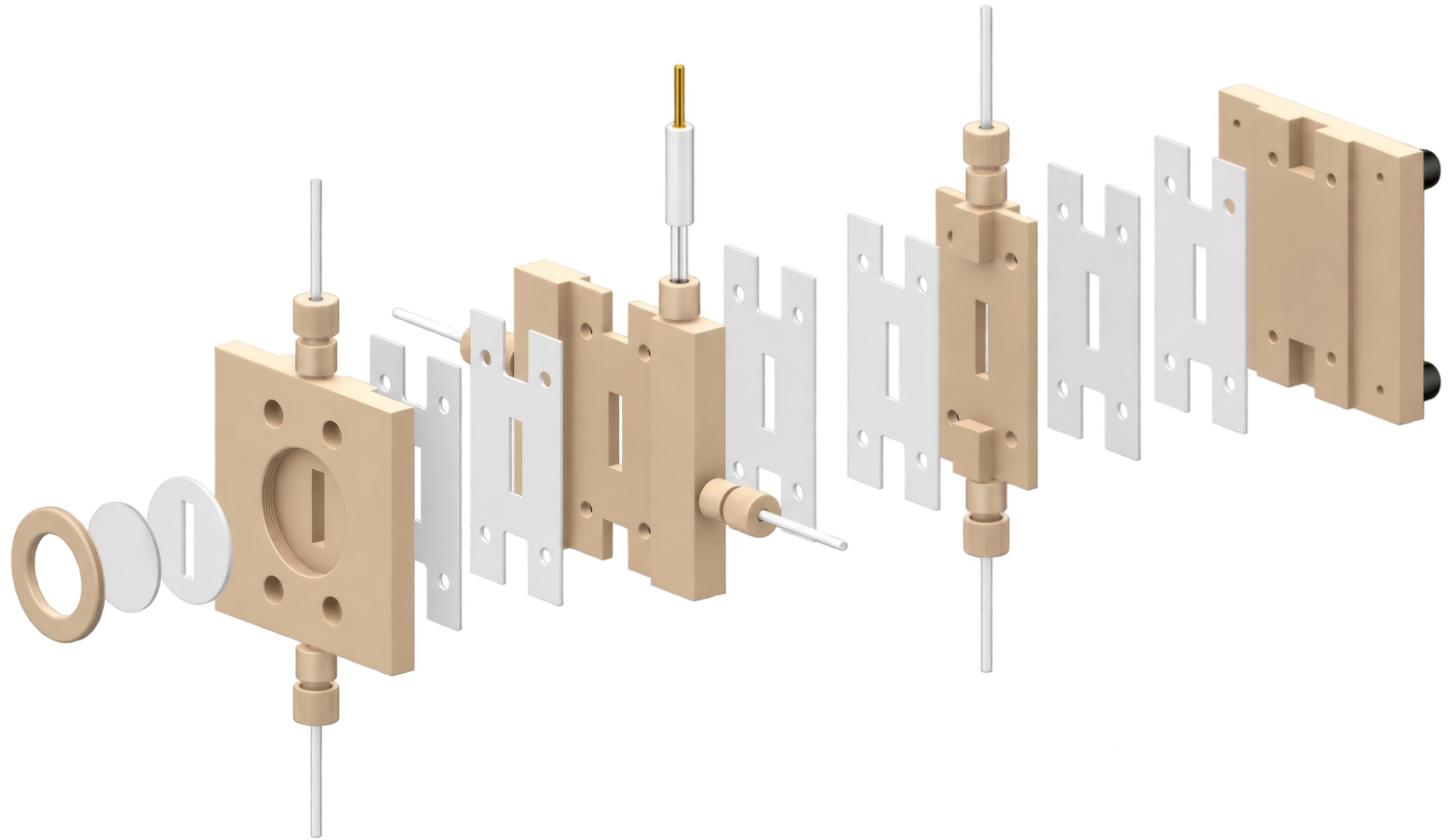

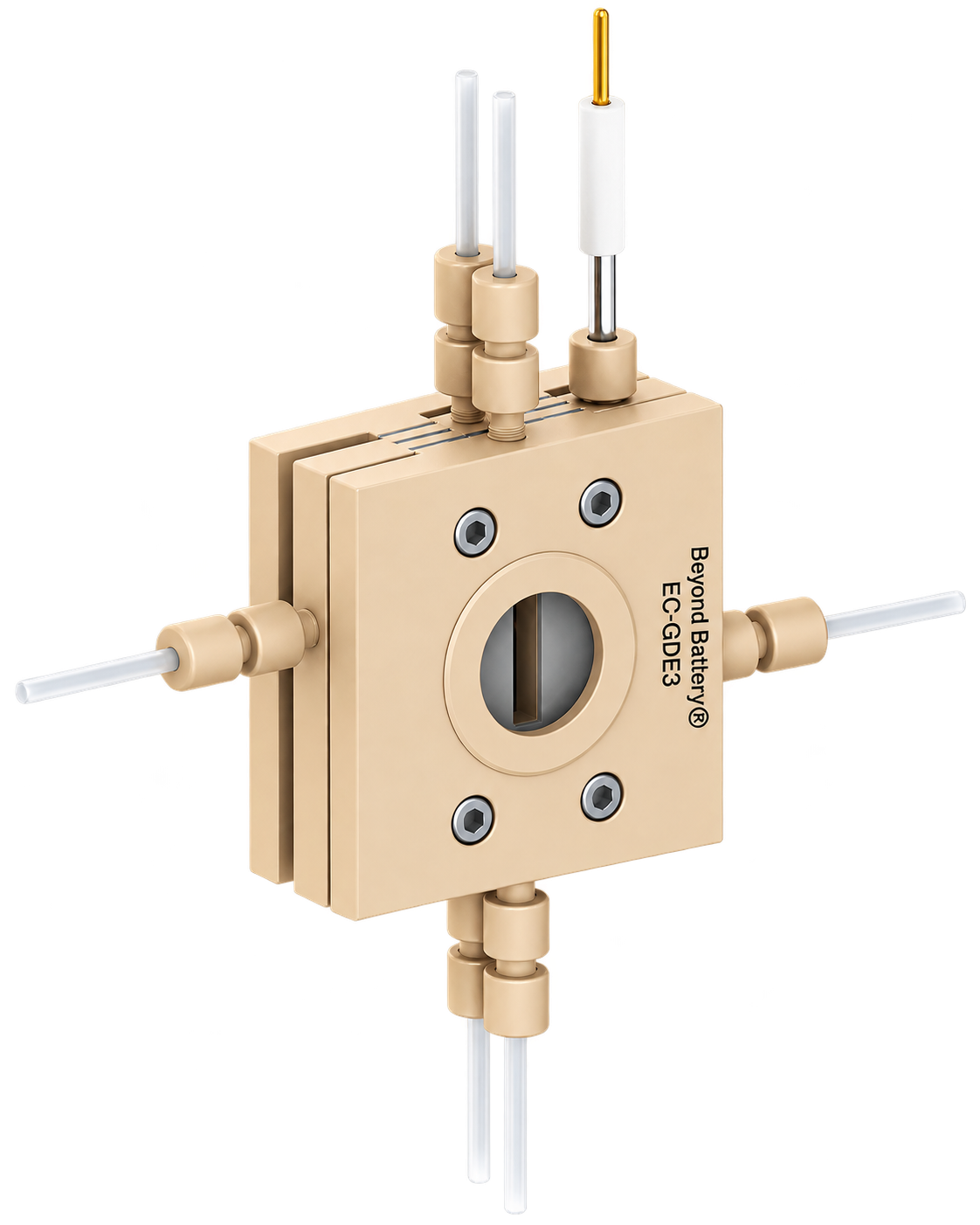

The EC-GDE3 is a three-chamber, three-electrode gas diffusion electrochemical flow cell designed for visualized catalyst evaluation and CO₂ electroreduction research. Its PEEK body integrates a quartz observation window for direct viewing of the reaction chamber, while separate gas-delivery and electrolyte-circulation pathways support controlled testing of sheet-type gas diffusion electrodes. The configuration facilitates observation of flooding, bubble accumulation and salt deposition during electrolysis, supporting catalyst evaluation and gas–liquid–solid interface studies.

Key Features

• Quartz Observation Window: The quartz window provides direct visual access to the reaction chamber for observing flooding, bubble formation and salt deposition.
• Research-Focused Electrode Spacing: The 7 mm anode–cathode gap supports general GDE flow-cell experiments, catalyst evaluation and comparative electrochemical studies.
• Chemically Resistant PEEK Body: The PEEK construction provides chemical resistance for repeated assembly and operation under compatible electrochemical conditions.

Technical Specifications

Chamber structure	Three-chamber
Electrode system	Three-electrode
Anode-cathode gap	7 mm
Active area	1 cm² (5 x 20 mm, customizable)
Working electrode	Sheet-type gas diffusion electrode
Reference electrode	Rod-type electrode
Counter electrode	Sheet-type electrode
Cell body material	PEEK
Optical window material	Quartz

Instrument Compatibility

• Gas and Electrolyte Flow Compatibility: Compatible with regulated laboratory gas supplies and electrolyte-circulation systems equipped with mass flow controllers, gas flow meters and peristaltic pumps.
• Potentiostat Compatibility: Compatible with commercial potentiostats supporting three-electrode measurements, including CH Instruments (CHI660E, CHI760E, CHI1140C), Bio-Logic (VMP3), Corrtest Instruments (CS350M), Ivium Technologies (CompactStat.e20250), and Metrohm Autolab (PGSTAT204).

Published Application Example

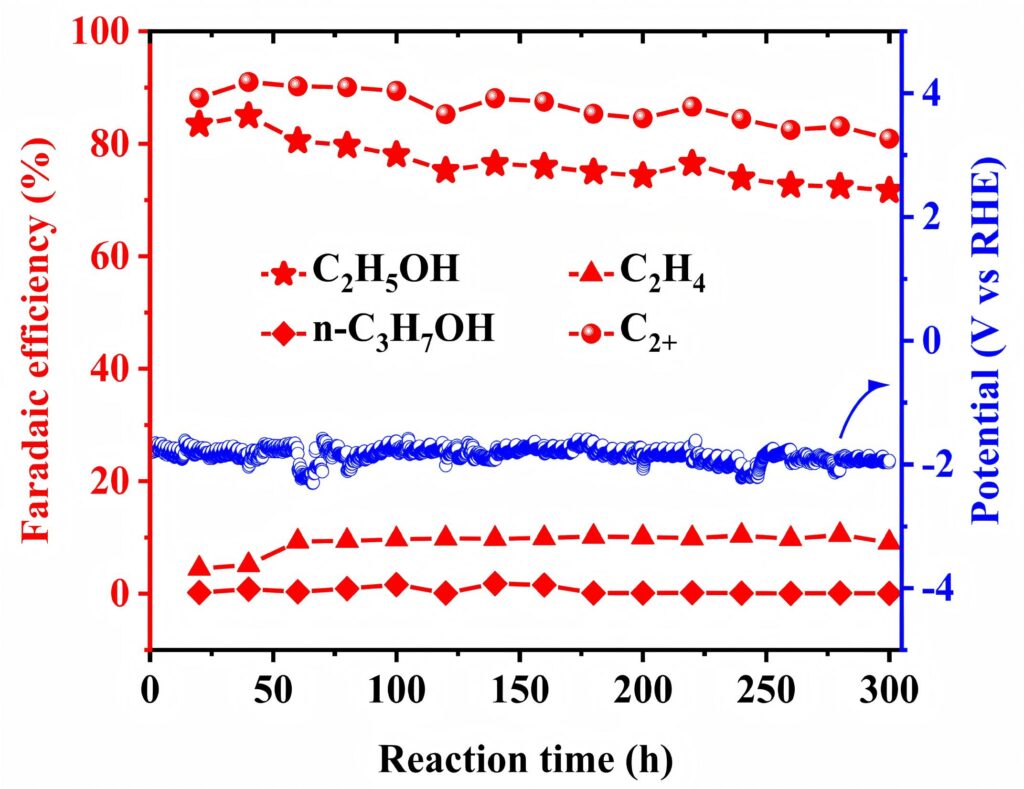

High-Selectivity and Long-Term CO₂-to-Ethanol Electrosynthesis: Liu et al. investigated selective CO₂ electroreduction to ethanol using CuAg@NTA gas diffusion electrodes in a three-chamber flow cell. With continuous CO₂ delivery, circulating 0.25 M KHCO₃ electrolyte and three-electrode control, the catalyst achieved an ethanol Faradaic efficiency of 87.21% and an ethanol partial current density of −218.03 mA cm⁻². During extended electrolysis at −250 mA cm⁻², the ethanol Faradaic efficiency remained above 70% after 300 h. The study demonstrates high-rate catalyst evaluation and extended electrolysis using a flow-cell configuration corresponding to the EC-GDE3.

Reproduced from Liu, H. et al. Nature Communications 2025, 16, 6186. CC BY 4.0.

Demonstrated EC-GDE3 Capabilities

• Supports direct CO₂ delivery and controlled electrolyte circulation for GDE testing.
• Enables evaluation of catalyst selectivity and current-density response.
• Supports extended electrolysis for investigating catalyst stability.

Additional Published Applications

• Bai, Y. et al. Sci. China Mater. 2026, 69, 2747–2756.

Product Identification Note: EC-GDE3 is the Beyond Battery product codes for the corresponding cell configurations reported in the cited publications. The original articles use different product designations.
