Description
Product Overview

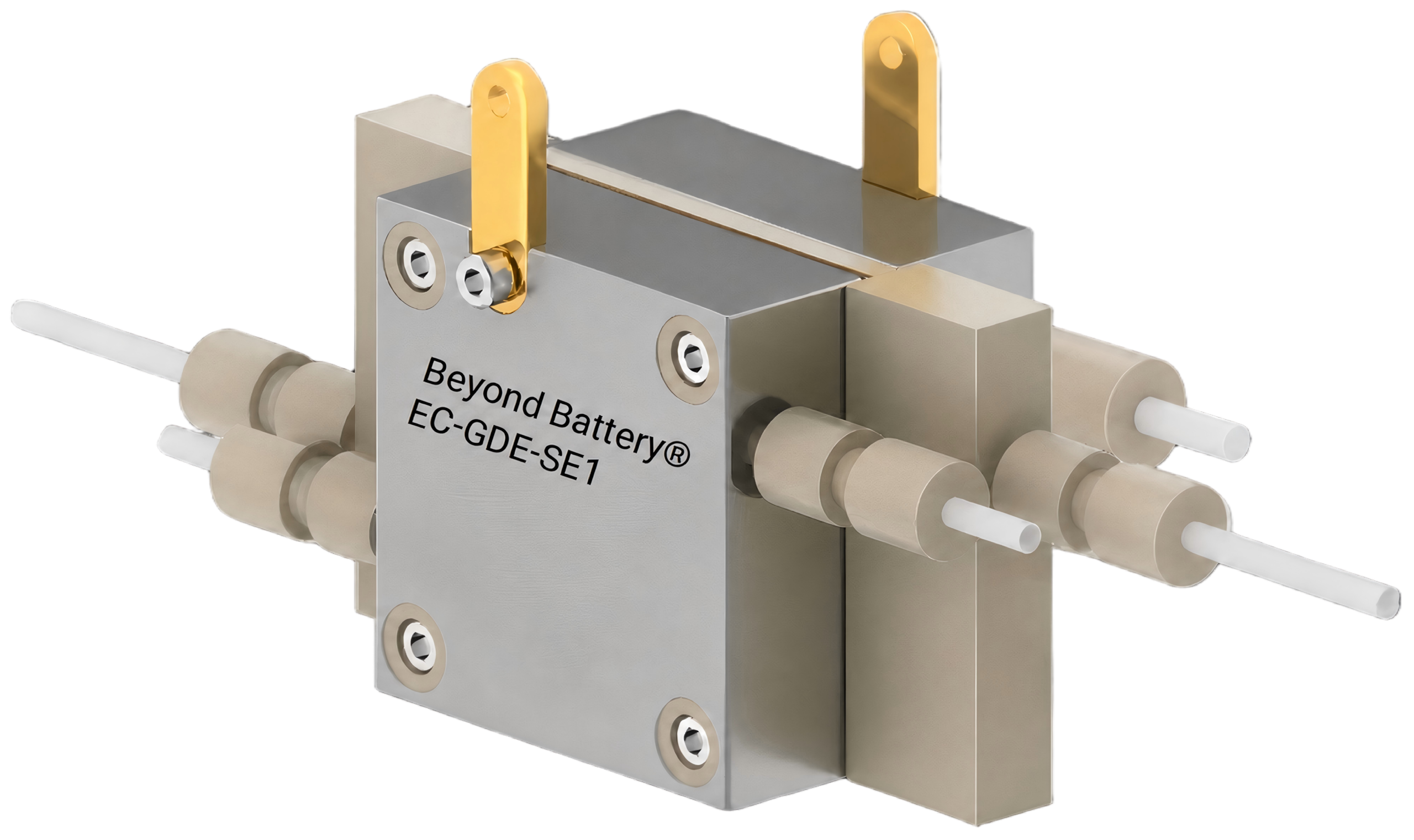

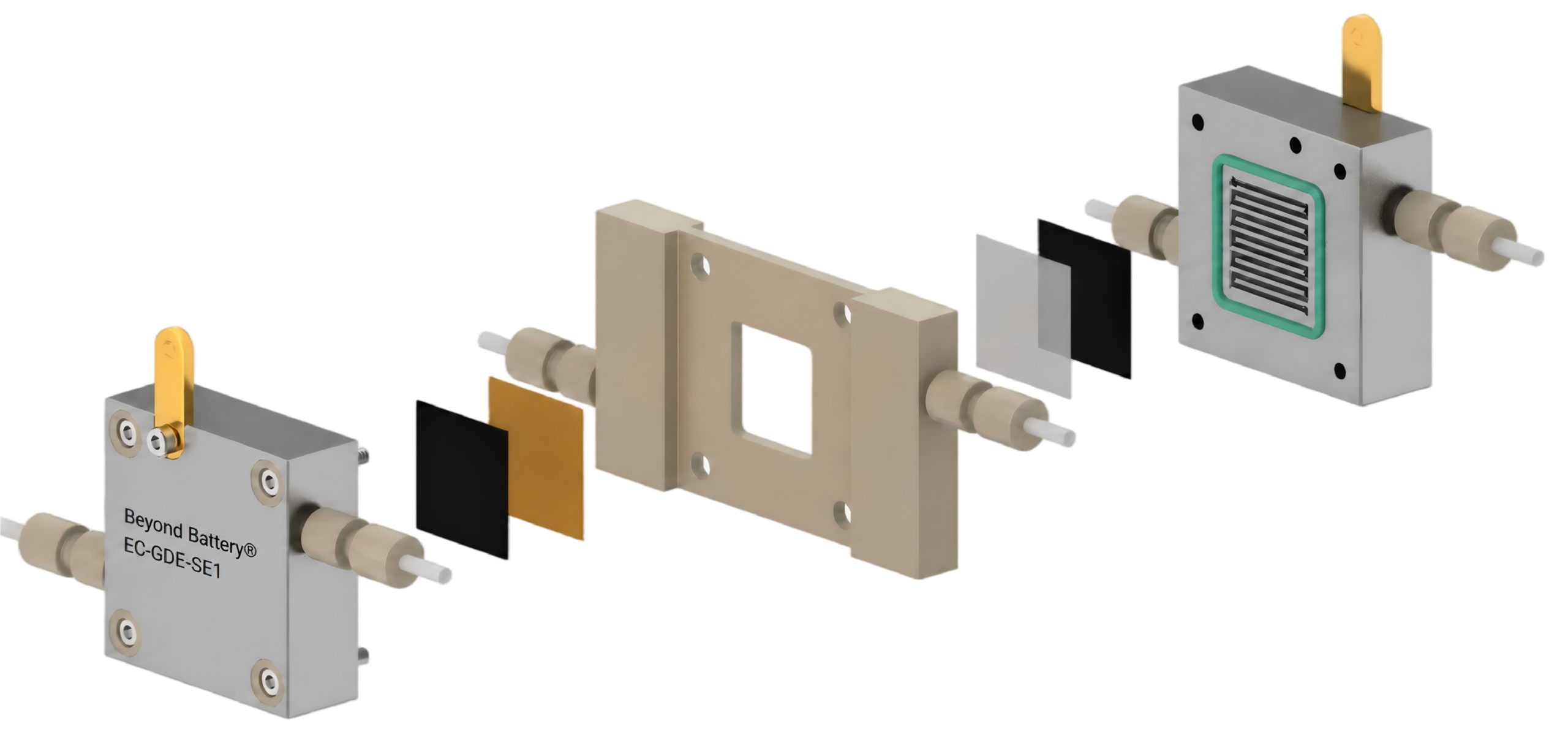

The EC-GDE-SE1 is a two-electrode, three-chamber gas diffusion electrochemical cell designed for high-purity aqueous liquid-product generation and routine solid-electrolyte research. Its sandwich architecture integrates gas-fed electrode chambers, ion-exchange membranes, and an open central solid-electrolyte chamber, where ionic products recombine and are collected by a flowing pure-water stream. The standard configuration supports electrolyte evaluation and device testing.
Key Features
- Solid-Electrolyte Product Recovery: An open central chamber enables high-purity aqueous liquid-product collection through a flowing pure-water stream.
- Two-Electrode Configuration: A standard two-electrode architecture supports routine solid-electrolyte electrolysis research and device testing.
- Three-Chamber Gas-Fed Architecture: Gas diffusion electrodes and ion-exchange membranes provide controlled gas-solid reaction interfaces.
Technical Specifications
| Chamber Structure | Three-chamber |
| Electrode System | Two-electrode |
| Anode–Cathode Gap | 3 mm |
| Active Area | 4 cm² (20 × 20 mm, customizable) |
| Anode and Cathode | Sheet-type gas diffusion electrodes |
| Central-Chamber Design | Open chamber |
| Cell Body Material | Ti + PEEK |
| Gas Flow Field | Serpentine (customizable) |
Typical Applications
- High-purity aqueous liquid-product generation.
- Routine solid-electrolyte electrolysis research.
- Electrolyte evaluation and device testing.
Configuration & Intended Use
The EC-GDE-SE1 is the standard configuration for high-purity liquid-product generation and routine solid-electrolyte research. Its two-electrode design and open central chamber are suitable for electrolyte evaluation and device testing.
