Description
Product Overview

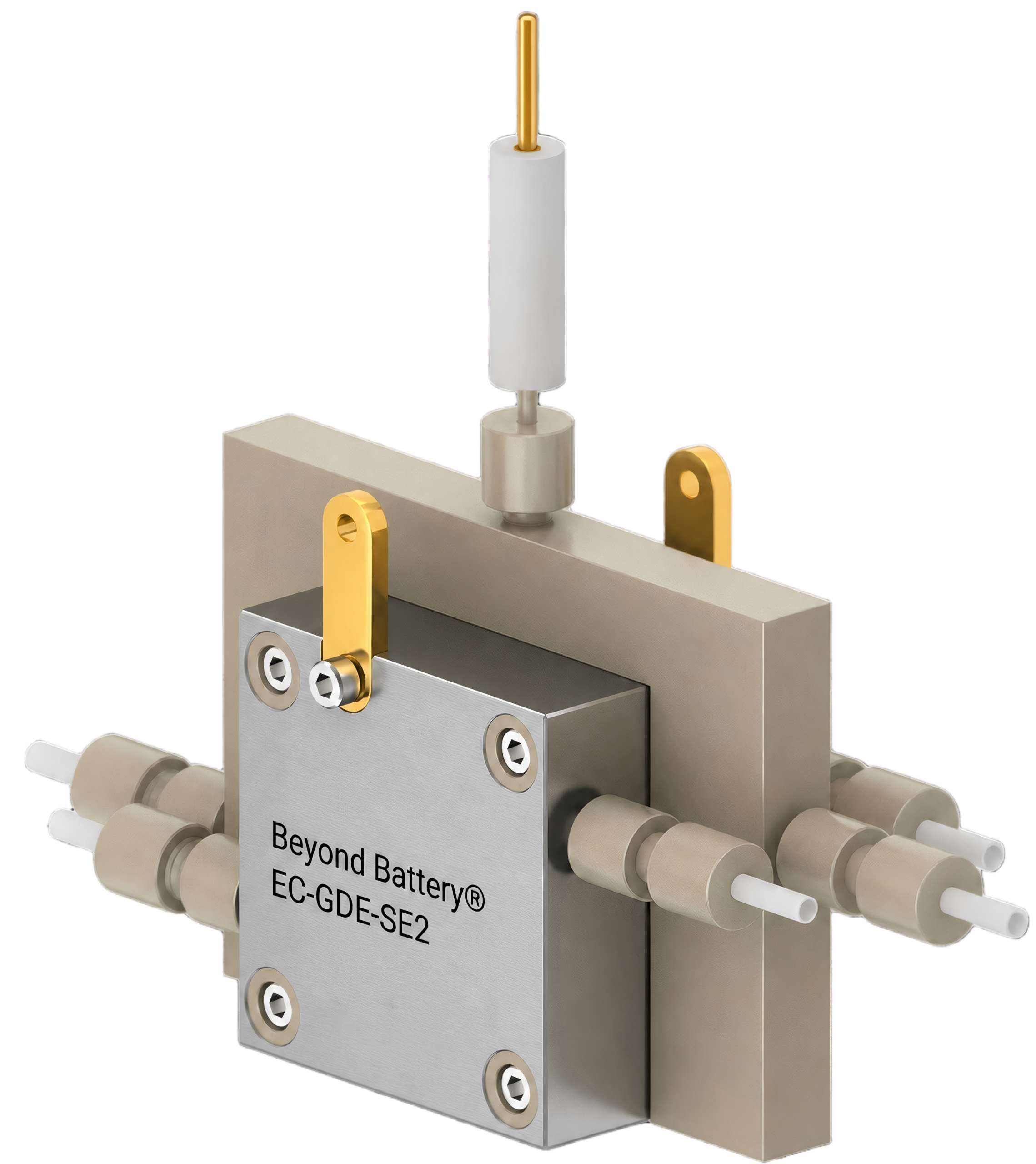

The EC-GDE-SE2 is a three-electrode, three-chamber gas diffusion electrochemical cell designed for solid-electrolyte electrolysis research requiring individual electrode-potential monitoring. It incorporates a dedicated reference-electrode chamber with a rod-type reference electrode, enabling three-electrode measurements for catalyst evaluation and mechanistic studies. Its open central solid-electrolyte chamber supports high-purity aqueous liquid-product collection through a flowing pure-water stream.
Key Features
- Three-Electrode Measurement Configuration: A dedicated rod-type reference electrode enables individual electrode-potential monitoring for electrochemical studies.
- Solid-Electrolyte Product Recovery: An open central chamber supports high-purity aqueous liquid-product collection through a flowing pure-water stream.

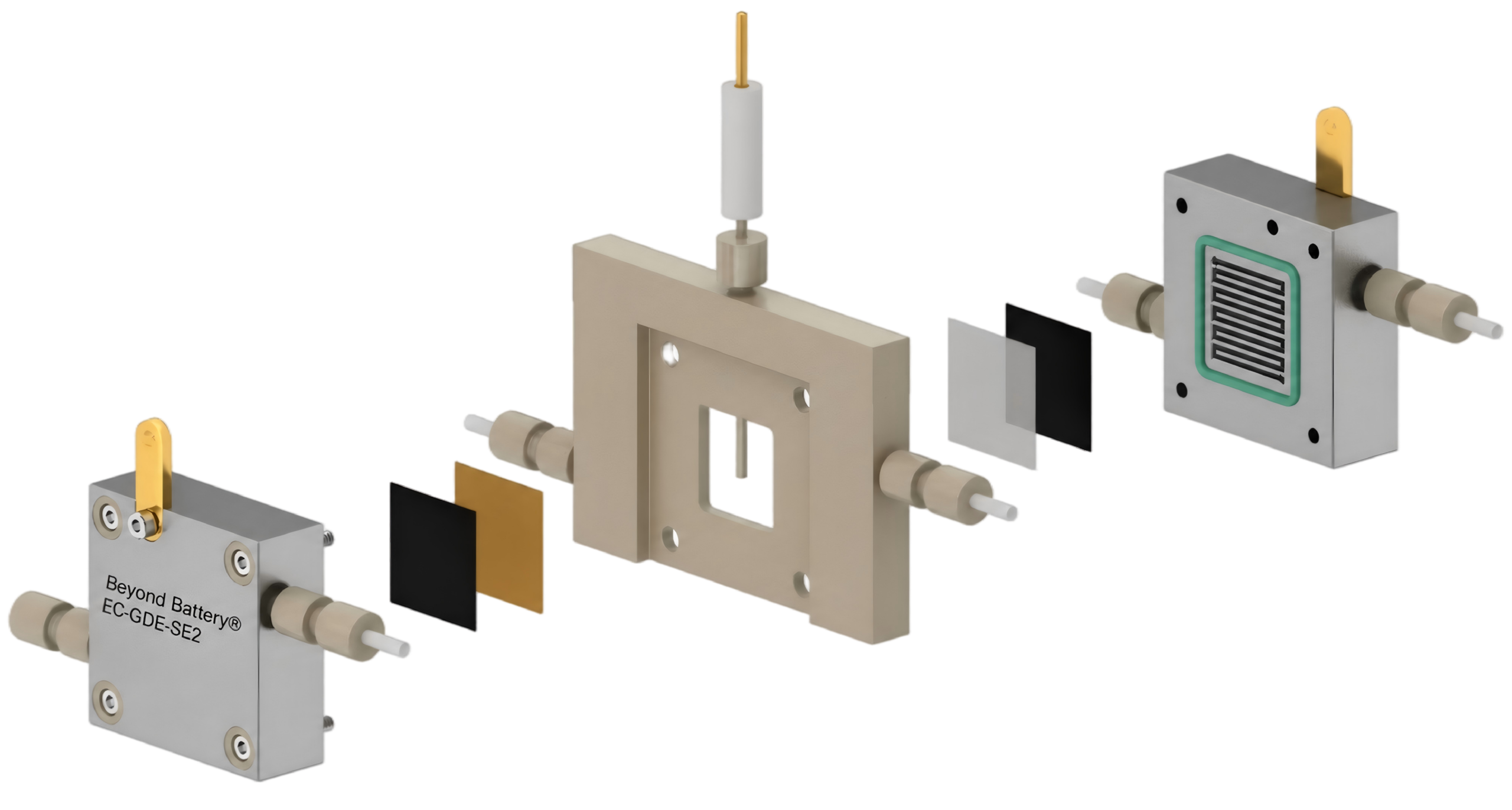

- Three-Chamber Gas-Fed Architecture: Gas diffusion electrodes and ion-exchange membranes provide controlled gas-solid reaction interfaces.
Technical Specifications
| Chamber Structure | Three-chamber |
| Electrode System | Three-electrode |
| Anode–Cathode Gap | 3 mm |
| Active Area | 4 cm² (20 × 20 mm, customizable) |
| Anode and Cathode | Sheet-type gas diffusion electrodes |
| Reference Electrode | Rod-type electrode |
| Central-Chamber Design | Open chamber |
| Cell Body Material | Ti + PEEK |
| Gas Flow Field | Serpentine (customizable) |
Typical Applications
- Electrode-potential monitoring.
- Electrocatalyst evaluation and mechanistic studies.
- High-purity aqueous liquid-product generation.
- Solid-electrolyte electrolysis research.
Configuration & Intended Use
The EC-GDE-SE2 is designed for experiments requiring individual electrode-potential monitoring. A dedicated reference-electrode chamber enables three-electrode measurements for catalyst evaluation and mechanistic studies while maintaining the open central-chamber configuration for liquid-product collection.
