Membrane Electrode Assembly Electrolyzer Cells (Graphite Bipolar Plate Type), Model: EC-MEA2

Description

Product Overview

The EC-MEA2 is a general-purpose MEA electrolyzer cell for CO₂ electroreduction, alkaline anion-exchange-membrane water electrolysis, fuel-cell evaluation and related electrochemical conversion studies. Internal high-purity isostatic graphite plates form the conductive reactant flow fields, while outer titanium fixture plates provide mechanical clamping. Multiple flow-field geometries and sizes support comparative mass-transport, water-management and catalyst-performance studies. Heating and temperature-measurement ports in the outer titanium plates enable controlled-temperature laboratory testing.

Key Features

• High-Purity Graphite Flow-Field Plates: High-purity isostatic graphite plates provide conductive flow channels for uniform reactant distribution in MEA-based electrochemical testing.
• Customizable Flow-Field Design: Supports serpentine, parallel, vein-pattern, spiral, mesh and comb-type channels for mass-transport and water-management studies.

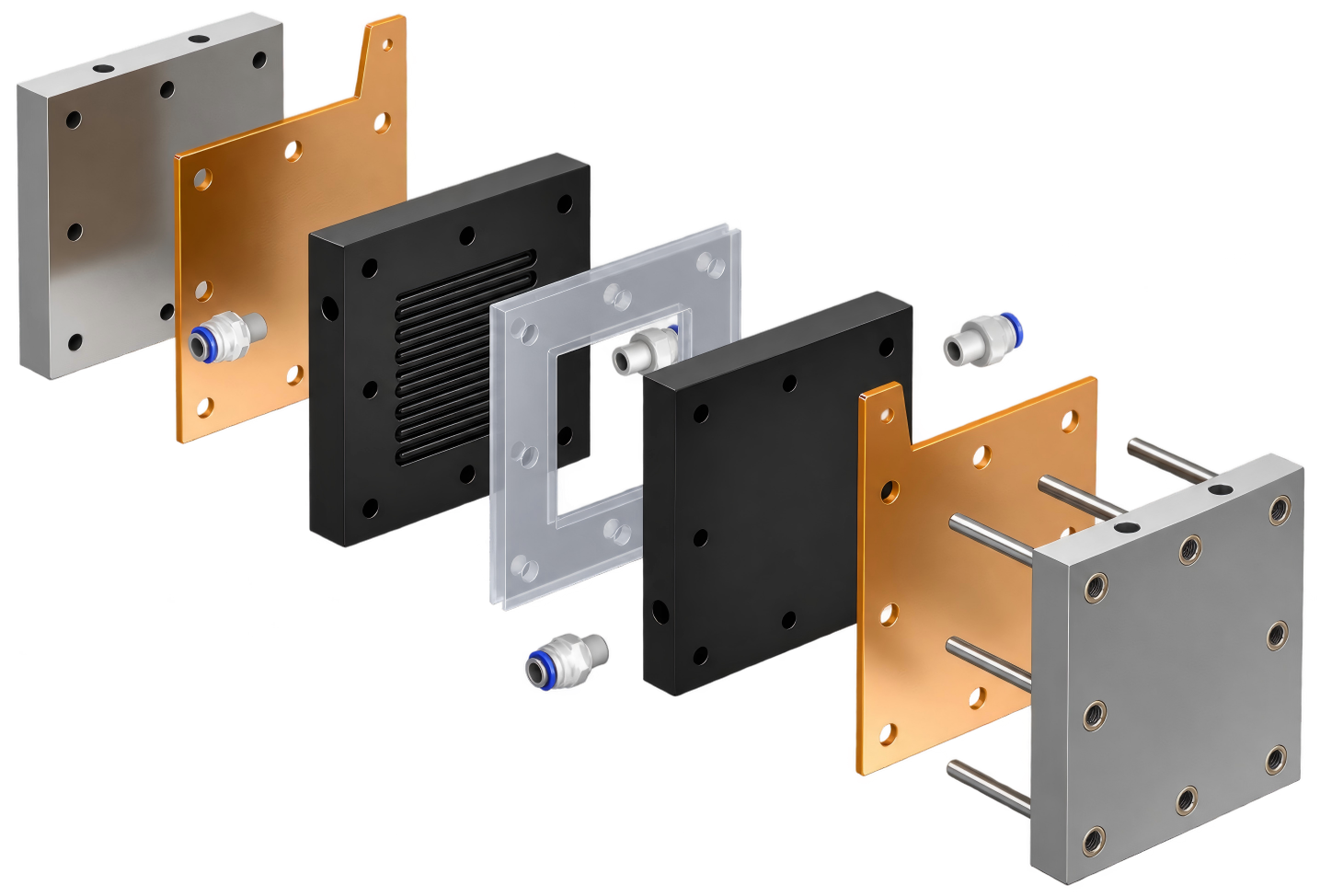

• Layered Graphite–Titanium Construction: Internal graphite flow-field plates are enclosed by outer titanium fixture plates, providing stable mechanical clamping for repeatable MEA assembly.

Technical Specifications

Chamber structure	Two-chamber
Electrode system	Two-electrode
Anode / cathode	Sheet-type electrodes
Flow-field area	1, 4, 5, 9, 25 cm² (square); customizable
Flow-field size	10 × 10, 20 × 20, 22.4 × 22.4, 30 × 30, 50 × 50 mm; customizable
Flow-field configurations	Serpentine, parallel, vein-pattern, etc., customizable
Individual plate dimensions	90 × 90 × 15 mm, customizable
Flow-field plate material	Graphite, PEEK optional
Fixture plate material	Ti

Instrument Compatibility

• Gas Supply Compatibility: Compatible with regulated gas-supply systems for controlled delivery of gaseous reactants through the graphite flow fields.
• Potentiostat Compatibility: Compatible with commercial potentiostat for two-electrode MEA testing, including Corrtest Instruments (CS350M).

Related Published Application

Flow-Field Water Management in Zero-Gap CO₂ Electrolysis: Xu et al. compared parallel, serpentine and lizard-inspired graphite cathode flow fields in a custom zero-gap CO₂ electrolyzer with a stainless-steel anode flow field. At 2.25 cm², the lizard-inspired design achieved a CO partial current density of 165.5 mA cm⁻² at 200 mA cm⁻² and maintained approximately 81.3% CO Faradaic efficiency for 24 h. Scale-up to 5.06 cm² was demonstrated at current densities up to 400 mA cm⁻².

Reproduced from Xu, L. et al. ACS Energy Lett. 2025, 10, 3081–3088. CC BY 4.0.

Capabilities Relevant to the EC-MEA2

• Demonstrates MEA operation with configurable graphite cathode flow fields.
• Compares parallel, serpentine and customized channel geometries.
• Evaluates reactant transport, flooding and salt precipitation.

Note: The referenced study used a custom-made zero-gap CO₂ electrolyzer with graphite cathode flow-field plates and a configuration comparable to the EC-MEA2. It is included solely as a related application example; the article does not identify or use the EC-MEA2 model.
