Description
(2026 Upgraded version)

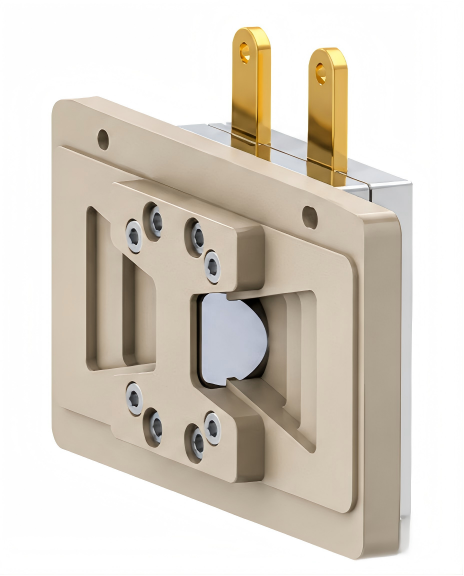

The B-IFA is an in-situ infrared electrochemical cell developed for operando FTIR and ATR-SEIRAS studies of lithium-ion batteries. Utilizing a single-crystal silicon infrared window, it enables real-time investigation of interfacial reactions and structural evolution during battery operation.
Applications
- In-Situ FTIR Analysis
- ATR-SEIRAS Studies
- Electrode–Electrolyte Interface Investigation
- Lithium-Ion Battery Research
Features
- Single-Crystal Silicon Window: Optimized for electrochemical infrared spectroscopy
- ATR-SEIRAS Compatible Design: Enables enhanced surface-sensitive measurements

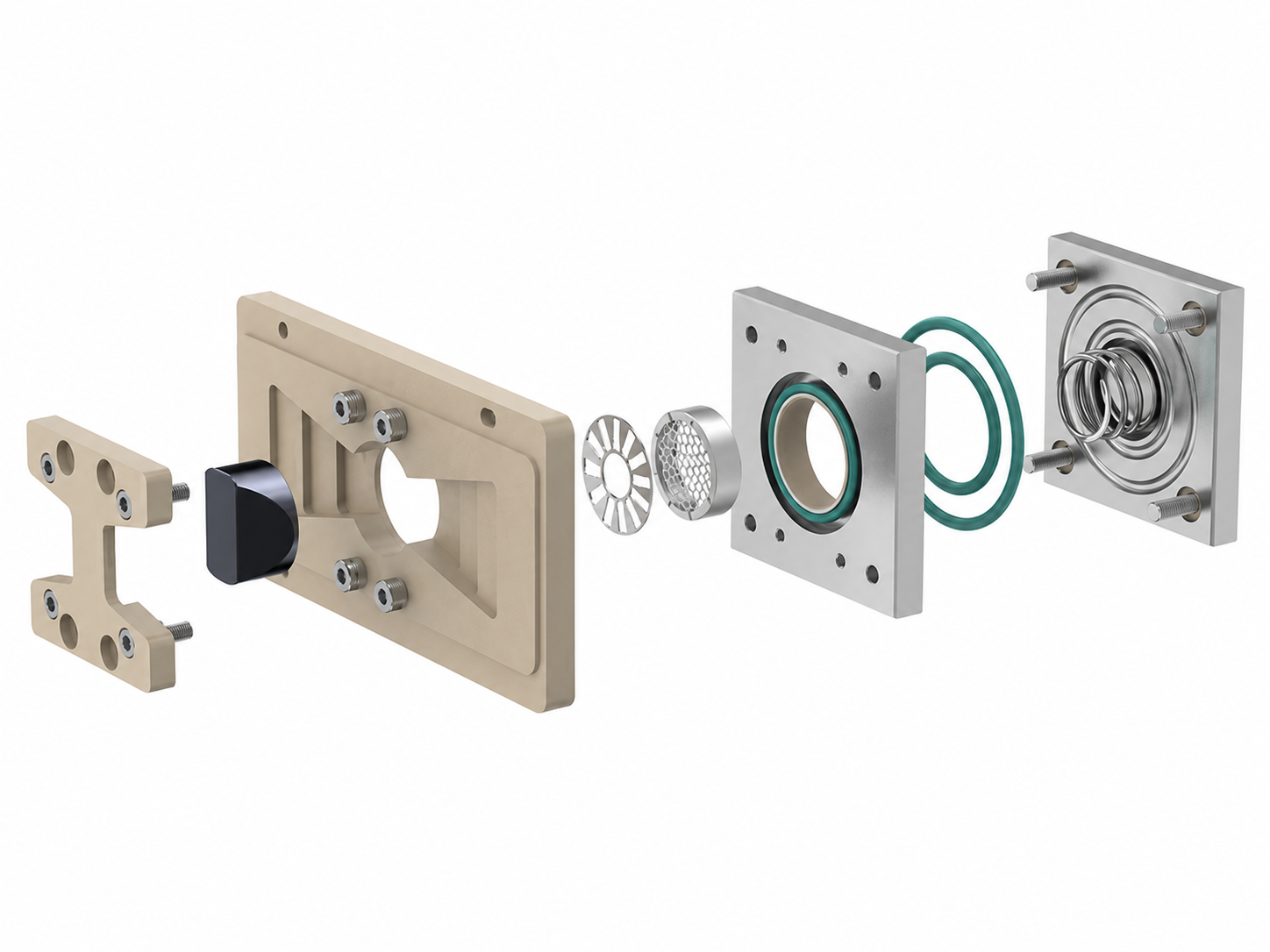

- Spring-Loaded Compression Structure ensures reliable electrode contact
- Dual O-Ring Sealing Design provides excellent airtight performance
Specifications
- Infrared Window Material: Single-Crystal Silicon (Si)
- Body Material: Titanium
- Cell Dimensions: 50 × 50 × 20 mm
