Description
(2026 Upgraded version)

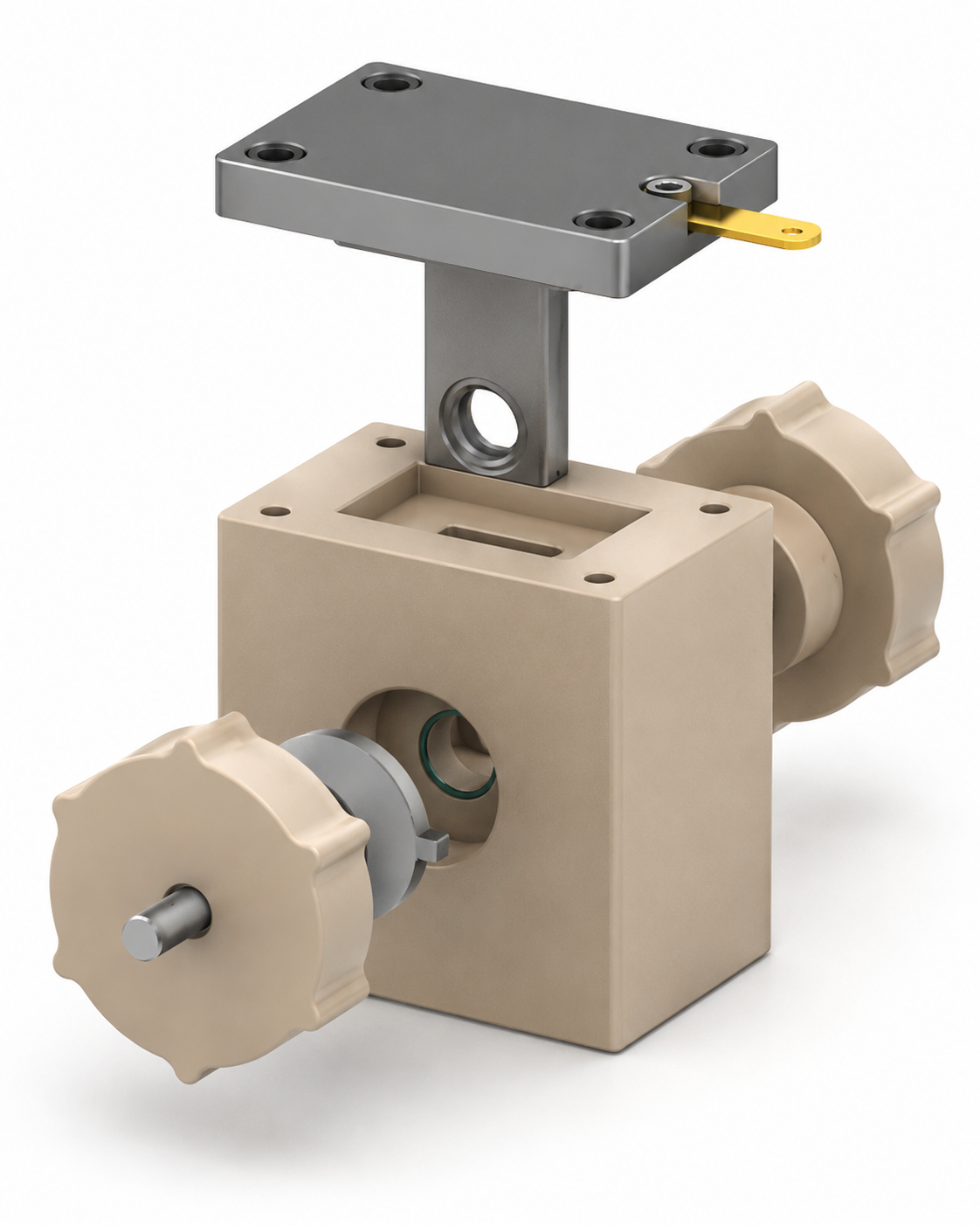

The B005-3 is a three-electrode battery evaluation cell designed for lithium-ion battery research requiring lithium-reference measurements. By incorporating a lithium wire reference electrode, it enables more accurate electrode potential monitoring during material development and electrochemical testing.
Applications
- Lithium-Ion Battery Research
- Electrode Potential Monitoring
- Battery Material Evaluation
- Electrochemical Mechanism Studies
Features
- Lithium Wire Reference Electrode: Enables lithium-referenced potential measurements
- Three-Electrode Configuration supports advanced electrochemical analysis
- PEEK Cell Body provides excellent electrolyte compatibility
- Compact Electrolyte Chamber minimizes electrolyte consumption
Specifications
- Cell body material: PEEK
- Current collector tab: Titanium
- Reference electrode: Lithium wire
- Compatible sample size: Ø20 mm circular disk (customizable)
- Electrode spacing: 5 mm
- Electrolyte volume: < 1 mL
