Description
(2026 Upgraded version)

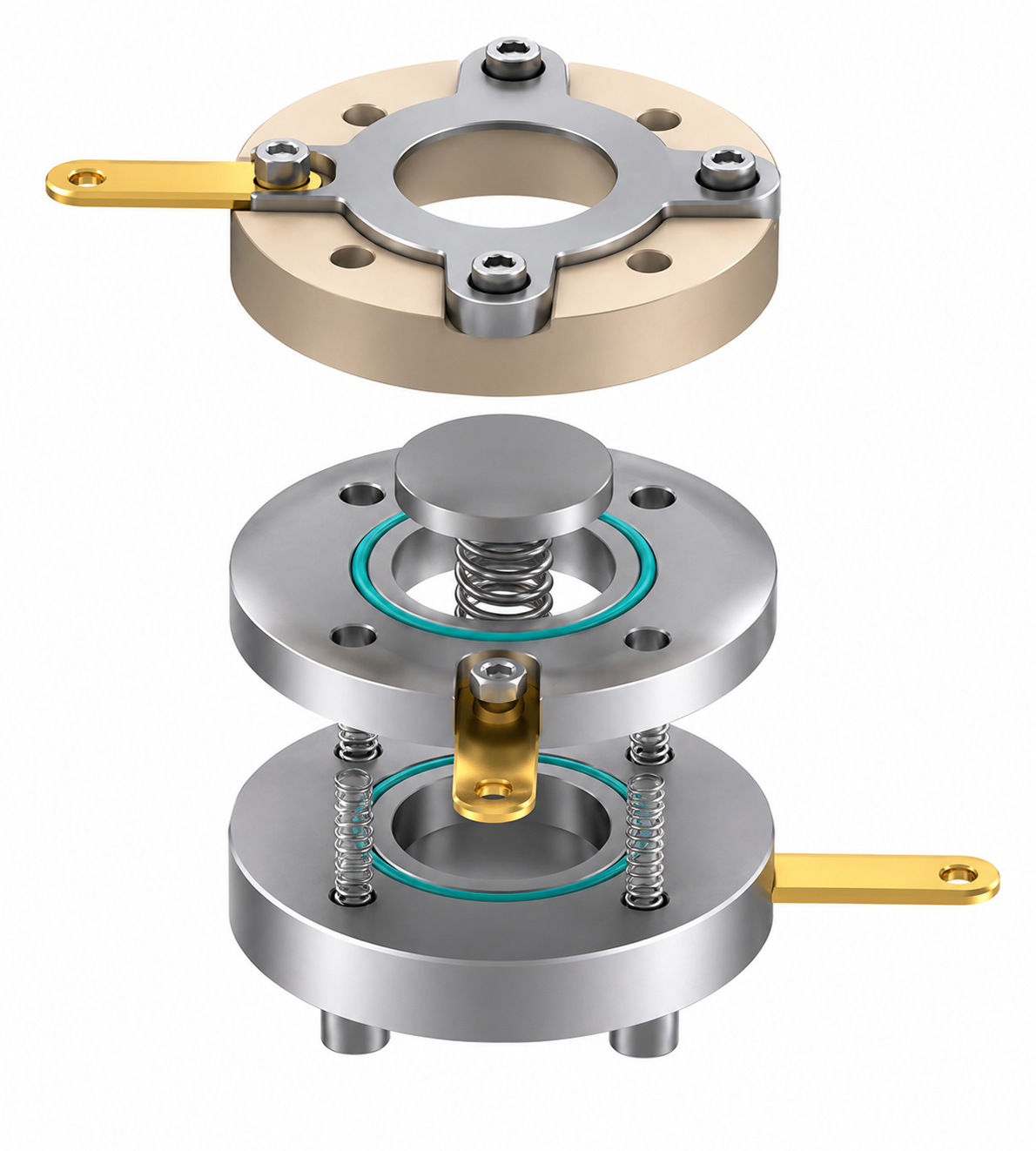

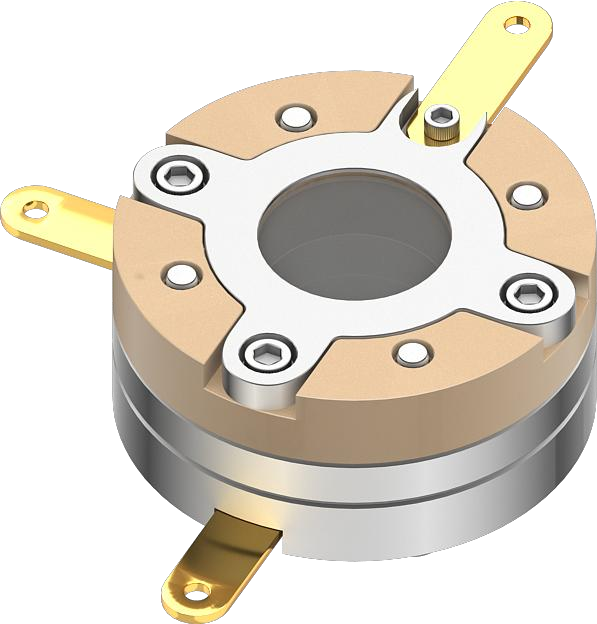

The B003-XRD is an upgraded version of the B002-XRD featuring three-electrode operando XRD capability. By integrating a dedicated reference electrode into the XRD testing platform, it enables simultaneous structural analysis and electrode potential monitoring during battery cycling.
Applications
- Three-Electrode In-Situ XRD Analysis
- Electrode Potential Monitoring
- Phase Transition Studies
- Battery Material Characterization
Features
- Integrated Reference Electrode: Enables independent electrode potential measurement
- Beryllium X-Ray Window: Provides efficient X-ray transmission for diffraction studies
- Three-Collector Architecture: Separates working, counter, and reference electrodes
- Spring-Contact Reference Design: Ensures reliable electrical connection
Specifications
- Configuration: Three-electrode system
- Reference electrode: Lithium ring
- Window material: Beryllium (Be)
- Cell body material: Titanium
- Insulator material: PEEK
- Current collector tab: Gold-plated copper
- Cell body dimensions: Ø49.5 mm × H23 mm
- Window aperture diameter: 20 mm
- Compatible sample diameter: 20 mm
- Minimum working angle: < 3°
