Description
(2026 Upgraded version)

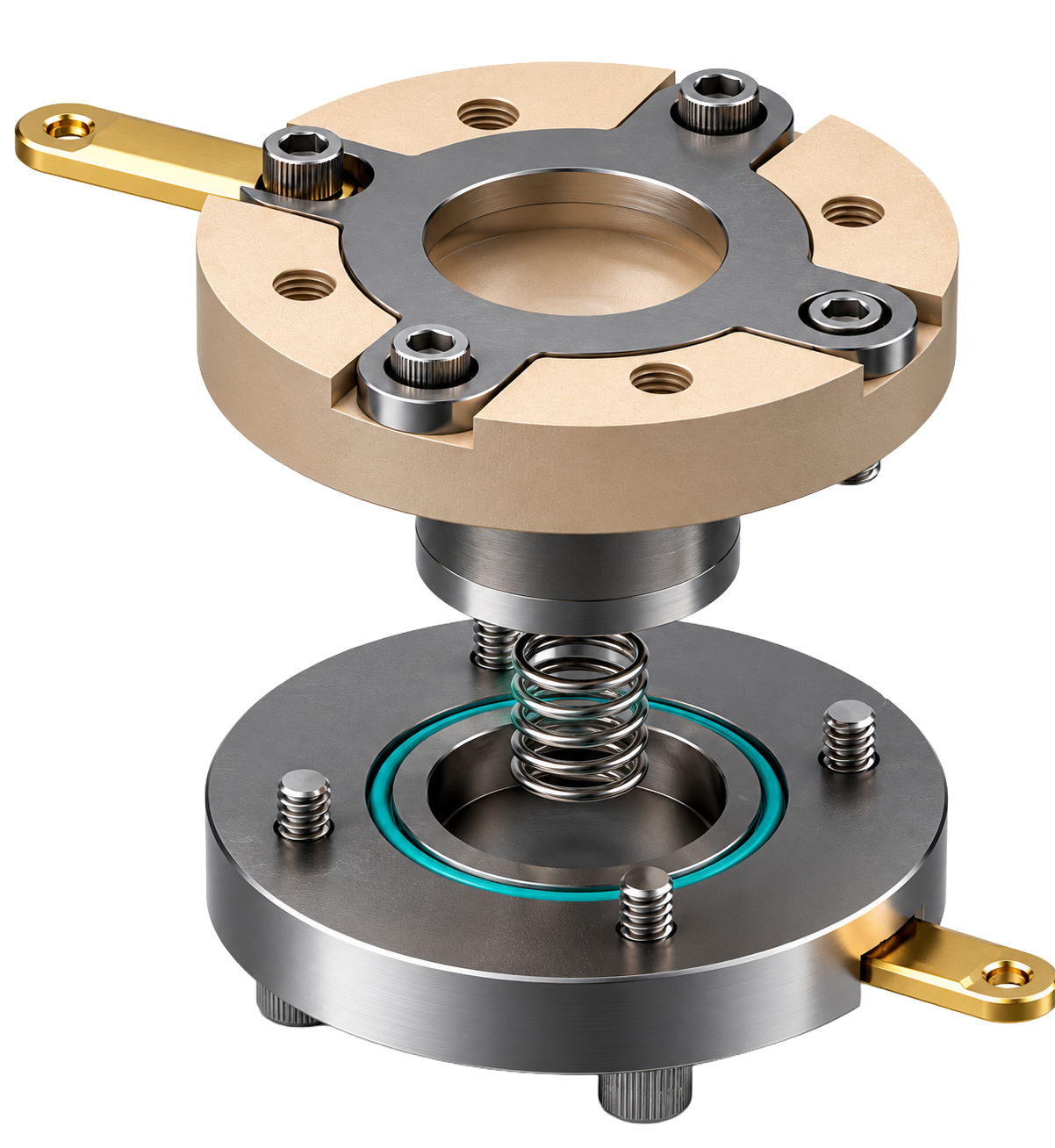

The B002-XRD is an in-situ XRD battery test cell developed for real-time structural analysis of battery materials during electrochemical cycling. Based on the B002 platform, it incorporates a dedicated X-ray transmission window and is compatible with Bruker D8 diffractometers for operando XRD studies.
Applications
- In-Situ XRD Analysis
- Phase Transition Studies
- Crystal Structure Evolution Monitoring
- Battery Material Characterization
Features
- Beryllium X-Ray Window: Enables efficient X-ray transmission for diffraction measurements
- D8 Diffractometer Compatible: Designed for use with Bruker D8 systems
- Spring-Loaded Compression: Allows adjustable electrode loading during testing
- Glovebox-Compatible Design: Supports assembly in controlled environments
Specifications
- Cell Diameter: 49.5 mm
- Window Aperture Diameter: 20 mm
- Sample Diameter: 20 mm
- Minimum Working Angle: < 3°
