Description
(2026 Upgraded version)

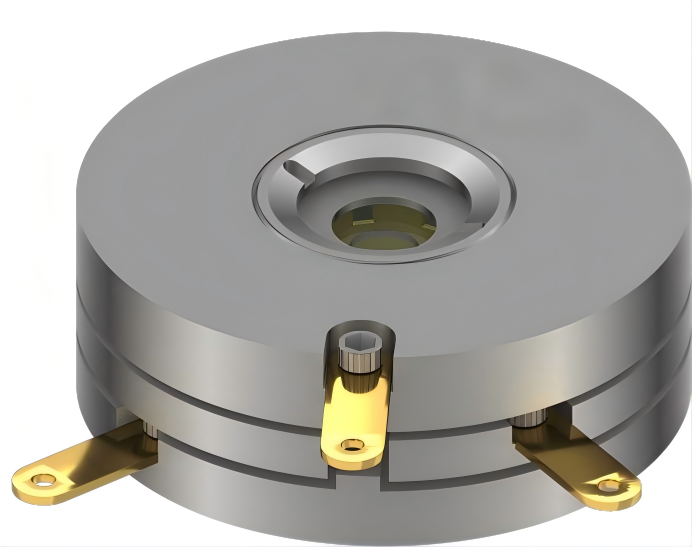

The B003-RM is an upgraded version of the B002-RM featuring three-electrode in-situ Raman testing capability. It combines real-time Raman characterization with independent electrode potential monitoring, enabling comprehensive investigation of structural and electrochemical changes during battery operation.
Applications
- Three-Electrode In-Situ Raman Analysis
- Electrode Potential Monitoring
- Structural Evolution Studies
- Electrochemical Mechanism Research
Features
- Integrated Lithium Wire Reference Electrode: Enables independent potential measurement
- In-Situ Raman Capability: Supports real-time spectroscopic monitoring during cycling

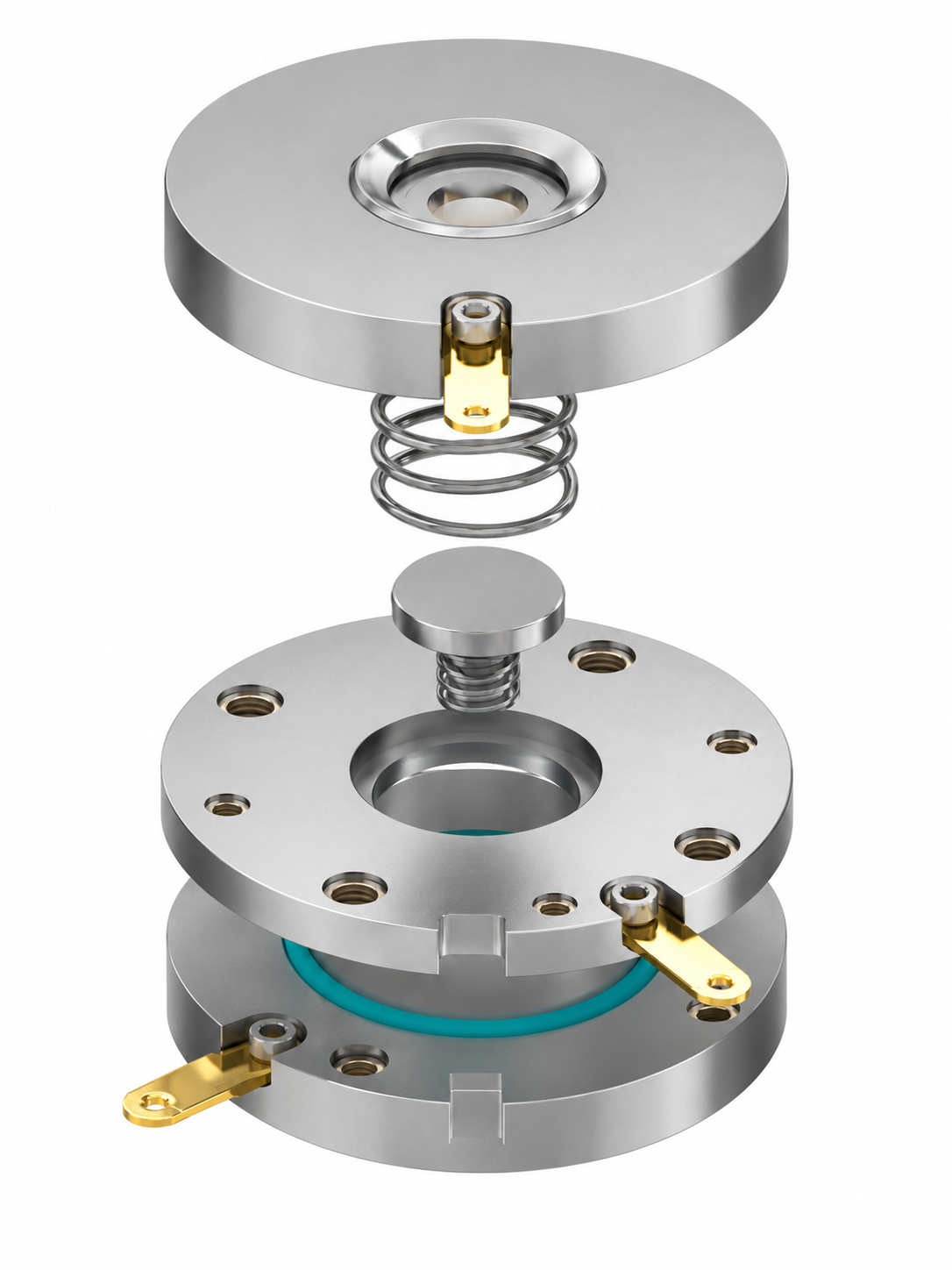

- Spring-Contact Reference Design: Provides reliable electrical connection
- Spring-Loaded Compression: Maintains stable electrode contact
Specifications
- Configuration: Three-electrode system
- Reference electrode: Lithium wire
- Cell body material: Titanium
- Insulator material: PEEK
- Current collector tab: Gold-plated copper
- Optical window material: Sapphire
- Cell body dimensions: Ø70 mm × H24 mm
- Electrode-to-window distance: < 2 mm
