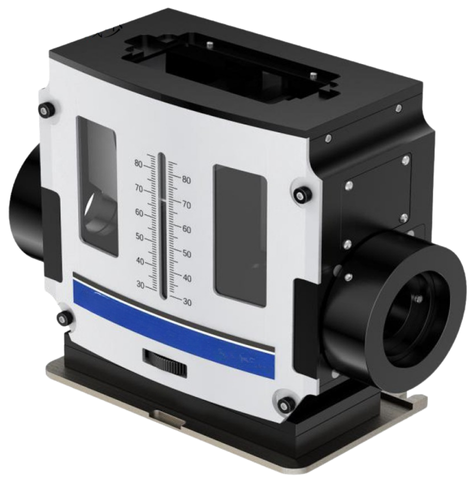

Optical table with adjustable incident angle Model: B-IFA-OT

Description

The B-IFA-OT is an adjustable incident angle optical platform designed for optical measurements with variable incident angles and selectable crystal plates. It provides continuous angle adjustment and flexible optical configurations for controlling measurement depth according to different sample requirements.

Applications

• Optical measurements with variable incident angles
• Thin-film sample measurements
• Coating sample measurements
• Liquid sample measurements
• Powder sample measurements

Features

• Continuous Angle Adjustment: Enables incident angle adjustment from 30° to 80° for flexible measurement configurations
• Flexible Crystal Selection: Supports different crystal plate selections for controlling measurement depth
• High Optical Throughput: The 45° ZnSe crystal provides over 50% throughput to reduce sampling time
• Flexible Sample Handling: Optional high-pressure clamps support measurements of thin films, coatings, and powder samples
• Integrated Polarizer Position: Provides installation positions for manual or automatic polarizers

Specifications

• Incident angle range: 30°–80° (continuously adjustable)
• Crystal material: ZnSe
• Crystal angle: 45°
• Optical throughput: >50% (45° ZnSe crystal)
• Penetration depth range: 0.4–46 μm
