Description
(2026 Upgraded version)

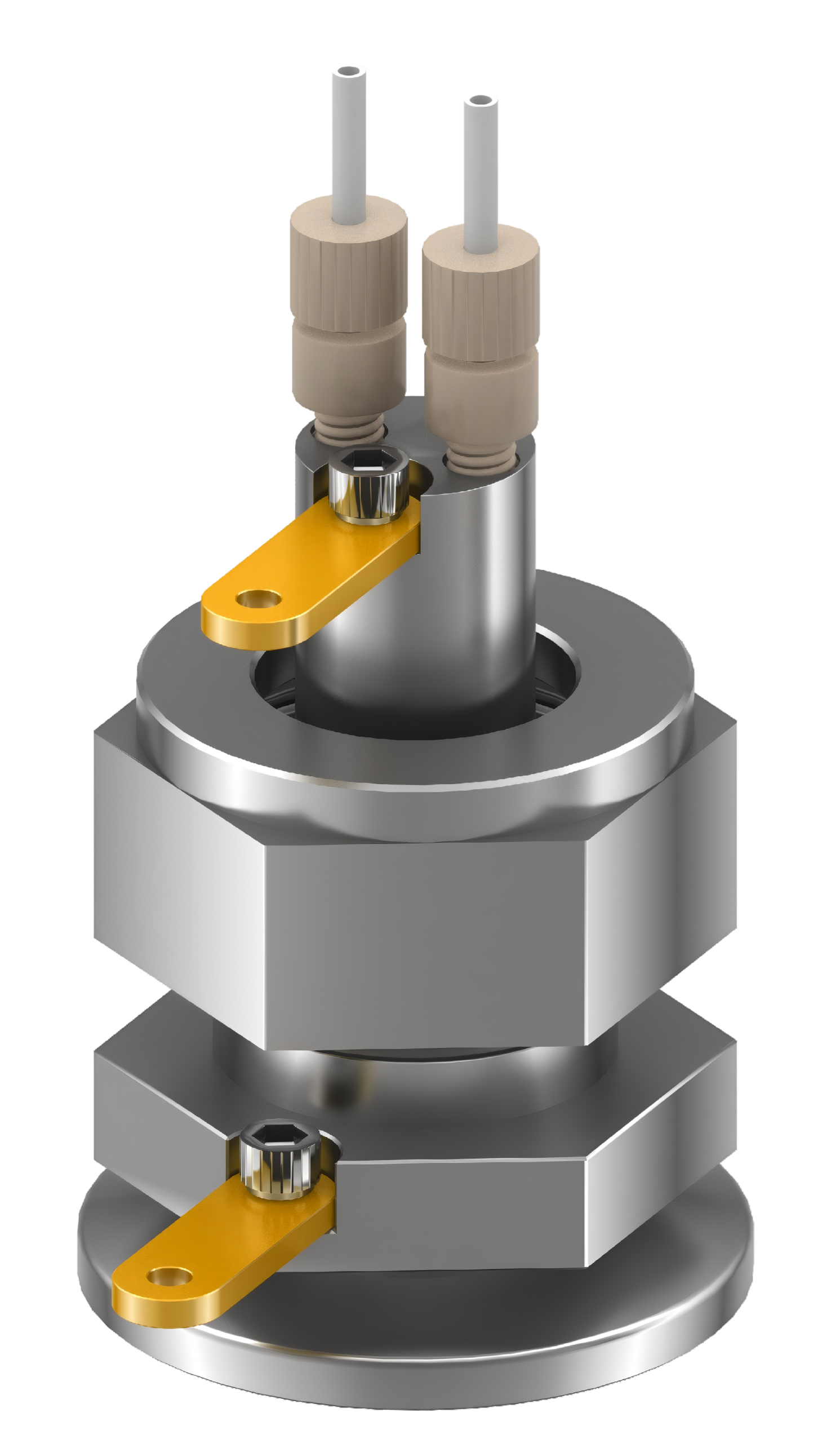

The IGA-SC-01 is an operando battery research platform that integrates electrochemical testing with online gas analysis in a compact Swagelok-type cell architecture. The design combines reliable electrode contact, gas-tight sealing, and dedicated gas sampling interfaces for real-time monitoring of battery gas evolution during operation.
The product is designed for in-situ gas evolution studies of lithium-ion, sodium-ion, zinc-ion, solid-state, and other emerging battery systems. Combined with GC, GC-MS, DEMS, or OEMS, it enables qualitative and quantitative analysis of gas evolution behavior, supporting studies of electrolyte decomposition, interfacial reactions, parasitic reactions, and battery safety. The standardized gas interfaces allow integration with commercial gas analysis platforms from Hiden Analytical, Spectro Inlets, Agilent, Shimadzu, and Thermo Fisher Scientific.
Applications
- Battery gas sampling and operando monitoring with GC, GC-MS, DEMS, or OEMS integration
- Study of electrolyte decomposition, interfacial reactions, and gas evolution mechanisms during battery cycling
- Electrochemical testing of lithium-ion, sodium-ion, zinc-ion, solid-state, and other advanced battery systems
Features
- Operando gas sampling design: Integrates dedicated gas inlet and outlet ports for continuous gas sampling during battery operation and compatibility with GC, GC-MS, DEMS, and OEMS analysis systems
- Chemically resistant cell construction: High-purity titanium and PTFE components provide excellent chemical stability and corrosion resistance for various battery chemistries
- Reliable Electrical and sealing performance: Titanium electrode posts, gold-plated copper tabs, and FKM conical seals ensure stable electrical contact and repeatable gas-tight sealing

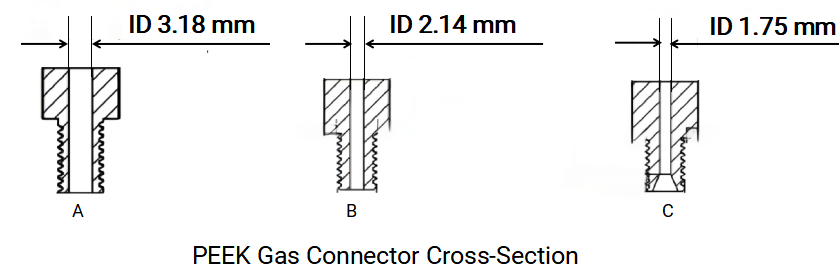

- Flexible gas interface compatibility: PEEK gas connectors support standard 1/16″ and 1/8″ tubing for integration with different gas analysis configurations

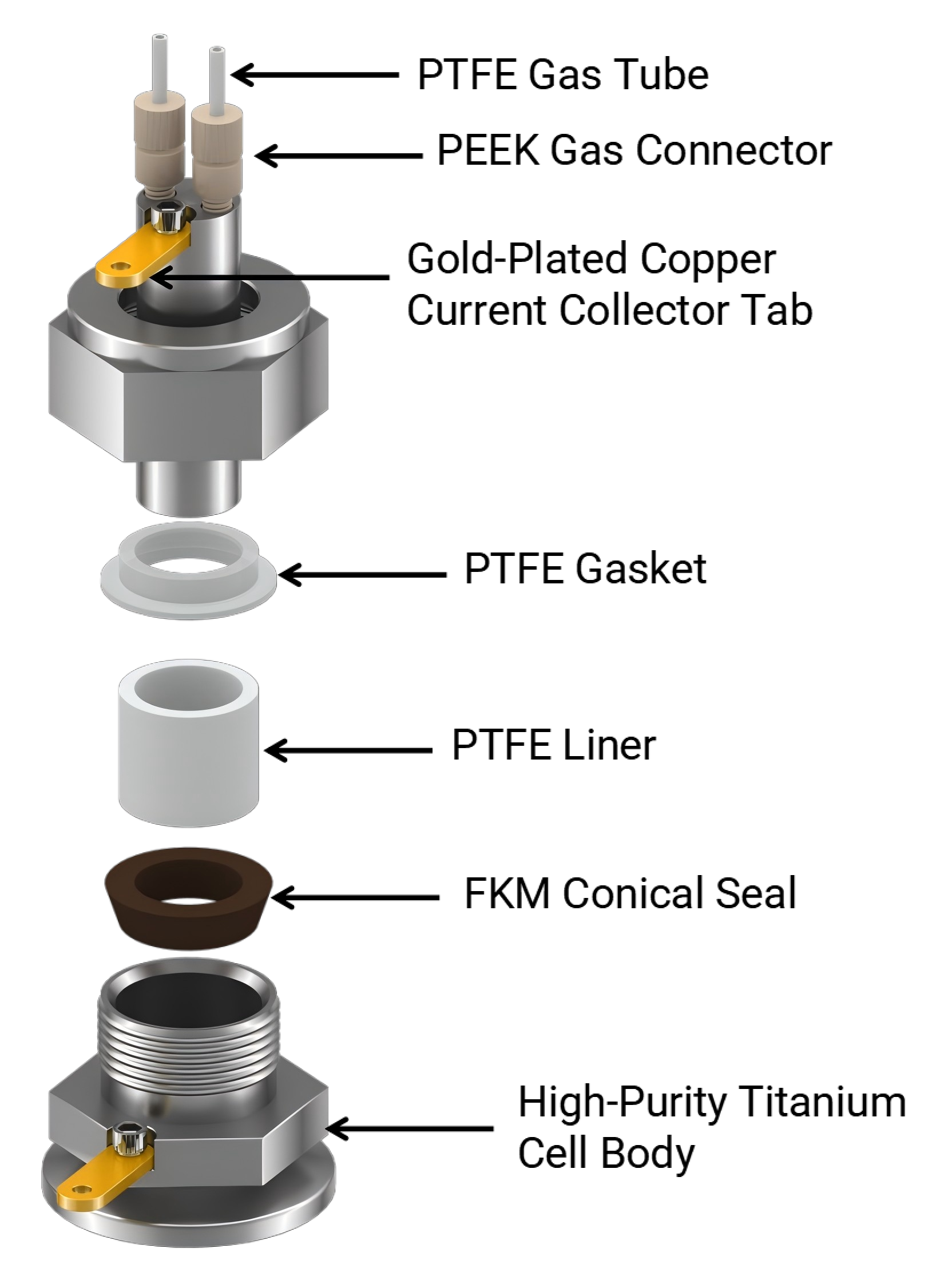

- Glovebox-compatible modular design: Compact Swagelok-type structure enables convenient assembly, disassembly, and maintenance in inert environments
- Large electrode compatibility: Supports electrodes up to approximately 20 mm, providing a test configuration closer to CR20xx coin cells
- Pressure-controlled assembly (optional): Enables reproducible stack pressure control during battery assembly
Specifications
- Effective electrode area: Up to 3.14 cm² (20 mm electrode)
- Gas dead volume: Approx. 4.5 mL (excluding external tubing)

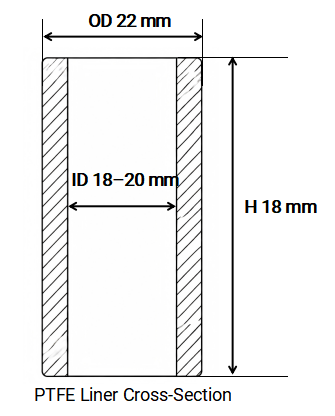

- PTFE liner dimensions: ID 18–20 mm × H 18 mm (customizable; minimum wall thickness 1 mm)

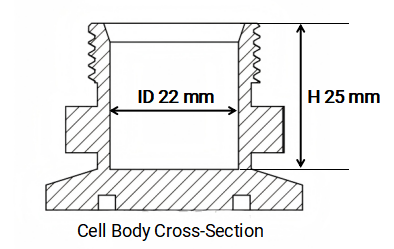

- Main chamber dimensions: ID 22 mm × H 25 mm
- Applicable tubing size: 1/16″, 1/8″
- Overall height: Approx. 60 mm (excluding gas fittings)
- Base diameter: 45 mm
- Weight: 364 g
