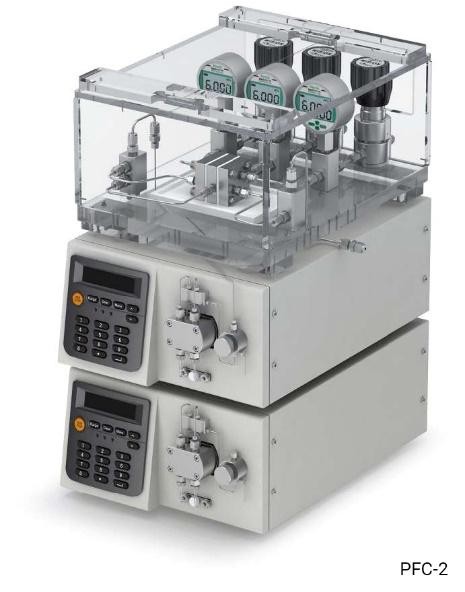

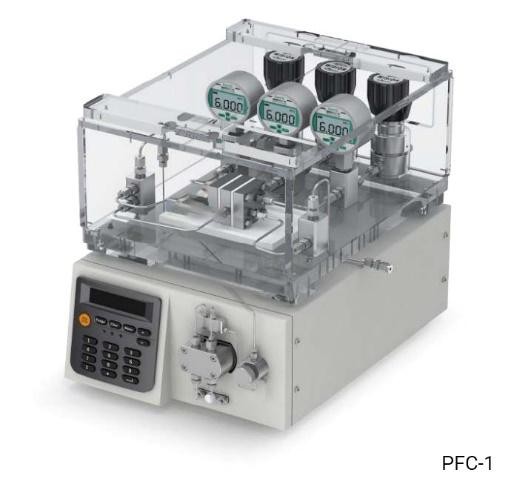

High-pressure flow test cell for gas diffusion Model: PFC-1/PFC-2

Description

Performance indicators
• Flow rate setting range: 0.01~50.00 mL/min, with a setting increment of 0.01 mL/min.
• Flow accuracy: ±1.0% (10.00 mL/min, 8.5 MPa, water, room temperature).
• Flow stability: RSD≤0.3% (10.00 mL/min, 8.5 MPa, water, room temperature).
• Maximum working pressure: 30 MPa (0.10~20.00 mL/min), 20 MPa (20.01~50.00 mL/min).
• Pressure Accuracy: Display pressure error within ±3% or 0.5 MPa.
• Pressure pulsation: ≤0.4 MPa (flow rate 10.00 mL/min, pressure 8.5±1.5 MPa).
• Pump sealing: Pressure 30 MPa, time 10 min, pressure drop not exceeding 1.5 MPa.
• Communication method: 485 interface communication.

Flow Cell indicators
• The cell is made of Ti.
• The volume of the cell is 1ml.
• The dimension of the cell is 50 mm × 50 mm.
• The internal channel is 10×10×10 mm.

Physical specifications
• Weight: 12 kg.
• Power supply: AC 220 V (±10%), 50 Hz.
• Power consumption: 200 W.
• Dimensions: 420 mm×300 mm×175 mm (L x W x H).

All sizes are standard sizes and can be custom-made according to specific requirements.
