Gas Diffusion Electrochemical Cell (Basic Series), Model: EC-GDE2

Description

Product Overview

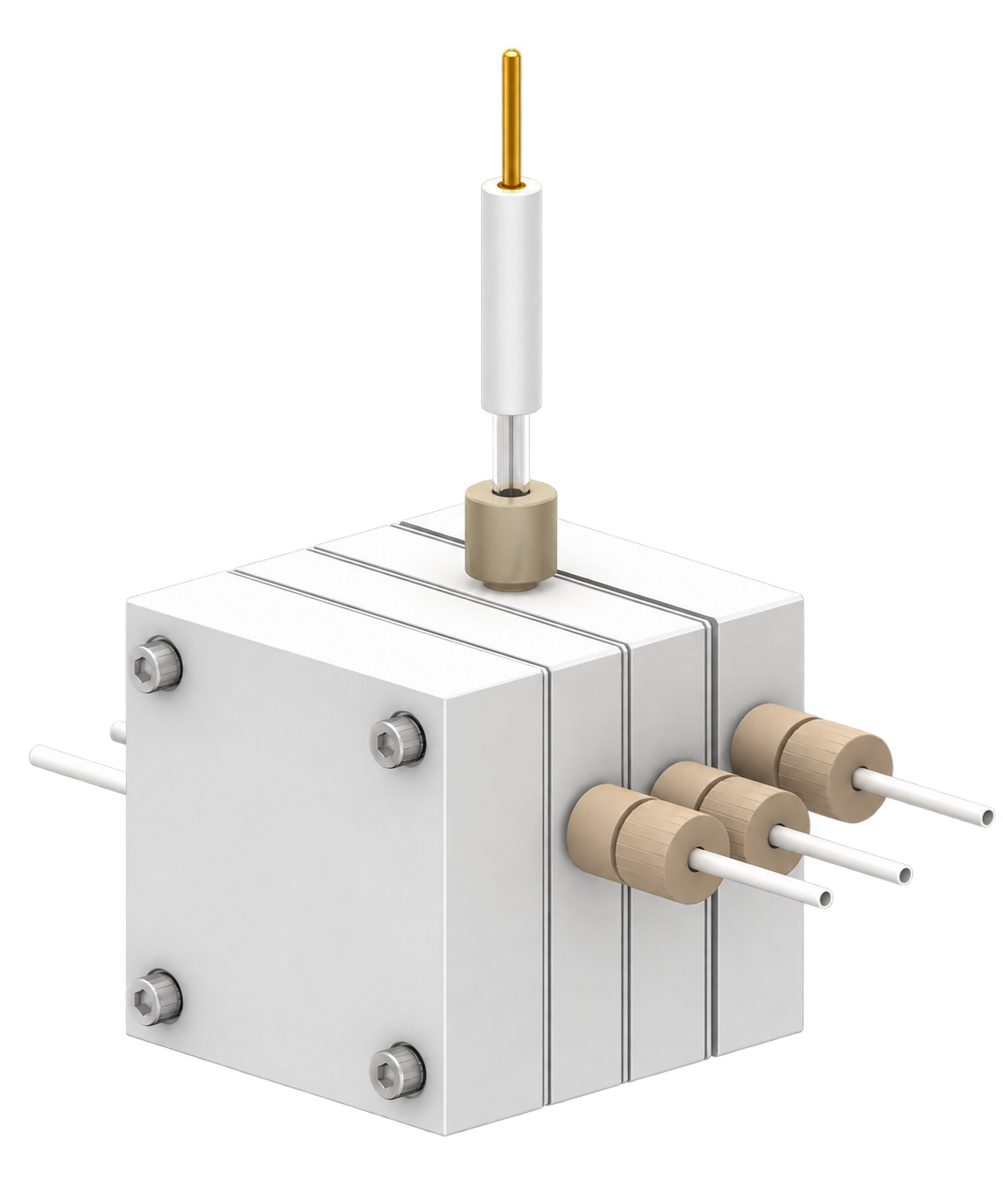

The EC-GDE2 is a cost-effective gas diffusion electrochemical flow cell designed for rapid feasibility validation and electrocatalyst screening. Its three-chamber, three-electrode architecture supports direct reactant-gas delivery to a sheet-type gas diffusion electrode and controlled electrolyte circulation, providing a flexible laboratory platform for gas-fed electrochemical research.

Key Features

• Cost-Effective Flow-Cell Platform: Supports rapid feasibility validation and routine gas-diffusion electrode screening.

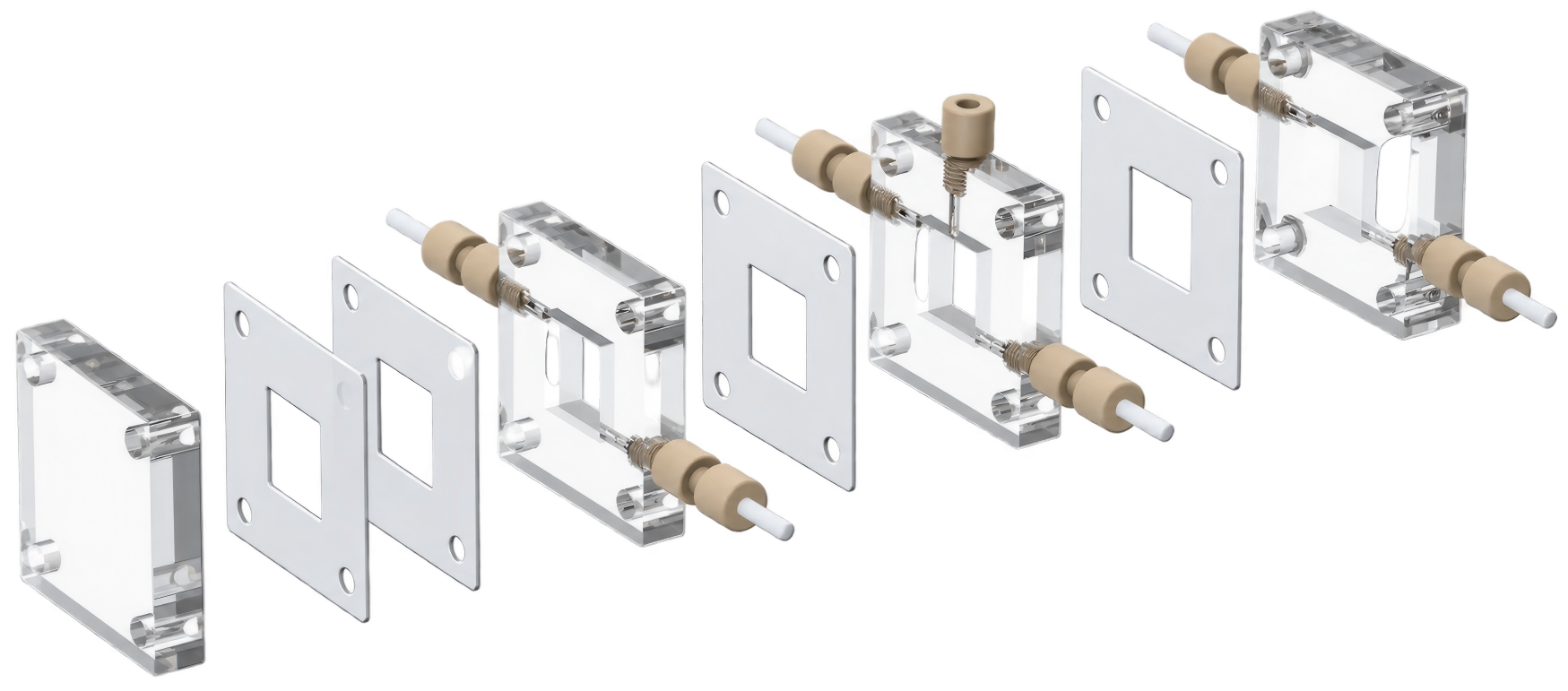

• Controlled Three-Chamber Operation: Separates gas, catholyte, and anolyte pathways for controlled three-electrode testing.

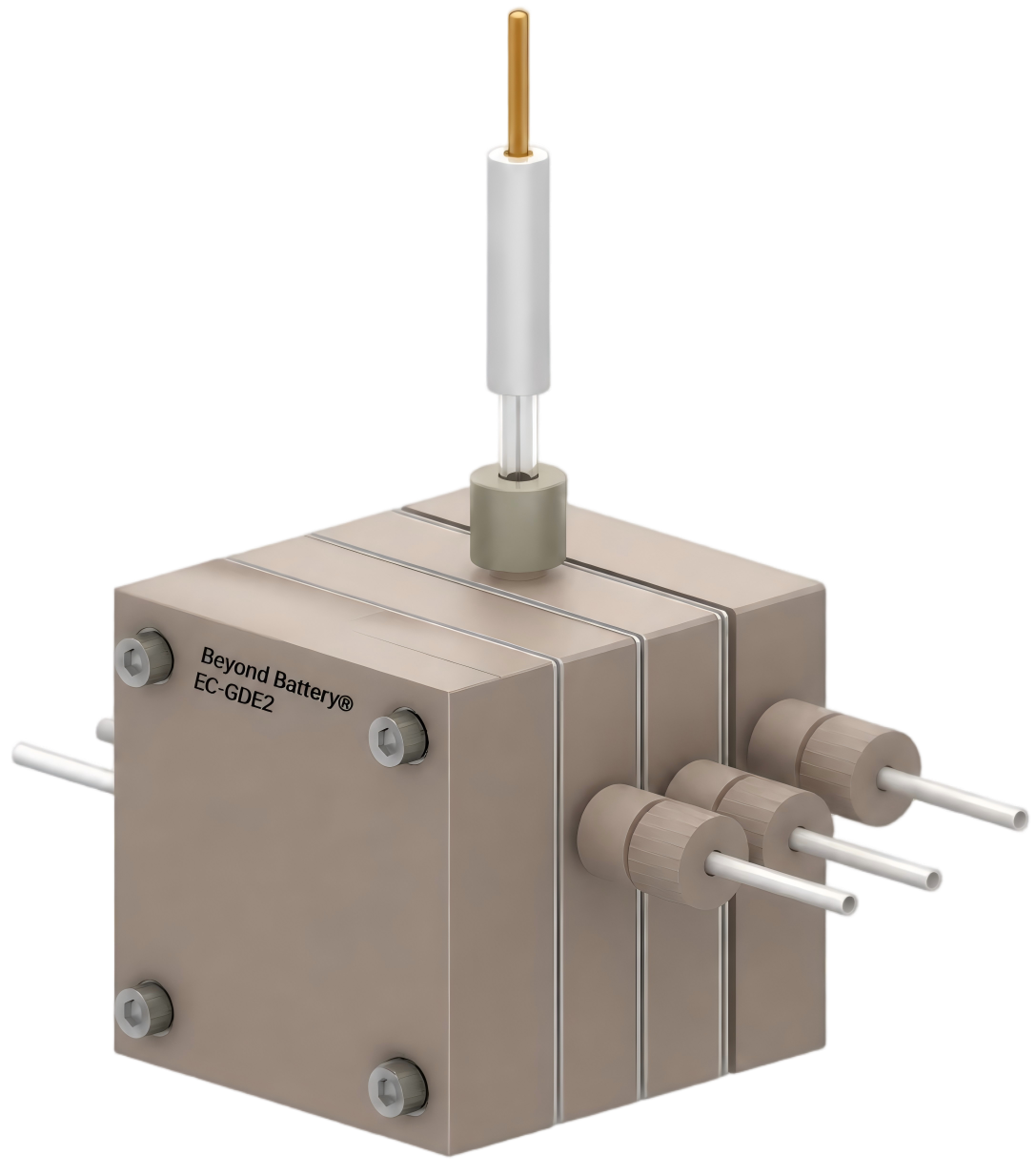

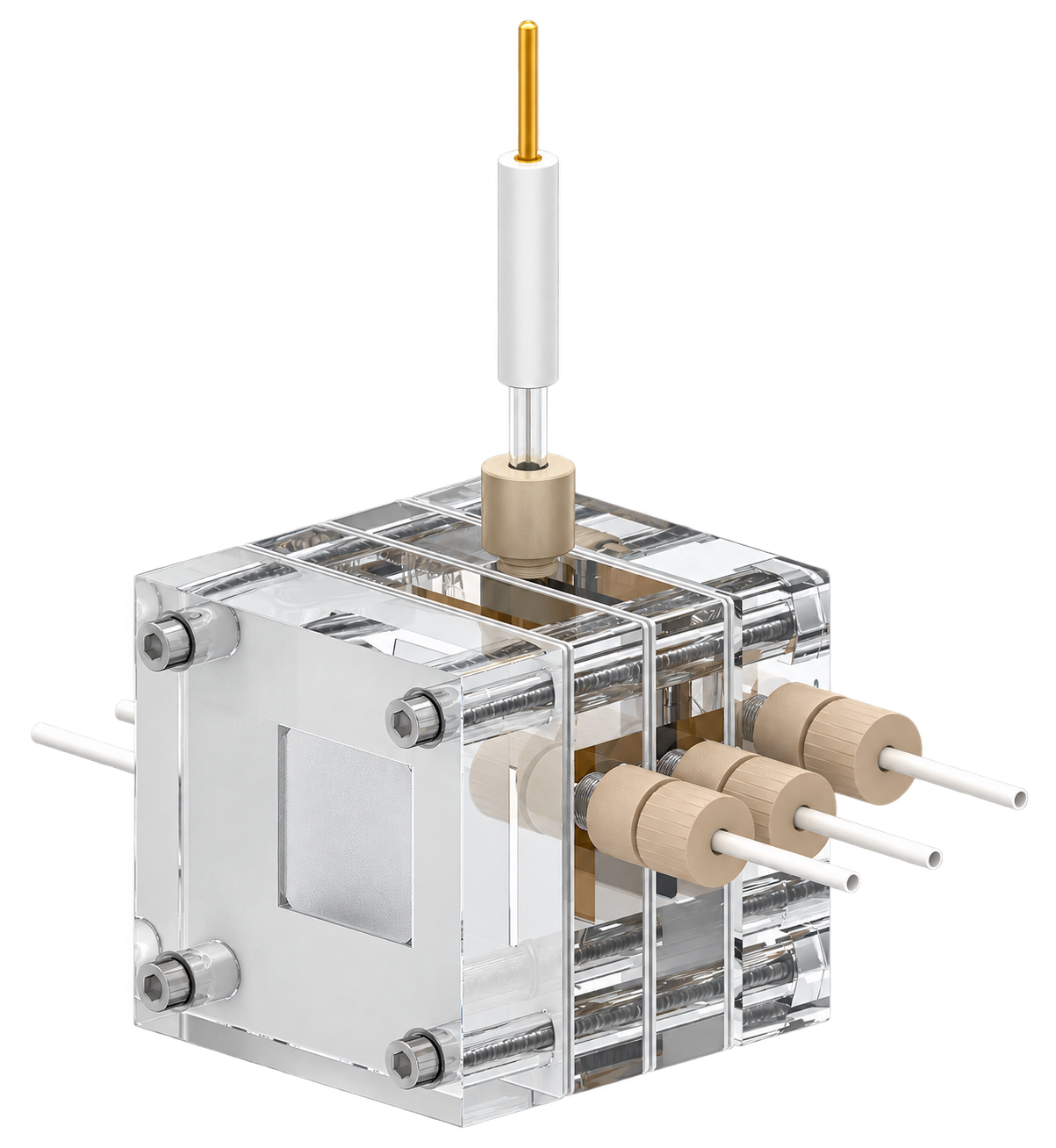

• Flexible Cell-Body Options: PMMA, PTFE and PEEK configurations support selection for different experimental requirements.

Technical Specifications

Chamber structure	Three-chamber
Electrode system	Three-electrode
Anode-cathode gap	20 mm
Active area	1 or 4 cm² (10 x 10 mm or 20 x 20 mm, customizable)
Working electrode	Sheet-type gas diffusion electrode
Reference electrode	Rod-type electrode
Counter electrode	Sheet-type electrode
Cell body material	PMMA / PTFE / PEEK

Instrument Compatibility

• Gas and Electrolyte Flow Compatibility: Compatible with regulated laboratory gas supplies and electrolyte-circulation systems equipped with mass flow controllers, gas flow meters and peristaltic pumps.
• Potentiostat Compatibility: Compatible with commercial potentiostats supporting three-electrode measurements, including CH Instruments (CHI660E, CHI760E, CHI1140C), Bio-Logic (VMP3), Corrtest Instruments (CS350M), Ivium Technologies (CompactStat.e20250), and Metrohm Autolab (PGSTAT204).

Published Application Example

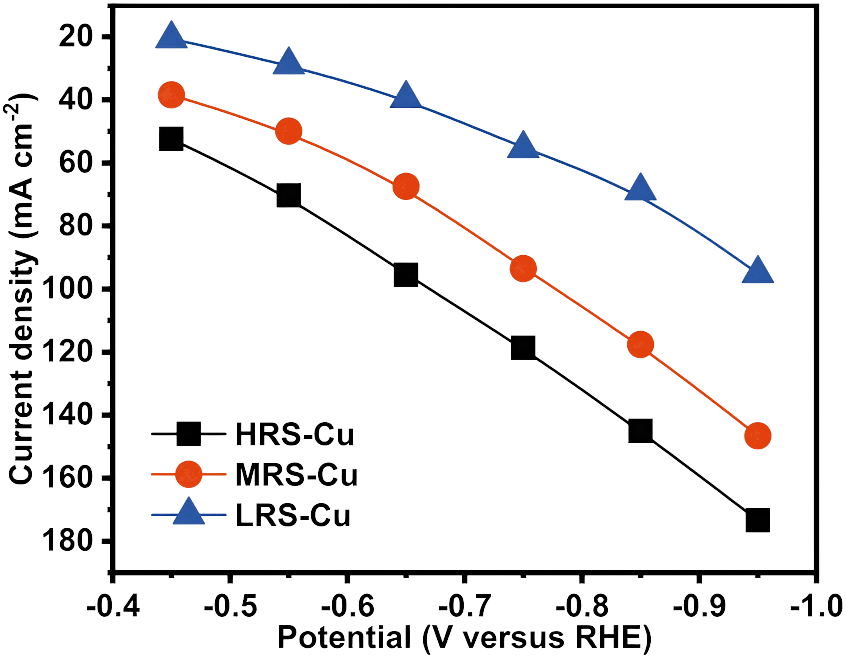

High-Rate CO₂ Electroreduction to Multicarbon Products: A three-chamber flow cell was used to evaluate Cu(100)-rich gas-diffusion electrodes for CO₂ electroreduction to ethylene and C₂+ products. Direct CO₂ delivery to the catalyst layer, continuous 2 M KOH circulation and three-electrode control enabled investigation of catalyst-facet effects, current-density response, product selectivity and short-term stability. The study demonstrates the role of this cell architecture in rapid laboratory-scale CO₂RR validation.

Reproduced from Zhang, G. et al. Nat. Commun. 2021, 12, 5745. CCBY 4.0.

Demonstrated EC-GDE2 Capabilities

• Supports direct reactant-gas delivery to sheet-type GDEs under continuous electrolyte-flow conditions.
• Enables controlled three-electrode evaluation of catalyst activity, product selectivity and current-density response.
• Suitable for rapid feasibility testing and short-term stability studies in CO2 electroreduction.

Additional Published Applications

• Lin, Y. et al. Nat. Commun. 2023, 14, 3575.

Product Identification Note: EC-GDE2 is the Beyond Battery product code for the same cell reported in the cited publications. The original articles use a different product designation.
