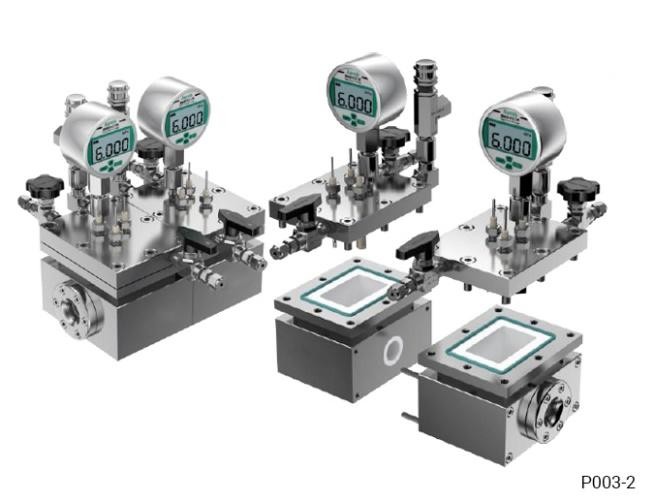

Dual chamber high-pressure cell (with externally exchange membrane) Model: P003-2

Description

• Modification: Added optical window based on P003-1 model
• Design: Based on P003-1, with an additional optical window
• Material: Titanium (Ti)
• Maximum Pressure Rating: 6 MPa
• Chamber Volume: 50 + 50 mL (minimum) or 100 + 100 mL; larger volumes available upon request
• Optical Window: Quartz Glass, with light transmittance >95%
• Valve Material: 304 Stainless Steel
• Electrode Configuration: Three-electrode system
• Chamber Arrangement: The working and reference electrodes share one chamber, while the counter electrode is housed in a separate chamber.
• Reference Electrode: Ag/AgCl Electrode (sold separately)
• Counter Electrode: Platinum Foil Electrode (sold separately)
• Working Electrode Mounting: Electrode Clip (sold separately)

All sizes are standard sizes and can be custom-made according to specific requirements.
