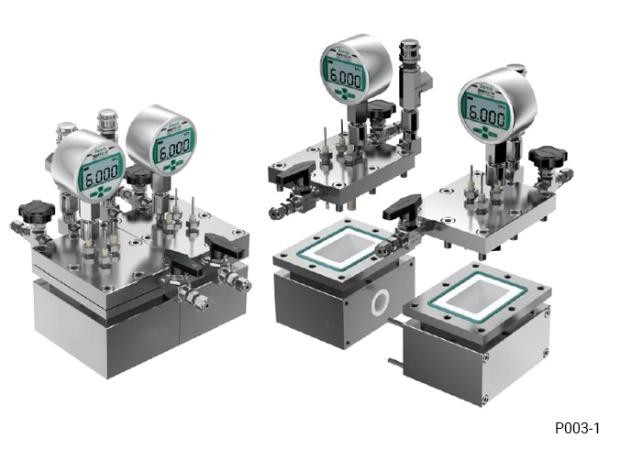

Dual chamber high-pressure cell (with externally exchange membrane) Model: P003-1

Description

Material: Titanium (Ti)

Maximum Pressure Rating: 6 MPa

Chamber Volume: 50 + 50 mL (minimum) or 100 + 100 mL; larger volumes available upon request.

Valve Material: 304 Stainless Steel

Electrode Configuration: Three-electrode system

Chamber Arrangement: The working and reference electrodes share one chamber, while the counter electrode is housed in a separate chamber.

Reference Electrode: Ag/AgCl Electrode (sold separately)

Counter Electrode: Platinum Foil Electrode (sold separately)

Working Electrode Mounting: Electrode Clip (sold separately)
