In Situ XRD Electrochemical Cell, Model: EC-XRD1

Description

Product Description

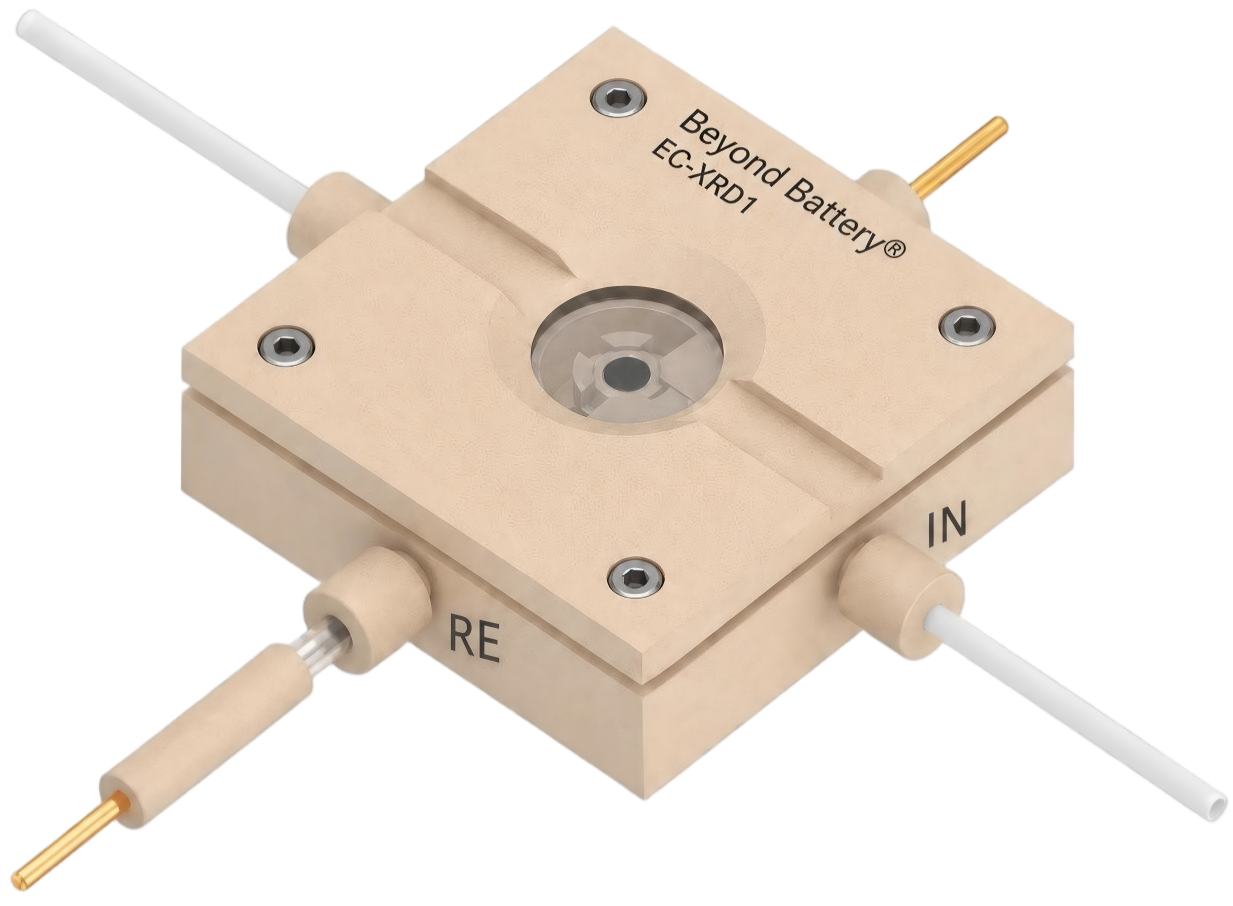

The EC-XRD1 provides direct X-ray access to an interchangeable disk working electrode through an X-ray-transparent beryllium (Be) window while maintaining three- electrode electrochemical control. Its compact flow-compatible design supports both syringe filling and external electrolyte circulation, making it suitable for tracking phase transformations and structural evolution of electrode materials under applied electrochemical conditions.

Product Features

• Direct Structural Observation: Be-window access and a short X-ray path enable direct probing of the working-electrode surface.
• Flexible Disk-Electrode Selection: Uses a standard Ø5 mm glassy carbon disk and supports interchangeable Au, Pt, Ag, graphite, and pyrolytic graphite disks.
• Operando Phase-Evolution Analysis: Enables potential- and time-dependent monitoring of crystalline phase transformations and structural evolution of electrode materials.

Technical Specifications

WE-optical window distance	< 3 mm
Optical window diameter	Ø25 mm (effective diameter Ø20 mm)
Chamber structure	Single-chamber
Electrode system	Three-electrode
Working electrode	Ø5 mm glassy carbon disk electrode (standard); Au, Pt, Ag, graphite, or pyrolytic graphite disk electrodes (optional)
Reference electrode	Ag/AgCl or Ag/Ag⁺ electrode
Counter electrode	Ø1 mm Platinum wire electrode
Cell body material	PEEK + Ti
Optical window material	Beryllium (Be)

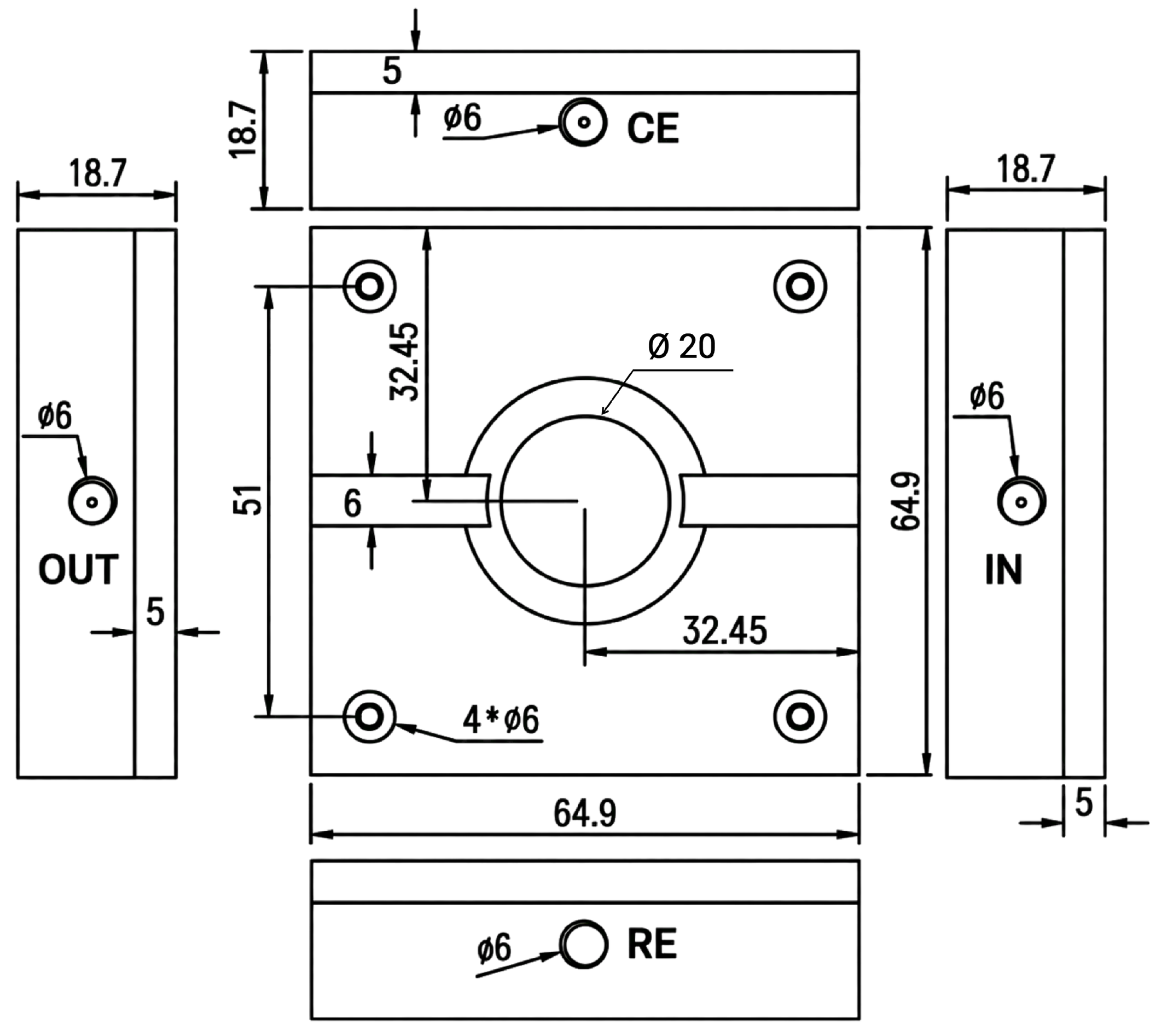

Cell body dimensions	L65 × W65 × H19 mm

Note: Solid beryllium is relatively stable and poses low skin-contact risk; avoid inhaling dust or aerosols and wash hands after handling.

Instrument Compatibility

• XRD System Compatibility: Compatible with laboratory X-ray diffractometers that accommodate external electrochemical cells. Measurement geometry, sample-stage clearance, and mounting should be confirmed before use.
• Potentiostat Compatibility: Compatible with commercial three-electrode potentiostats for electrochemical control during operando XRD measurements.

Related Published Application

Operando XRD Tracking of LiCoO₂ Structural Evolution during OER: A custom-designed three-electrode operando XRD/XAFS cell was used to track LiCoO₂ structural evolution during OER in 0.1 M KOH. As the potential increased stepwise from 1.1 to 1.7 V versus RHE, the LiCoO₂ (003) peak gradually weakened. New reflections at 12.87° and 25.88° appeared above 1.50 V, indicating K₀.₃CoO₂(H₂O)₀.₄ formation associated with potential-dependent cation intercalation and structural transformation.

Reproduced from Chen, J. et al. J. Synchrotron Radiat. 2025, 32, 1272–1281. CC BY 4.0.

Capabilities Relevant to the EC-XRD1

• Simultaneous XRD acquisition and electrochemical control.
• Detection of potential-dependent crystalline phase transformations.
• Correlation of diffraction evolution with applied electrode potential.

Note: The cited publication used a custom-designed operando XRD electrochemical cell rather than the Beyond Battery EC-XRD1. The reference is included to demonstrate the relevant research methodology and should not be interpreted as describing or evaluating the EC-XRD1.
