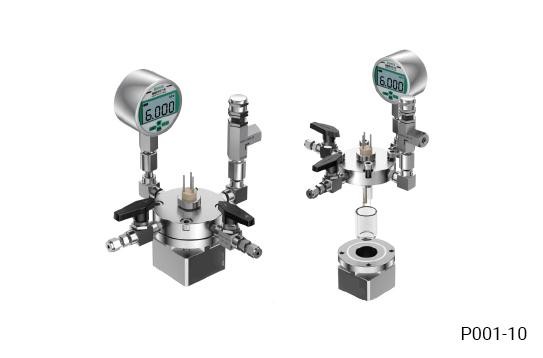

Small volume single chamber high-pressure electrochemical cell Model: P001-10

Description

  • Material: Titanium (Ti)
  • Max Pressure Resistance: 6Mpa
  • Volumes: Available in 10ml, customizable based on requirements
  • Valve Material: Stainless Steel 304
  • Reference Electrode: Ag/AgCl electrode (sold separately)
  • Counter Electrode: Pt plate electrode (sold separately)
  • Working Electrode Mounting: Electrode Clip (sold separately)
Model Specifications
P001-1 50&100ml
P001-2 50&100ml, with optical window
P001-10 10ml

All sizes are standard sizes and can be custom-made according to specific requirements.
