Description

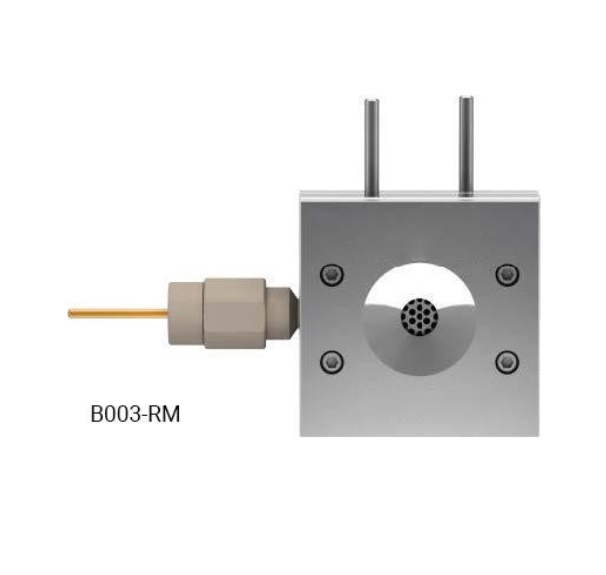

This electrochemical cell is built upon the foundation of B002-RM by incorporating a reference electrode (Ag/AgCl). The in-situ Raman electrochemical cell is meticulously designed for investigating electrode materials, offering in-situ spectroscopy and morphology analysis during electrochemical experiments.
Features

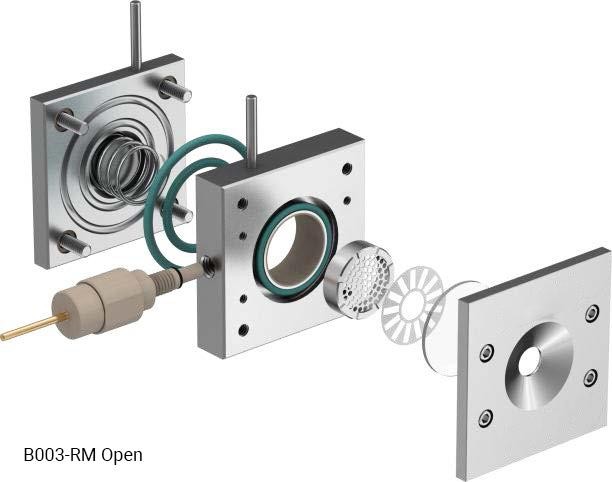

Equipped with both positive and negative electrode connection, the cell ensures isolation through a membrane (to be provided by the user). Noteworthy for its exceptional sealing capability and assembly reproducibility, this electrochemical cell facilitates evaluation by adjusting the load using a spring mechanism.
It is versatile for a wide range of battery cycling tests and characteristic assessments. Its user-friendly design requires only the tightening of screws, with an excellent chemical-resistant O-ring ensuring airtightness before charging/discharging testing.
Compatible with assembled inside a glovebox, the airtightness ensures this electrochemical cell seamlessly transitions to ambient environment for testing or transport. Its easy disassembly feature allows for safe removal post charging/discharging tests without compromising the integrity of the samples. Rapid assembly and disassembly make cleaning a simple process.
Key specifications include a working electrode distance from the optical window of less than 2mm, an optical window diameter of 8mm, and overall dimensions of 50x50x24mm. Elevate your electrochemical research with our cutting-edge cell that seamlessly combines functionality, reliability, and user convenience.
