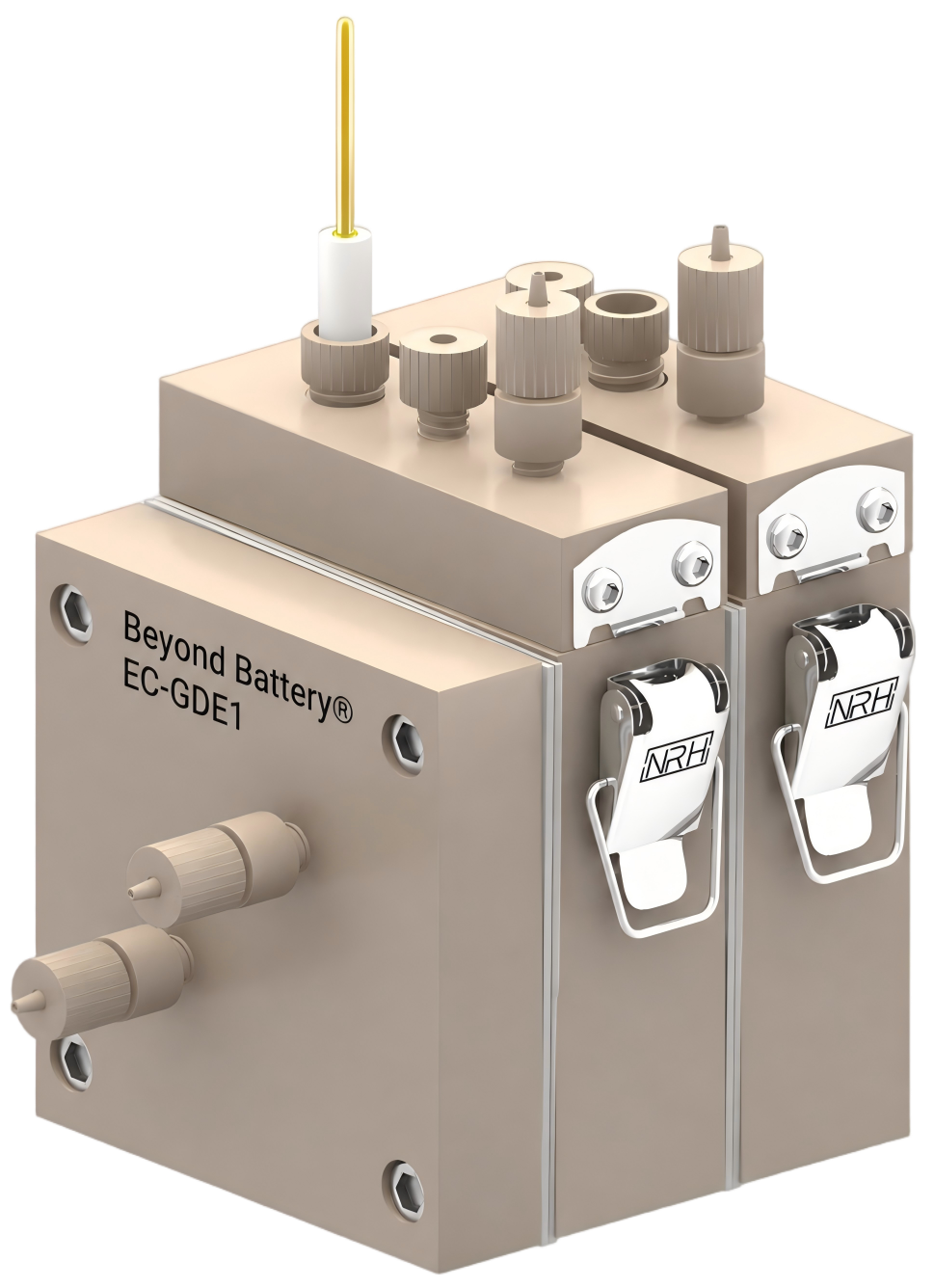

Gas Diffusion Electrochemical Cell (Entry-Level), Model: EC-GDE1

Description

Product Overview

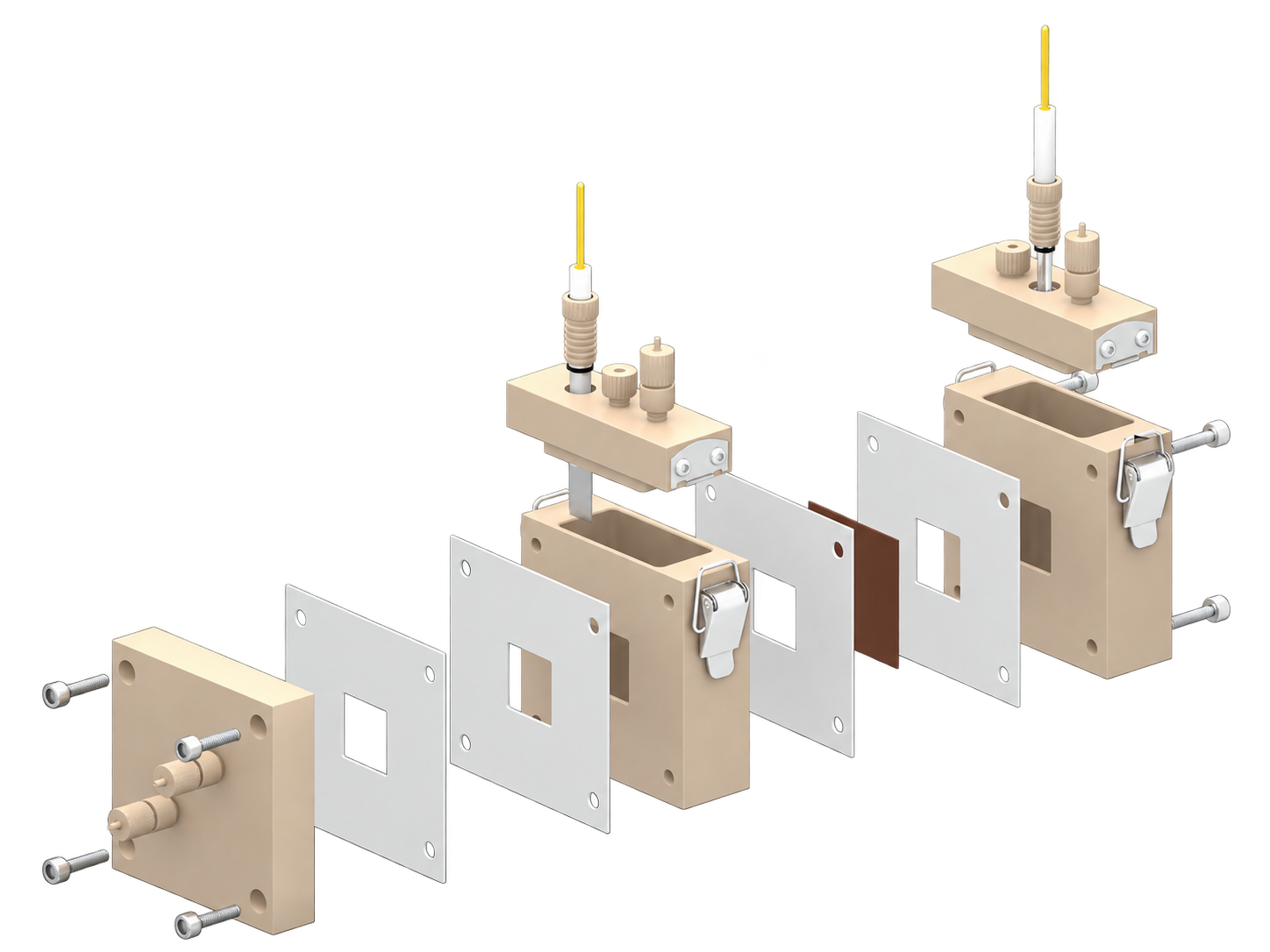

The EC-GDE1 is an entry-level gas diffusion electrochemical cell designed for introductory electrochemical experiments. It features a PEEK three-chamber body and a three-electrode configuration. Quick-opening lids simplify assembly and access, while gas inlet and outlet ports on both electrode sides and dedicated sampling ports support flexible experimental configurations.

Key Features

• Quick-Opening Design: Quick-opening lids simplify cell assembly, access and disassembly.
• Three-Chamber Configuration: A three-chamber, three-electrode design supports entry-level electrochemical experiments.
• Flexible Port Arrangement: Gas inlet and outlet ports on both electrode sides, together with dedicated sampling ports, support flexible experimental configurations.

Technical Specifications

Chamber structure	Three-chamber
Electrode system	Three-electrode
Anode-cathode gap	25 mm
Active area	1 cm² (10 x 10 mm, customizable)
Working electrode	Sheet-type gas diffusion electrode
Reference electrode	Rod-type electrode
Counter electrode	Rod-type electrode
Cell body material	PEEK

Instrument Compatibility

• Gas Supply Compatibility: Compatible with regulated laboratory gas supply systems equipped with pressure regulators, mass flow controllers or gas flow meters for stable and controlled gas delivery during electrochemical experiments.
• Potentiostat Compatibility: Compatible with commercial potentiostats supporting three-electrode measurements, including CH Instruments (CHI660E, CHI760E, CHI1140C), BioLogic (VMP3), and Corrtest Instruments (CS350M).

Related Published Application

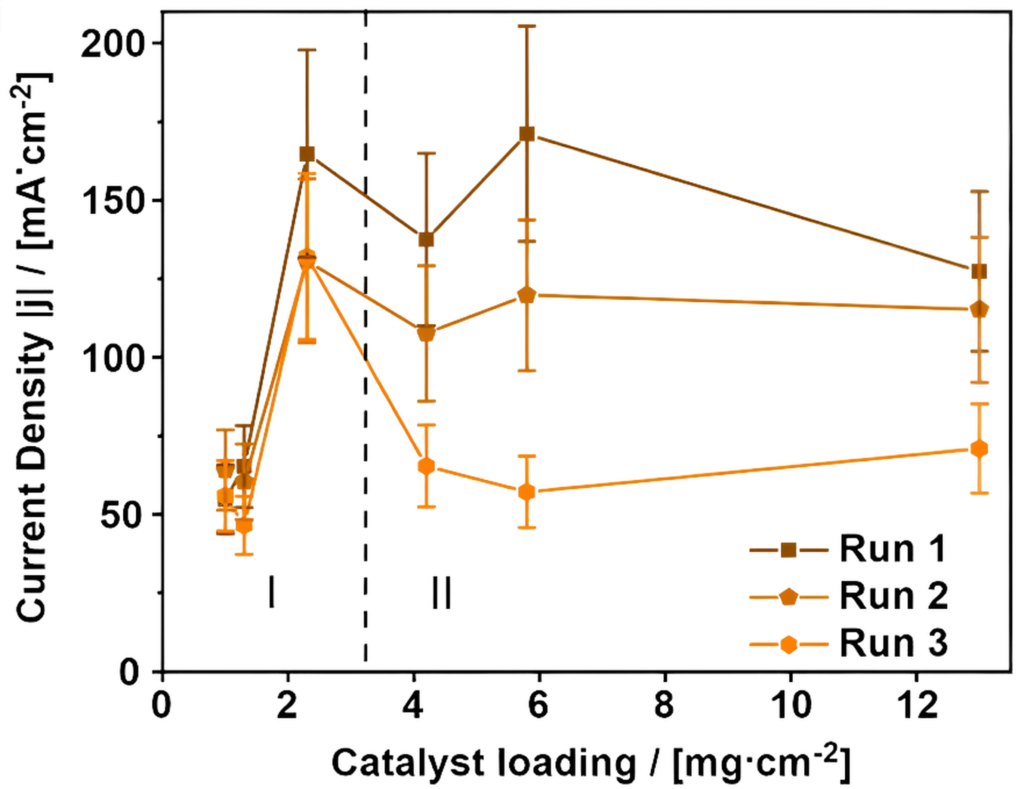

Static Gas-Fed CO Electroreduction to Formate: A commercial static, gas-fed, three-electrode cell was used to evaluate SnO-coated gas diffusion electrodes for CO electroreduction to formate. Using a static electrolyte and controlled CO supply, the setup enabled systematic investigation of catalyst loading, current-density response and early-stage electrode stability. This comparable cell architecture illustrates the intended role of the EC-GDE1 in laboratory-scale GDE screening and gas-fed electrochemical studies.

Reproduced from Theußl, V. et al. Sustain. Energy Fuels 2024, 8, 1483–1494. CC BY 3.0.

Capabilities Relevant to the EC-GDE1

• Supports laboratory testing of sheet-type gas diffusion electrodes under static-electrolyte conditions.
• Enables comparison of catalyst loading, electrochemical response, and product selectivity.
• Suitable for investigating early-stage electrode performance changes during gas-fed electrolysis.

Note: The referenced study used a Gaskatel FlexCell® PTFE cell with a configuration comparable to the EC-GDE1 and is included solely as a related application example.
