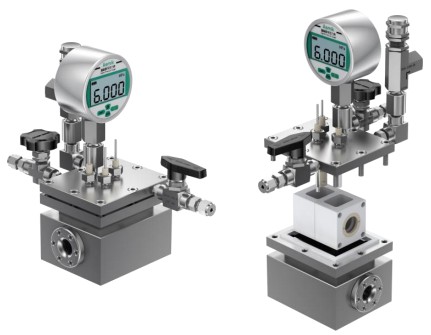

Dual chamber high-pressure cell (with Internal replaceable film) Model: P002-2

Description

• Design: Based on P002-1, with an additional optical window.
• Material: Titanium (Ti)
• Maximum Pressure Rating: 6 MPa
• Chamber Volume: 20 + 20 mL (20 mL per chamber); custom volumes available upon request.
• Optical Window: Quartz Glass, with light transmittance >95%
• Valve Material: 304 Stainless Steel
• Electrode Configuration: Three-electrode system
• Chamber Arrangement: The working and reference electrodes share one chamber, while the counter electrode is housed in a separate chamber.
• Reference Electrode: Ag/AgCl Electrode (sold separately)
• Counter Electrode: Platinum Foil Electrode (sold separately)
• Working Electrode Mounting: Electrode Clip (sold separately)

All listed dimensions are standard sizes; custom dimensions are available upon request.
