Visual Membrane Electrode Reaction Cell, Model: MEA-visualized

Description

Product Description

• This electrolysis cell is primarily designed for research-based testing of electrochemical carbon dioxide reduction, alkaline anion exchange membrane water electrolysis, and other electrochemical processes.

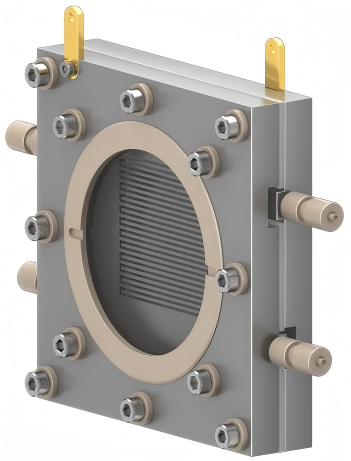

• The anode and cathode are both equipped with optical visualization windows, which can be used for in situ observation and high-speed photography.
• The bipolar plate and the fastening protective plate are made of high-purity Ti.
• The cathode is a hollow serpentine flow channel, and the anode is a hollow multi-parallel flow channel. The channel type is customizable.
• Customizable parameters include flow channel type, effective active area, bipolar plate thickness, and flow channel width, according to specific requirements.
• The optical visualization windows can be customized to be made of PMMA transparent windows or other materials.
• Effective active areas can be customized to 20*20mm, 30*30mm, or 50*50mm.
  Both the thickness of the bipolar plates and the width of the channels can be customized.

Please feel free to contact us for more information.
