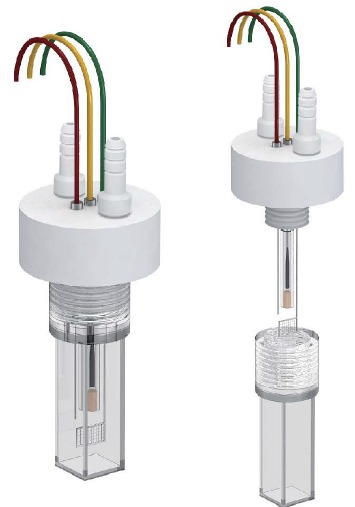

Small quartz spectro-electrochemical cell (sealed cuvette type), C013-3

Description

Description:

• The cell is made of all-quartz fused and polished, transparent on all sides.
• Optical window of the electrochemical cell is made of quartz, with a transmittance >95%.
• The cover is made of PTFE.
• The electrochemical cell is equipped with gas inlet and outlet devices, and the electrochemical cell is equipped with electrodes, Ag/AgCl reference electrode (diameter of 3.0mm), platinum wire counter electrode (diameter of 0.5mm), glassy carbon working electrode (diameter of 3mm).
• The working electrode of the electrochemical cell can also be replaced with a gold disc, platinum disc or other electrodes with a diameter of 3mm according to requirements.
• The electrochemical cell is a square cell body with a size of 12*12mm. The electrochemical cell is an absolutely sealed system. The quartz sealing part of the electrochemical cell is designed with an internal thread port and sealed by tightening the cover made of PTFE.
• The electrodes of the electrochemical cell are inserted by easy-plug in to the PTFE cover to ensure sealing.
