Membrane Electrode Assembly Electrolyzer Cells (Metal Bipolar Plate Type), Model: EC-MEA1

Description

Product Overview

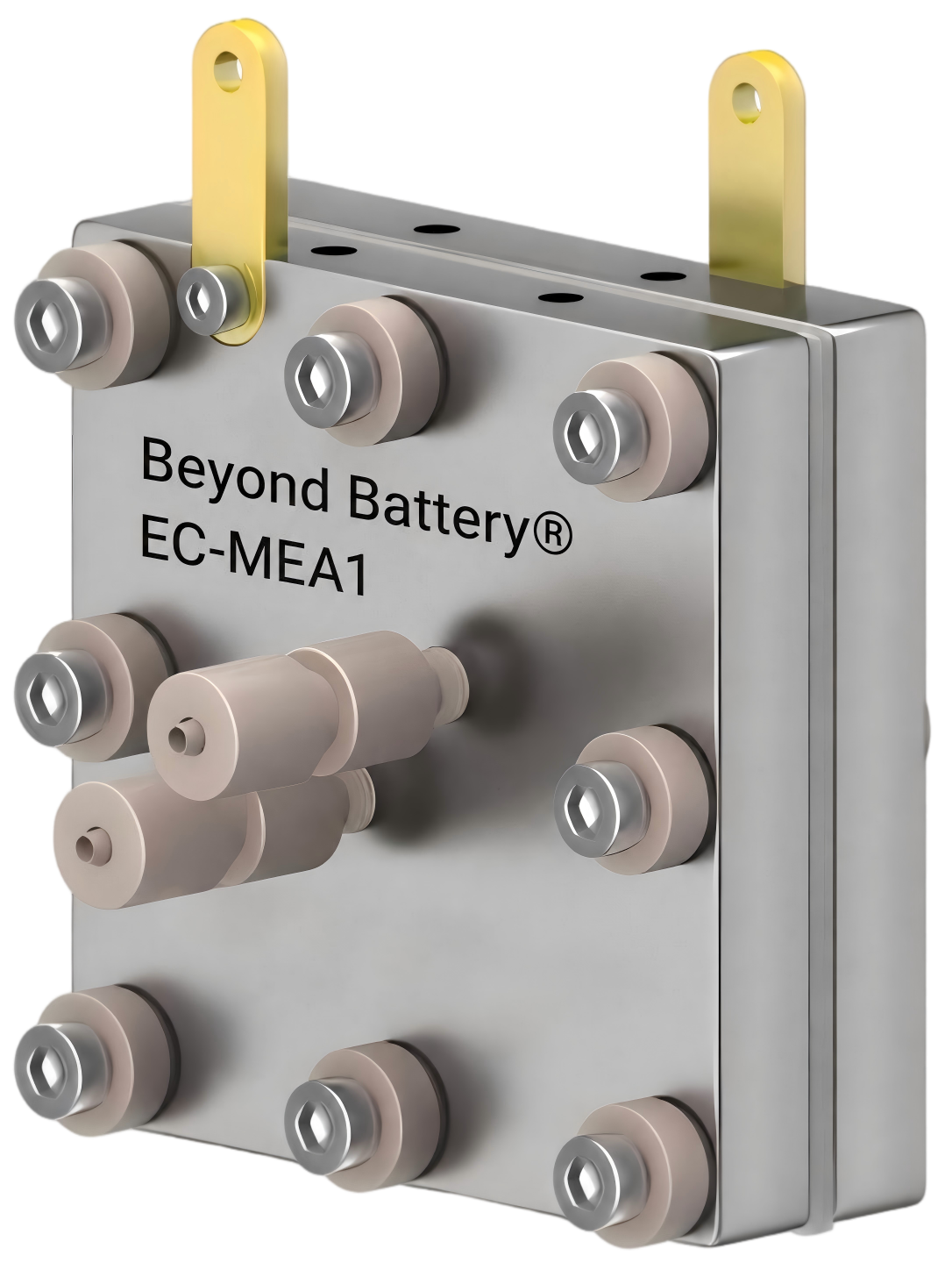

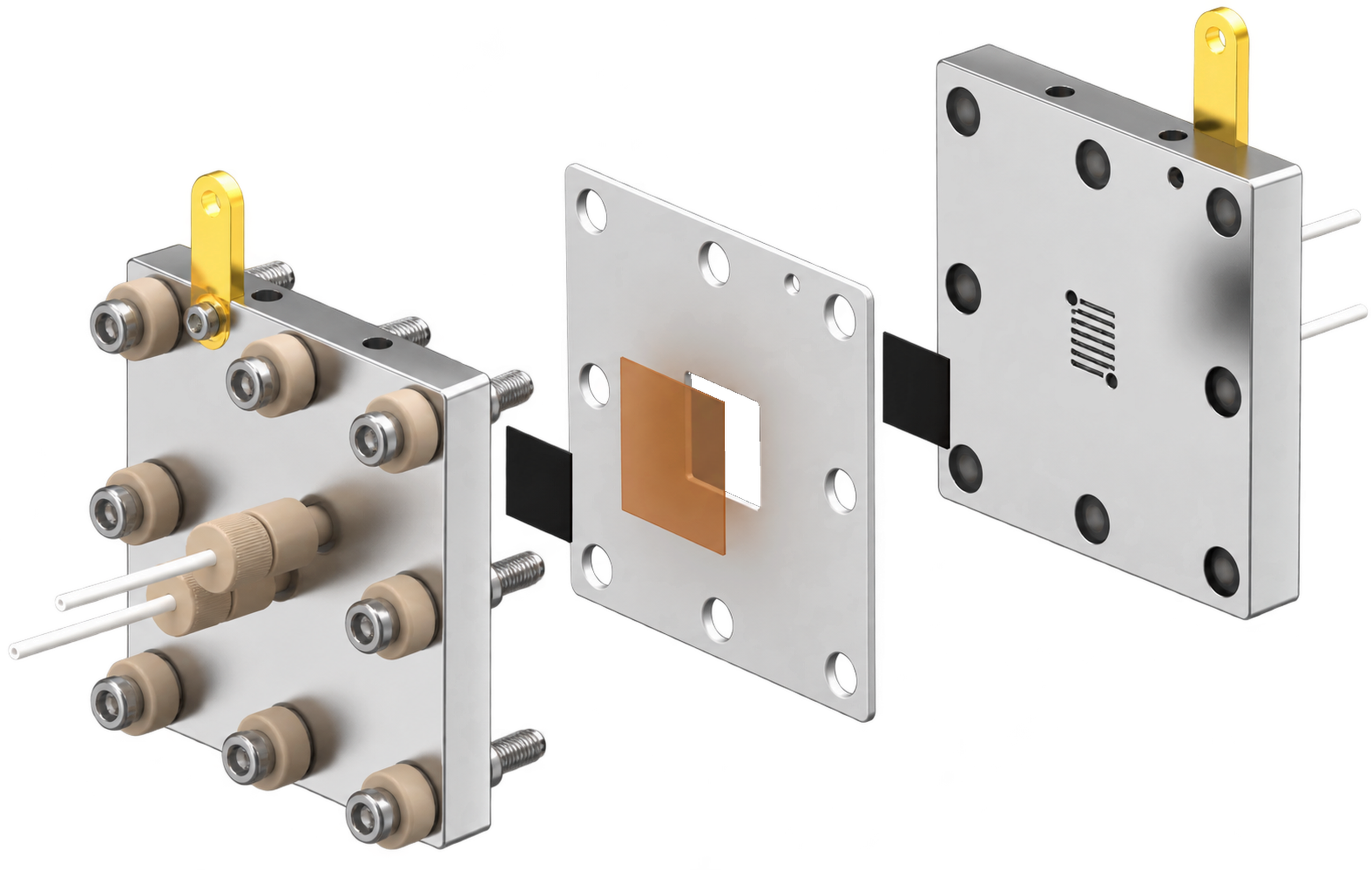

The EC-MEA1 is a general-purpose bipolar-plate MEA electrolyzer cell for fundamental electrocatalysis research, including fuel cells, CO₂ reduction and water electrolysis. It also supports electrosynthesis and electrochemical wastewater-treatment studies. High-purity titanium plate construction, optional high-purity nickel plates, customizable flow fields, and standard heating and temperature-measurement ports provide a corrosion-resistant platform for constant-temperature laboratory testing.

Key Features

• Temperature-Controlled Electrochemical Testing: Standard heating and temperature-measurement ports support constant-temperature testing under defined electrochemical conditions.
• Corrosion-Resistant Plate Construction: High-purity titanium plates are standard, with high-purity nickel plates available for specialized electrochemical environments.
• Customizable Flow-Field Design: Supports serpentine, parallel, vein-pattern, comb-type and point-array flow fields for different reactant-distribution requirements.

Technical Specifications

Chamber structure	Two-chamber
Electrode system	Two-electrode
Anode / cathode	Sheet-type electrodes
Flow-field area	1, 4, 5, 9, 25 or 100 cm² (square); customizable
Flow-field size	10 x 10, 20 x 20, 22.4 x 22.4, 30 x 30, 50 x 50, or 100 x 100 mm; customizable
Flow-field configurations	Serpentine, parallel, vein-pattern, etc., customizable
Flow-field plate material	Ti, Ni, PEEK optional
Sealing design	Dual O-ring sealing grooves

Typical Applications

• CO₂ Electroreduction: Evaluating MEA performance under controlled flow and temperature conditions.
• Alkaline Water Electrolysis: Testing anion-exchange-membrane assemblies under controlled thermal conditions.
• Fuel Cell Research: Investigating catalyst-coated membranes, sheet-type electrodes and reactant distribution.
• Electrosynthesis and Wastewater Treatment: Studying flow-assisted electrochemical conversion and pollutant-removal processes.

Instrument Compatibility

• Gas Supply Compatibility: Compatible with regulated gas-supply systems equipped with mass flow control, including Alicat Scientific MC-Series mass flow controllers and M-Series flow meters.
• Potentiostat Compatibility: Compatible with commercial potentiostat for two-electrode MEA testing, including Corrtest Instruments (CS350M).

Published Application Example

High-Rate CO₂ Electroreduction on Cu(100)-Rich Films in MEA Systems: Zhang et al. evaluated Cu(100)-rich electrodes for high-rate CO₂ electroreduction in a membrane electrode assembly electrolyzer. In a 4 cm² MEA configuration operated at 120 mA cm⁻², the system achieved an ethylene Faradaic efficiency of 55.8% and a full-cell electricity conversion efficiency of 40.2% toward C₂+ products, with stable operation for approximately 4.5 h. The system was further scaled to 25 cm² and operated at a total current of 12 A (480 mA cm⁻²), achieving a C₂+ single-pass yield of 13.2%.

Reproduced from Zhang, G. et al. Nat. Commun. 2021, 12, 5745. CC BY 4.0.

Demonstrated EC-MEA1 Capabilities

• Supports zero-gap MEA configurations with serpentine flow fields for CO₂ electrolysis.
• Enables electrode scale-up from small laboratory areas to larger active surfaces.
• Allows stable operation under alkaline conditions at industrially relevant current densities.

Product Identification Note: EC-MEA1 is the Beyond Battery product code for the same MEA cell reported in the cited publication. The original article does not use the EC-MEA1 designation.
