Description
The electrochemical cell is crafted from high-purity titanium. The electrochemical cell features positive and negative poles, with isolation facilitated by a user-provided membrane.
Sealing and Reproducibility: Exceptional sealing properties and assembly reproducibility characterize the electrochemical cell.
Load Evaluation Mechanism: Evaluation of the electrochemical cell involves adjusting the load using a spring mechanism.
Versatile and Simple Utilization: Connected to charging/discharging equipment, the electrochemical cell finds application in a wide range of battery cycling tests and characteristic evaluations. The electrochemical cell is designed for easy disassembly post charging/discharging tests, safeguarding the integrity of the samples. The electrochemical cell requires only the tightening of screws, with chemically resistant O-rings ensuring outstanding airtightness.
Adaptability for Glovebox Assembly: Assembled within a glovebox, the electrochemical cell can be seamlessly used in outdoor settings.

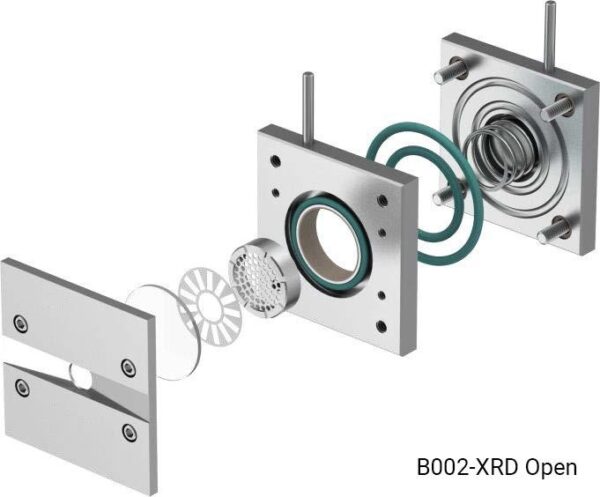

Quick Assembly and Disassembly: Swift assembly and disassembly of the electrochemical cell facilitate convenient cleaning.
Optical Specifications:
Working electrode distance from the optical window: <2mm.
Optical window diameter: 8mm.
Channel width: 8mm.
Dimensions (length, width, height): 50*50*20mm.
