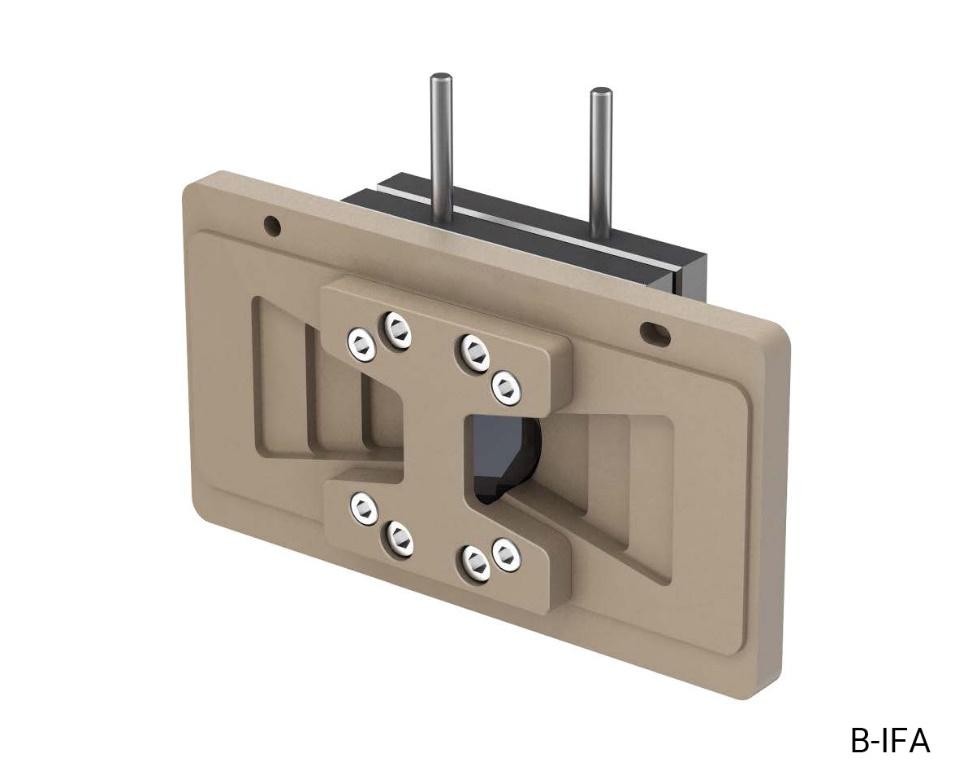

In-situ infrared Li-ion testing cell Model: B-IFA

Description

Experience innovation with our cutting-edge electrochemical cell featuring advanced materials and precise engineering:

Infrared Window Material: Crafted from single crystal silicon, our electrochemical cell has superior infrared window ensures exceptional performance and sensitivity in your experiments.

Cell Body Material: Constructed from high-purity titanium, the robust cell body provides durability and stability, meeting the demands of rigorous electrochemical studies.

Cell Dimensions: Compact and efficient, the cell measures 50x50x20mm, optimizing space while delivering outstanding functionality.

Crystal Technology: Utilizing silicon (Si) as the crystal material sets our electrochemical cell apart. In conventional infrared window materials like Ge, ZnSe, and Si, our choice of Si eliminates issues associated with Ge’s reactivity, ensuring optimal electrochemical responses. This decision is especially critical for applications where other materials like Ge and ZnSe may exhibit instability in acidic or alkaline solutions, making them unsuitable for use as window materials in electrochemical ATR-SEIRAS.

Innovative Load Adjustment: Our electrochemical cell employs a spring mechanism to dynamically change the load, ensuring a close contact between the test cell’s positive and negative electrode samples and the membrane. The dual O-ring sealing design guarantees a secure and airtight cell body.
