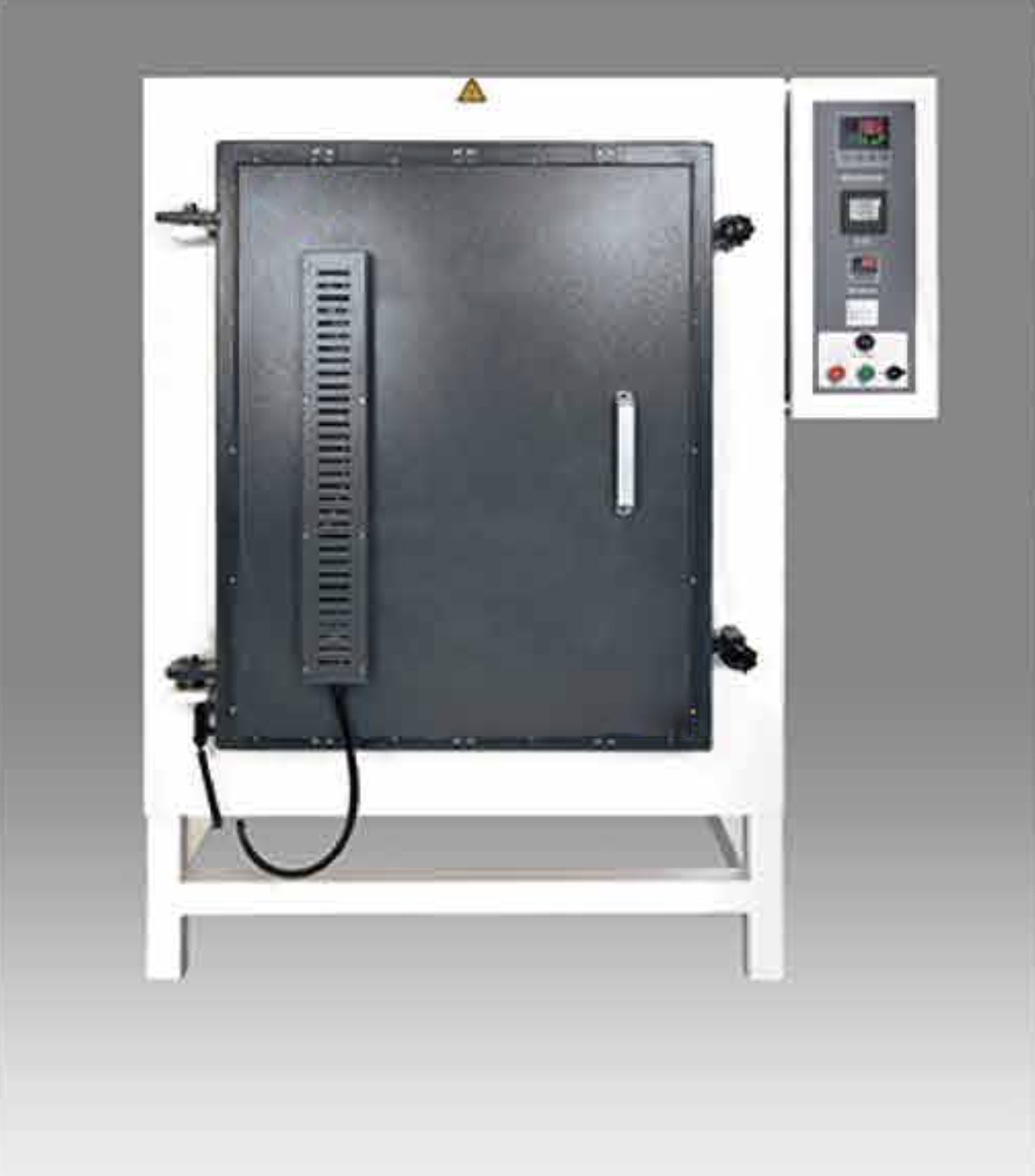

Stainless Steel Ceramic Fiber Muffle Furnace (CFMF 1400°C Series)

Description

Models Available: IMF2-64/14P, IMF2-72/14P, IMF2-96/14P, IMF2-150/14P, IMF2-160/14P, IMF2-190/14P, IMF2-288-14P

  • Maximum Operating Temperature: 1400°C
  • Temperature Control Accuracy: ±1°C

Precision temperature control up to 1400°C for sintering, melting, elemental analysis, and physical measurements.

Product Features:

  • High-quality ceramic fiber chamber delivers excellent heat resistance and low energy loss

  • Broad heating area ensures uniform temperatures and consistent performance

  • Smart structural design improves heat distribution and reduces waste

  • Fast heating and cooling cycles support efficient operation

  • Precision PID controller maintains temperatures within ±1°C, with stability under ±0.1°C

  • Automatic door system reduces heat loss during loading and unloading

  • Programmable controls allow flexible, multi-step temperature profiles and curve tracking

  • Suitable for sintering, melting, analysis, testing, ashing, and sample preparation

  • Built to GB/T 28849-2012 standards

Safety Features:

  • Equipped with an over-temperature alarm, leakage protection, and an automatic door interlock system for operational safety.
  • Door interlock function prevents the door from being opened while the furnace is running; if an abnormal situation occurs, the door automatically ejects open to protect the equipment and the operator’s safety.

Specification:

Model IMF-64-14P IMF-72-14P IMF-96-14P IMF-150-14P IMF-160-14P IMF-190-14P IMF-288-14P
Max Operating Temperature (°C) Max 1400°C, working temperature 1350°C
Temperature Control Accuracy (°C) ±1
Temperature Display Resolution (°C) 0.1
Heating Rate 1–20°C/min adjustable
Exterior Spray-coated steel plate
Chamber Lining Multi-layer ceramic fiber composite material
Heating Elements High-temperature alloy heating elements, positioned on left, right, and rear sides
Temperature Control PID intelligent temperature controller
Display Digital LED temperature display
Safety Protection Over-temperature alarm, leakage protection, door interlock
Program Function Automatic program control, multi-segment programming, up to 30 segments programmable for flexible temperature profiles
Heating Power (KW) 21 21 22 25 28 36 45
Power Supply AC380V
Chamber Size (W×H×D mm) 400×400×400 400×600×300 400×600×400 600×600×400 500×500×400 500×530×720 700
