Description
Product Overview

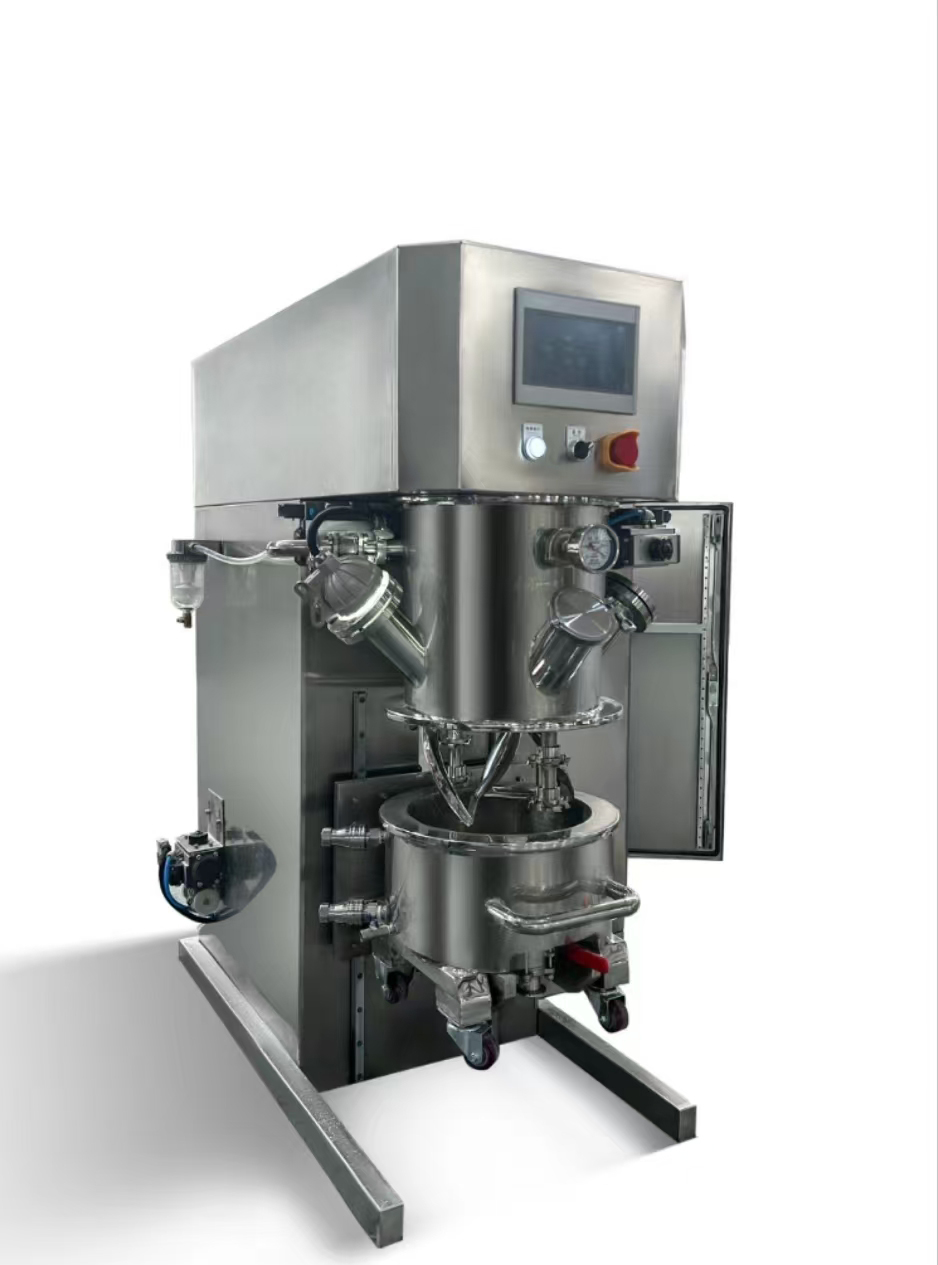

The dual planetary dispersion mixer is a high-efficiency mixing equipment integrating dispersion and mixing functions. It features low-speed stirring components and high-speed dispersion components. The low-speed stirring unit employs planetary gear transmission, allowing the mixing paddle to rotate both orbitally and axially. This dual motion ensures comprehensive movement of materials (up/down and circumferential), achieving ideal mixing results in a short time.
Key Features
- Double-layer stainless steel container: The barrel is precision-crafted from high-quality 304 stainless steel, lathe-finished, and polished via an automated precision polisher for high accuracy.
- Variable-speed stirring motor: Equipped with a gearbox and frequency conversion adjustment to adapt to different processes and viscosities by selecting appropriate speeds and torque.
- Dual dispersion paddles: Facilitate rapid and uniform mixing by agitating materials in all directions.
- Compact design: Space-saving with minimal footprint.
- Aesthetic appearance: Features a modern geometric design for a sleek and visually appealing structure.
Technical Parameters
| Parameter | Specification |
| Mixing Speed | Max 600 RPM |
| Multi-speed Function | 3 preset speed stages |
| Container Volume | 500ml stainless steel vacuum mixing tank (other sizes available) |
| Mixing Time | Adjustable (0–600 minutes) |
| Power Supply | AC220V |
| Rated Power | 200W |
| Dimensions (L×W×H) | Approx. 330mm × 320mm × 570mm |
| Weight | Approx. 35kg |
