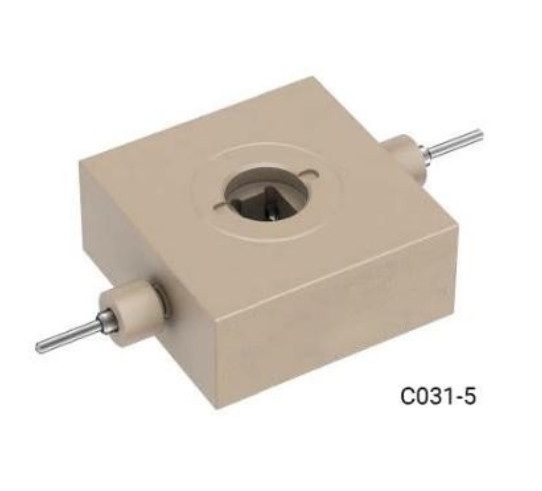

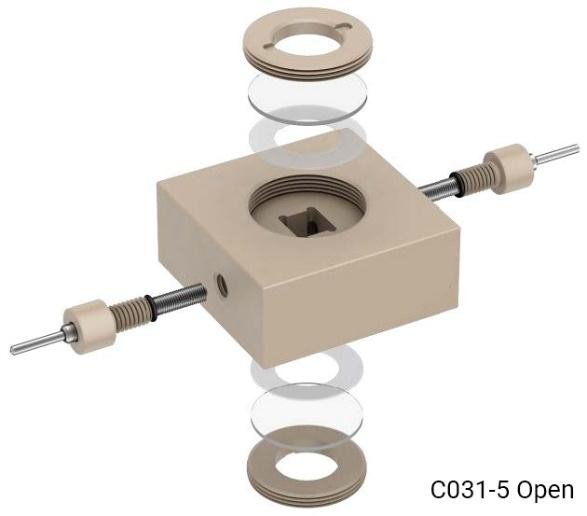

In-situ battery simulation observation cell (Li dendrite) Model: C031-5

Description

In-situ battery simulation observation cell (Li dendrite) Model: C031-5

• The conductive substrate of cell is made of high-purity titanium.
• The cell can simulate Li-ion battery and observe the growth of Li dendrites.
• The optical window of cell is made of sapphire glass, with a transmittance >95%.
• The Lithium sheet size suitable for cell is 10*10mm.

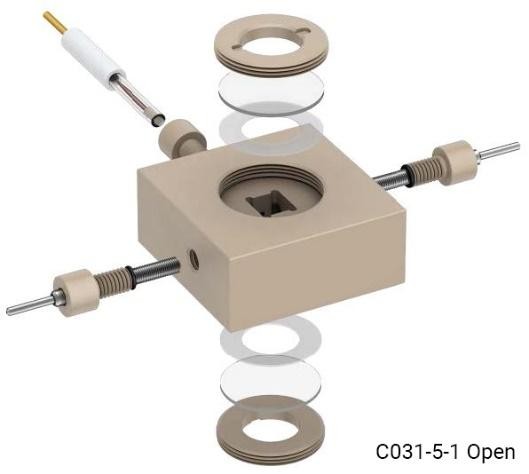

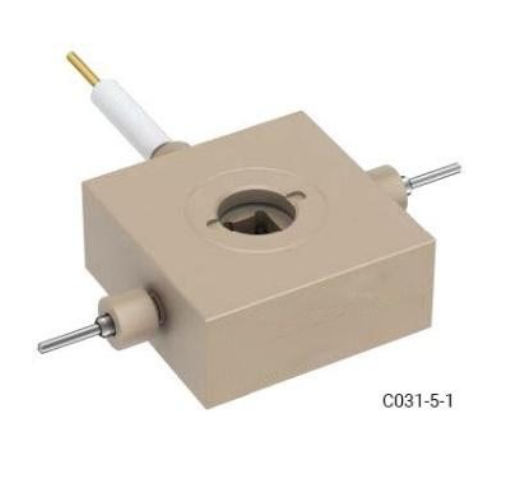

In-situ battery simulation observation cell (Li dendrite) Model: C031-5-1

• The cell has been modified based on C031-5 by adding a reference electrode.
• The conductive substrate of cell is made of high-purity titanium.
• The cell can simulate Li-ion battery and observe the growth of Li dendrites.
• The optical window of cell is made of sapphire glass, with a transmittance >95%.
• The Lithium sheet size suitable for cell is 10*10mm.
