Description
Product Overview

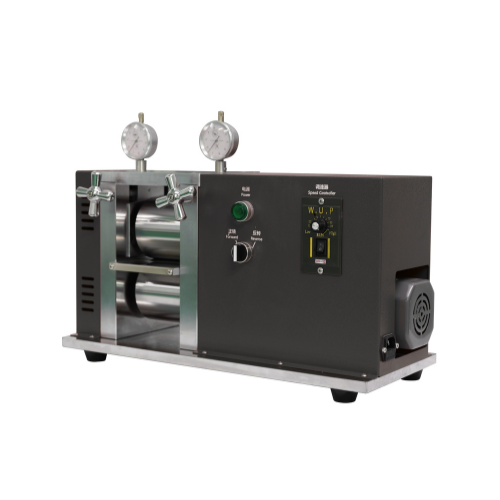

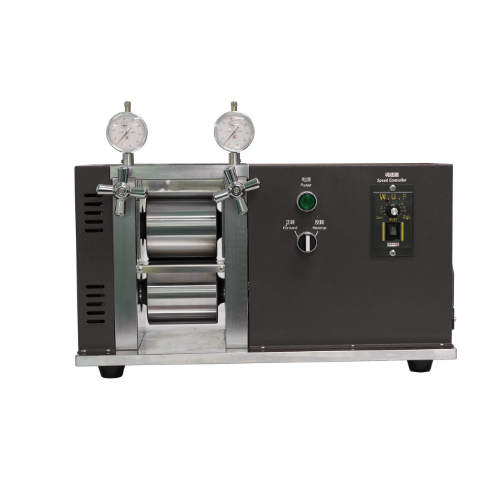

The HS-SG100W is designed for laboratory-scale calendering of lithium battery electrode materials. It is suitable for processing cathode and anode slurries coated on metal foil (such as copper or aluminum), as well as small quantities of precious or non-ferrous metals. The machine achieves precise pressure control to increase electrode density, reduce porosity, and enhance adhesion of the active materials. Its compact design and user-friendly interface make it ideal for flexible laboratory use.
Key Features
- High-precision rollers with surface hardened to HRC62 and anti-rust treated
- Calendering accuracy with roller concentricity tolerance ≤ ±2 μm
- Gap adjustment without shims; high elasticity and precision
- Gear drive mechanism enables synchronized double-roller movement
- Adjustable pressure thickness and rolling speed for better control
- Compact structure, easy operation, and flexible deployment
Technical Specifications
| Parameter | Specification |
| Roller Gap Adjustment | 0–2 mm adjustable |
| Pressure Width | 0–100 mm |
| Roller Diameter | Ø96 mm |
| Roller Surface Hardness | ≥ HRC62 |
| Surface Finish Roughness | ≤ 0.4 μm |
| Roller Alignment | Vertical alignment |
| Voltage & Frequency | AC 220V 50Hz |
| Power | 120 W |
| Feeding Speed | 0–50 mm/s adjustable |
| Dimensions (L × W × H) | 385 mm × 245 mm × 355 mm |
| Weight | 55 kg |
Custom roller materials and dimensions available upon request.
