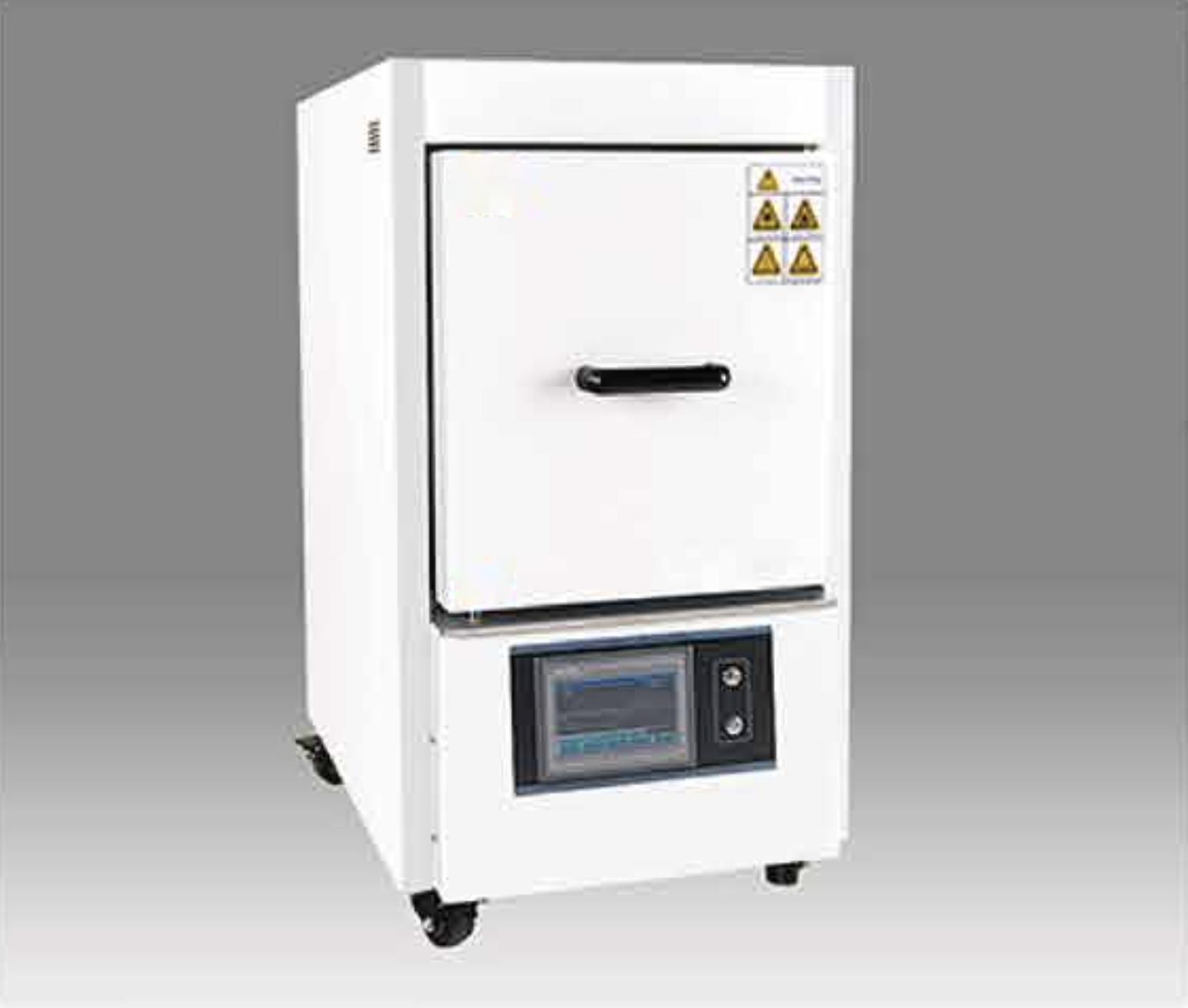

Coated-Steel Ceramic Fiber Muffle Furnace (CFMF 1700°C Series)

Description

Models Available: CFMF-2/17D/P/T, CFMF-4/17D/P/T, CFMF-8/17D/P/T, CFMF-12/17D/P/T, CFMF-16/17D/P/T, CFMF-20/17D/P/T
• Maximum Operating Temperature: 1700°C
• Temperature Control Accuracy: ±1°C
• Chamber Volumes: 2L, 4L, 8L, 12L, 16L, 20L
Precision temperature control up to 1700°C for sintering, melting, elemental analysis, and physical measurements.

Product Features:

• Compact, integrated design with a refined, modern look
• High-purity ceramic fiber insulation for superior thermal efficiency
• Special alloy heating elements enable fast, uniform heating
• Door interlock system ensures safe operation when opening the furnace
• Double-layer insulated housing for efficient heat dissipation and cooler exterior surfaces
• Lightweight chamber reduces thermal mass and saves energy
• Multiple safety features for precise temperature control and reliable operation
• Ideal for sintering, melting, elemental analysis, physical testing, ashing, loss-on-ignition, and sample preparation
• Compliant with GB/T 28849-2012 standards

Safety Features:

• Over-temperature alarm, menu lock, over-temperature protection, heating stops when the door opens, leakage protection.

Specifications:

Parameter CFMF-2/17D CFMF-4/17D CFMF-8/17D CFMF-12/17D CFMF-16/17D CFMF-20/17D
Program Type (P) CFMF-2/17P CFMF-4/17P CFMF-8/17P CFMF-12/17P CFMF-16/17P CFMF-20/17P
Program Type (T) CFMF-2/17T CFMF-4/17T CFMF-8/17T CFMF-12/17T CFMF-16/17T CFMF-20/17T
Max Temperature (°C) 1700
Working Temperature (°C) 1650
Temperature Accuracy (°C) ±1
Heating Rate ≤40 minutes
Exterior Powder-coated steel plate, corrosion and high-temperature resistant paint
Chamber Lining High-purity ceramic fiber
Heating Elements Outer diameter φ22mm, inner diameter φ18mm
Heating Power (KW) 3 6 9 12 15 18
Temperature Control Intelligent PID temperature controller with SSR output
Display (D models) Digital temperature display
Display (P/T models) Digital temperature display, fault alarm, menu lock
Programming Capability (P models) 50 segments, 30 steps per segment
Programming Capability (T models) Multi-level programs up to 18 segments; menu lock; step-hold; max 50 steps
Door Safety Protection Door interlock; heating stops when the door opens
Control Output Options Standard relay output; optional door lock; optional USB data export
Inner Chamber Size (W×H×D mm) 150×150×150 150×150×150 200×200×200 200×300×200 260×300×120 260×300×160
Outer Dimensions (W×H×D mm) 600×720×610 600×720×610 740×860×1120 740×879×1182 740×879×1182 740×920×1285
Chamber Volume (L) 2 4 8 12 16 20
Net Weight (kg) 70/90 90/110 110/130 150/170 175/195 210/230
Power Supply AC220V 50Hz AC220V 50Hz AC380V 50Hz AC380V 50Hz AC380V 50Hz AC380V 50Hz
Optional Accessories Exhaust gas collection device, RS485 communication, printer
