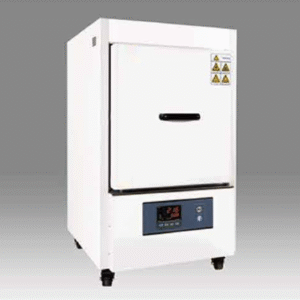

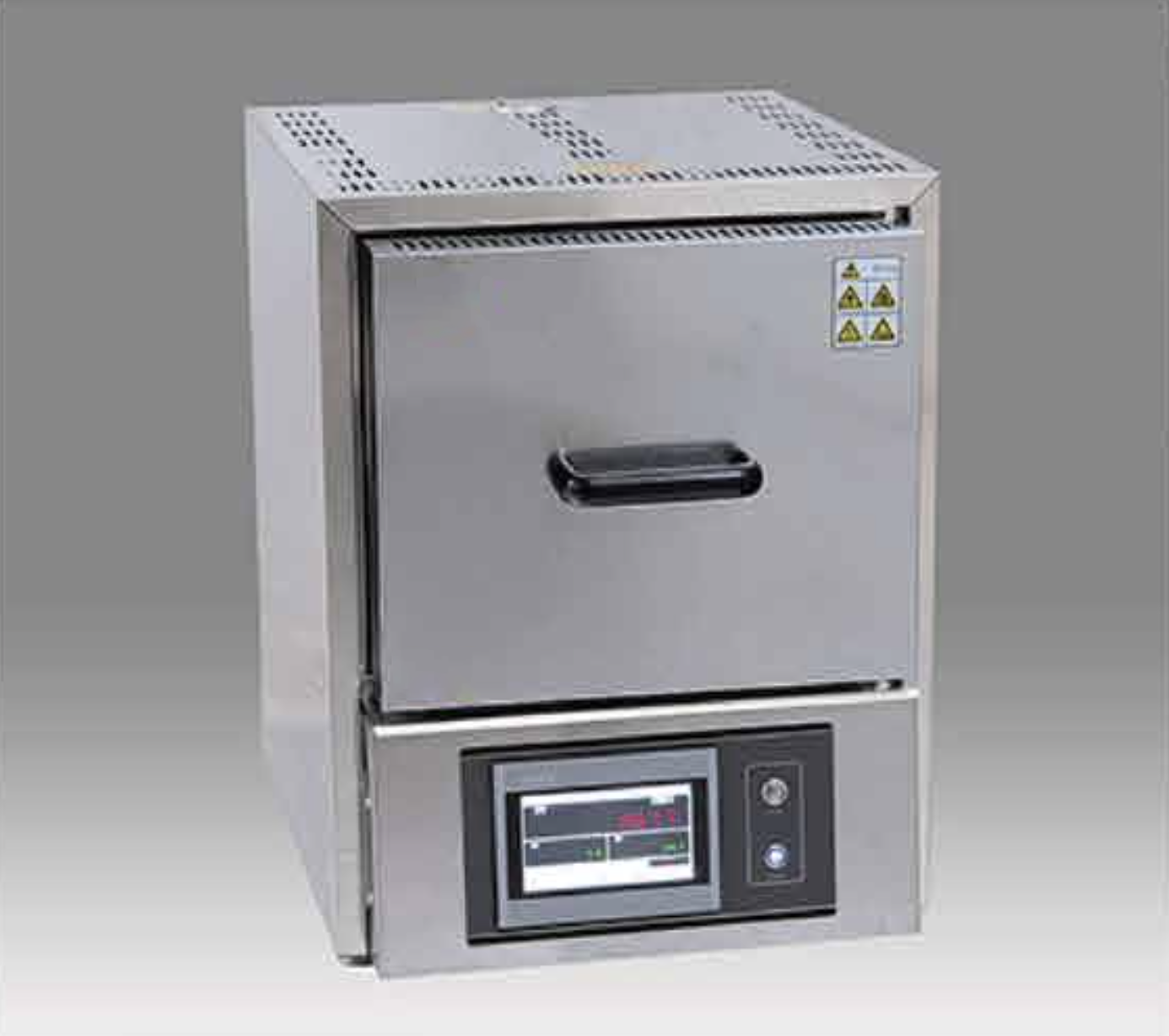

Ceramic Fiber Muffle Furnace (CFMFC 1000°C Series)

Description

Models Available: CFMFC-2/10D/P/T, CFMFC-7/10D/P/T, CFMFC-16/10D/P/T, CFMFC-24/10D/P/T, CFMFC-36/10D/P/T

  • Maximum Operating Temperature: 1000°C
  • Temperature Control Accuracy: ±1°C
  • Chamber Volumes: 2L, 7L, 16L, 24L, 36L

Precision temperature control up to 1000°C for sintering, melting, elemental analysis, and physical measurements.

Product Features:

  • Uses high-purity ceramic fiber insulation; integrated design with compact and refined structure.
  • High thermal efficiency due to imported ceramic fiber insulation, with special alloy heating elements for fast heating and uniform temperature distribution.
  • Door safety interlock ensures safe operation when opening the furnace door.

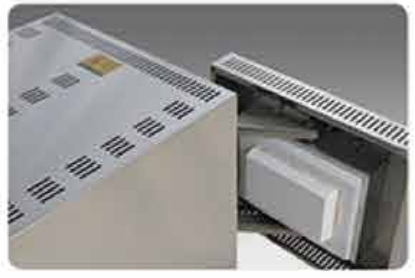

  • Double-layer casing with air cooling to lower external surface temperature.
  • Lightweight chamber with low thermal mass and low energy consumption.

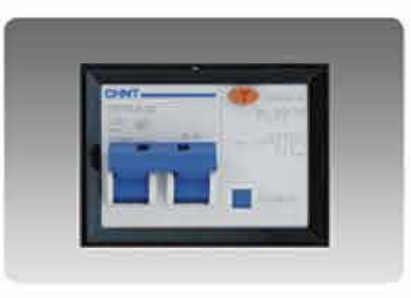

  • Multiple safety protections such as over-temperature protection and leakage protection, ensuring precise control.
  • Suitable for applications including sintering, melting, elemental analysis, physical measurement, ashing, loss-on-ignition, and sample pre-treatment.
  • Compliant with standard GB/T 28849-2012.

Safety Features:

Over-temperature alarm, menu lock function, over-temperature protection, heating stops when door opens.





Parameter CFMFC-2/10D CFMFC-7/10D CFMFC-16/10D CFMFC-24/10D CFMFC-36/10D
Program Type (P) CFMFC-2/10P CFMFC-7/10P CFMFC-16/10P CFMFC-24/10P CFMFC-36/10P
Program Type (T) CFMFC-2/10T CFMFC-7/10T CFMFC-16/10T CFMFC-24/10T CFMFC-36/10T
Max Temperature (°C) 1000
Temperature Accuracy (°C) ±1
Heating Rate ≤30 minutes
Exterior Brushed stainless steel
Chamber Lining High-purity ceramic fiber
Heating Elements OCr27Al7Mo2, three-sided heating
Heating Power (KW) 3 3 6 6.6 10

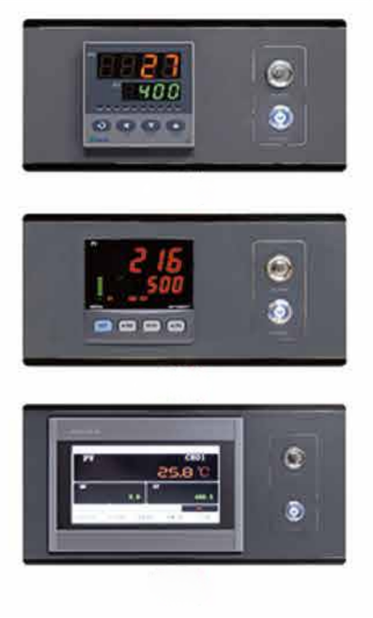

Temperature Control Intelligent PID temperature controller with solid-state relay (SSR) output
Display (D models) Digital display of temperature
Display (P/T models) Digital display of temperature, fault indication, menu lock
Programming Capability (P models) 50 segments, 30 steps per segment
Programming Capability (T models) Multi-level program setting, up to 18 segments; with menu lock and step-hold functions; able to run up to 60 steps
Door Safety Protection Door interlock, heating stops when door is opened
Control Output Options Standard relay output; optional door lock function; optional USB data export
Inner Chamber Size (W×H×D mm) 200×300×120 250×400×120 300×400×200 300×400×300 300×400×300
Outer Dimensions (W×H×D mm) 610×673×683 710×783×783 750×887×810 810×906×810 810×906×810
Chamber Volume (L) 2 7 16 24 36
Net Weight (kg) 60/65 60/65 80/86 90/98 100/110
Power Supply AC220V/13.6A AC220V/17.3A AC220V/27.3A AC380V/10A AC380V/15.2A
Optional Accessories Exhaust gas collection device, RS485 port, printer
